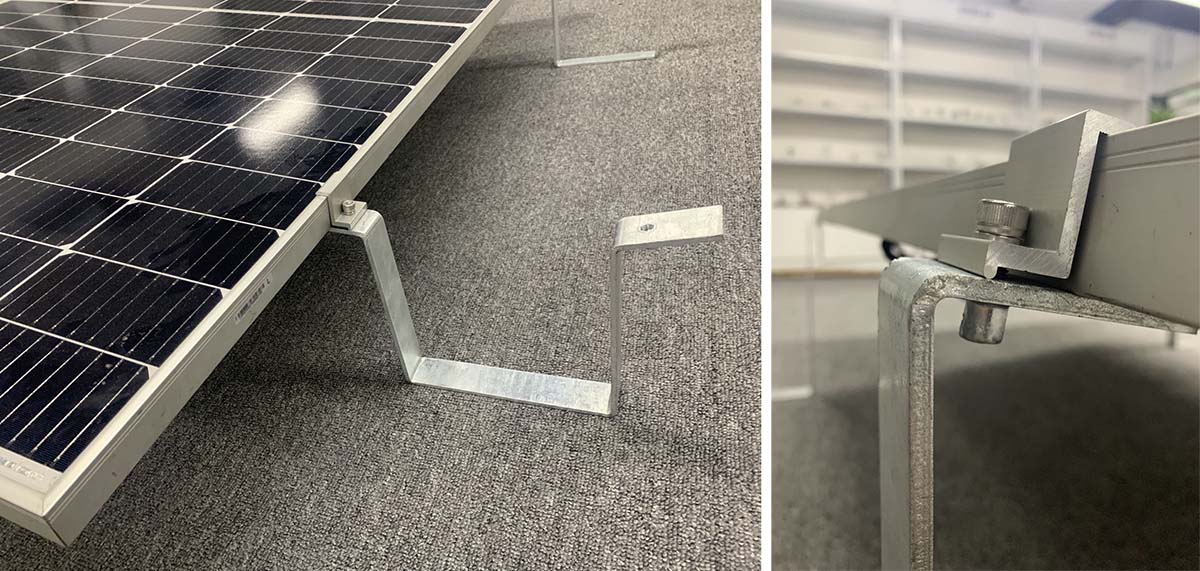

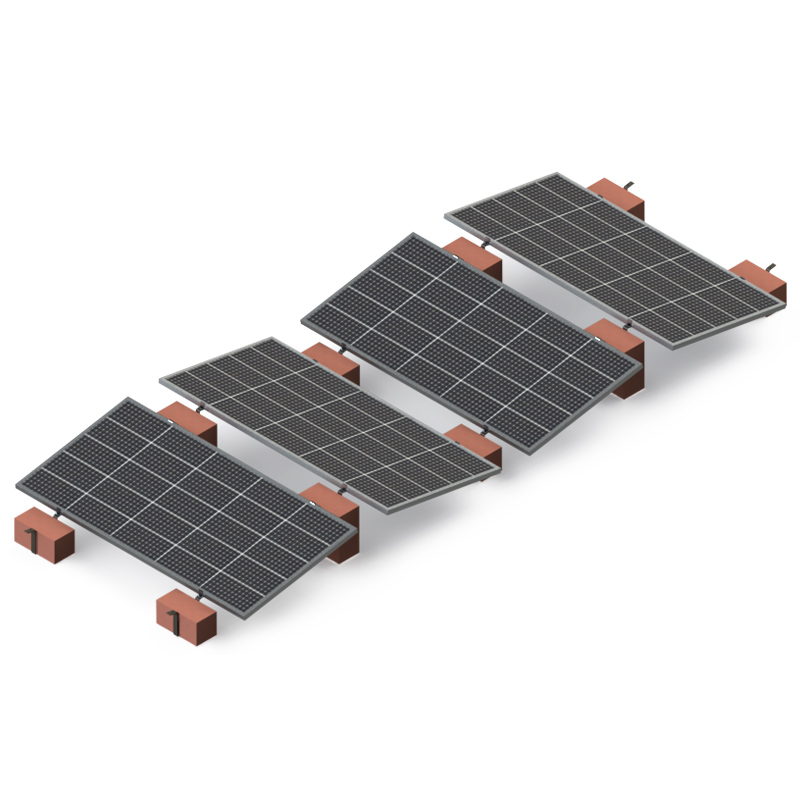

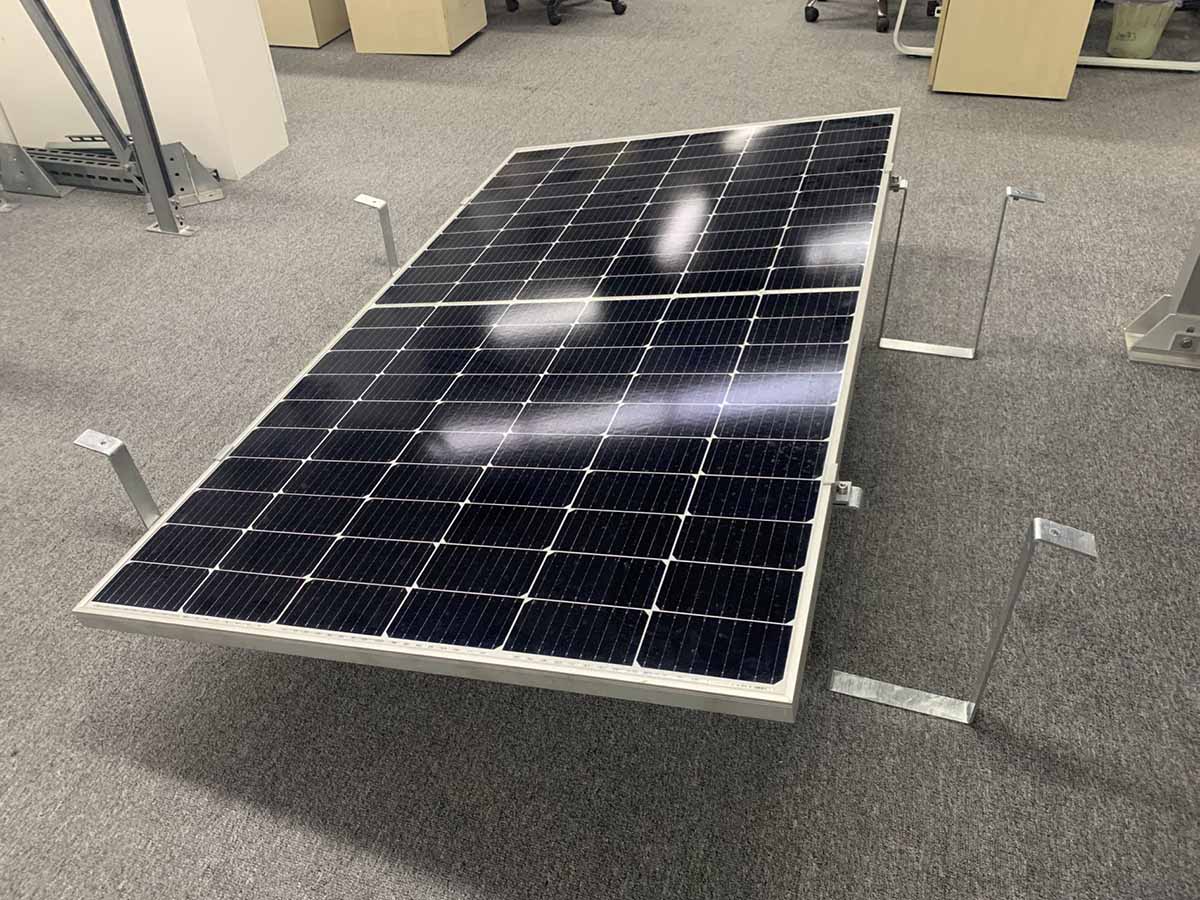

UISOLAR steel ballast mounting is suitable for flat concrete roof, it's made of steel with galvanized zinc surface, anti-corrosion, and without penetrating the roof surface.
Brand:
UISOLARItem NO.:
UI-Steel BallastPayment:
FOB/CIFColor:
silverShipping Port:
xiamen portLead Time：
7-15daysInstallation site:
concrete roofMax. wind speed:
60m/sSnow load:
1.4KN/m²Foundation type:
ConcreteMaterial:
Galvanizing steel
|
Module Angle |
10-60 degrees |
|
Max. Wind Speed |
45m/s |
|
Snow Load |
1.4kN/m2 |
|
Material |
Q235B steel |
Versatility
Available use on the flat concrete roof or flat ground floor.
Flexibility
With flexible title angle designed is well used.
Quick and Easy Installation

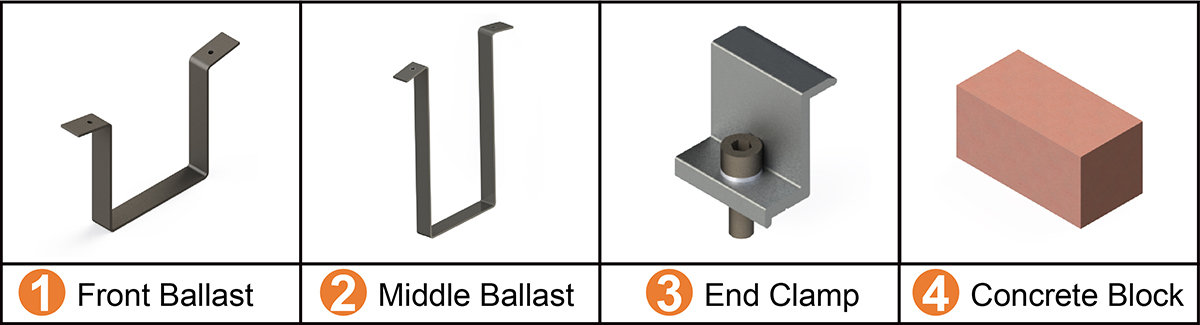

Installation can be completed in a short time with 3 main components.
Strength Solution
All design can be strong enough after strength analysis.
Q1: Are you a Factory?
A: Yes. We are a factory who is specialized in the producing the solar mounting kits in Xiamen, China. Our goods including solar mounting components, also the whole mounting system, including roof mounting, Ground Mounting, Carport, Solar Farm and also the OEM service.
Q3: Can I get sample before we place the order ?
A: Yes. Samples can be avaible anytime if you need.
3. If for the whole mounting solution, to make sure can provide the most appropriate quotation, some more information about the project will be needed:
1) Solar panel qty. and dimension (LxWxT) of the panel
New Adjustable ballast mounting is suitable for flat Concrete roof . Aluminum structure can adjust easily as per the request. No penetration to the roof, all the solar panel will connect as a whole part and increase the strength. Adjustable bracket range is 10-35 deg.
New Aluminum ballast mounting is suitable for flat Concrete roof. Aluminum structure don't need penetrate to the roof, all the solar panel will connect as a whole part and increase the strength. Adjustable bracket range is 10-35 deg.
The Adjustable triangle solar brackets is more versatile than traditional ballast mount on flat roof installation for solar panel brackets. It can be installed penetrate into concrete roof and tin roof. It can be changed the title angle according to the needs of projects. Fold design allows for easy transportation, cost-effective warehousing and easy mounting.
The fixed triangle solar brackets can be pre-assemble and easy installed. It can be strong with triangle shape. It is wide use and can be installed on concrete roof and tin roof.
UISOLAR MAC steel ballasted mounting brackets are suitable for flat concrete roofs. Made from MAC steel, which is a zinc-aluminum-magnesium alloy-coated steel, not only offer a price advantage but also ensure the strength of the mounting brackets.
Concrete Roof mounting is designed for the Flat concrete Roof and Ground Mounting for one panel per array. Any Clearance height from the panel and to the ground will be easy to come true to get better heat dissipation. None Penetration to the roof.
Applicable to corrugated or trapezoidal iron roofs. (1)The bracket is fixed to the roof with screws and is usually equipped with a rubber gasket at the bottom to ensure waterproofing. It can be directly connected to the photovoltaic track and is easy to install. (2) Customized trapezoidal bracket Designed for trapezoidal iron roofs, it can accurately match the trapezoidal corrugations of the roof. There is a special waterproof rubber pad at the bottom of the bracket, which ensures a firm installation and excellent waterproof performance.
Nuts are usually matched with bolts. Material: Aluminum 6005-T5, SUS304 and Carbon steel
Solar flashing is a component used in the installation of solar panels on rooftops. It is designed to protect the roof and the solar panel system from water infiltration while ensuring a secure and weathertight seal. It plays a critical role in protecting the building and the solar system from water damage, ensuring the longevity and effectiveness of the solar energy system.
To ensure safety , solar project with fence more durable and safer. To prevent accidents, the fence can prevent children entering to causing accidents.
Concrete Roof mounting is designed for the Flat concrete Roof and Ground Mounting for one panel per array. Any Clearance height from the panel and to the ground will be easy to come true to get better heat dissipation. None Penetration to the roof.
UISOLAR frameless solar clamps are made of Aluminum 6005-T5 & EPDM and used for the framless solar panel installation. It's approved by First Solar & Canadian Solar & JA Solar. Thin Film Clamps especially for: 1.First Solar series 4 Modules 2.Canadian Solar CS6X-P-FG 3.Trina Solar Duomax TSM-PEG14. 4. JA Solar 5. Other panel with the thickness 4~9mm
Universe Solar(UISOLAR) is a high-tech enterprise specializing in the development,manufacturing and marketing of PV mounting. With our top quality and service, UISOLAR mountings are welcomed by most of the installers, distributors, and EPC ect. all over the world.
