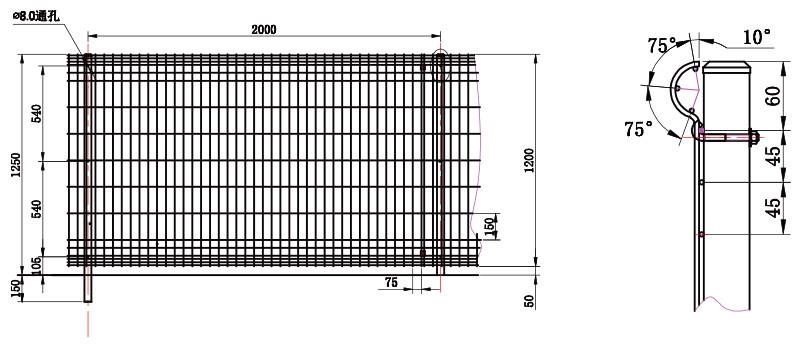

Solar Half Circle Fence

Solar Half Circle Fence

To ensure  safety, solar project with fence more durable and safer.

To prevent accidents, the fence can prevent children entering to causing accidents.

  • Brand:

    UISOLAR
  • Item NO.:

    Solar Half Circle Fe
  • Installation site:

    Open field
  • Max. wind speed:

    60m/s
  • Snow load:

    1.4kn/m2
  • Foundation type:

    Ground screw
  • Ground clearance:

    According to your need.
  • Material:

    steel
  • Product Details

Solar fencing system



solar fencing

solar fencing system


Color

Green, white, black, gray

Surface

Dip coating , Hot galvanizing

Bolt material

Steel

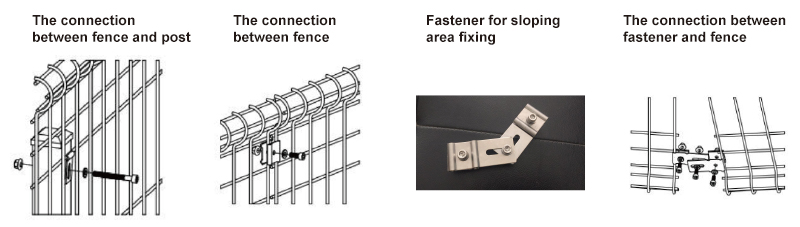

Connection between fence and post

Connect with fastener after welded

Foundation

Ground screw, concrete foundation, pile in type

Wire diameter

3.5mm, 4.0mm/75*150mm

Post

Diameter: 38mm,48mm

Thickness: 2.0mm

Fence size

Width 2.0mm height: 1.2m, 1.5m, 1.8m


Fence height

Ground screw length (pile in type)

ground screw length (ground screw foundation)

Pile in depth (pile in type)

Pile in depth (ground screw foundation)

Mesh

H800

1100

1000

300

200

75*150

H1000

1300

1200

300

200

75*150

H1200

1500

1400

300

200

75*150

H1500

1800

1700

300

200

75*150

H1800

2100

2000

300

200

75*150



Solar Electric Fence

solar racking system

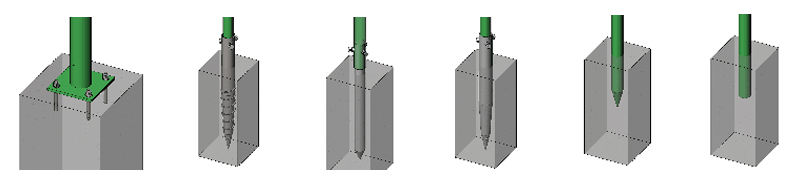

Six type foundation for the install

Solar Racking


solar fencing


ground mount solar


solar fencing system
