extruded aluminum solar panel railings

extruded aluminum solar panel railings

UISOLAR rail included two types, one is solar roof rail, another is solar ground rail. Roof rails are used in roof mounting. Ground rais are used in ground mounting.  They are made of extruded anodized aluminum and it can be made standard length and customized length . It has silver and black design. These rails are applied in commercial and residential  solar system.
  • Brand:

  • Item NO.:

    UISOLAR Rail
  • Product Origin:

  • Color:

  • Shipping Port:

    xiamen port
  • Lead Time:

  • Max. wind speed:

  • Material:

  • Standards:

    AS/NZS1170, JISC8955:2017
  • Product Details

Solar Roof Rail


Item No.



UISOLAR 1# rail



UI-R1-2100mm /3100mm /4200mm / Customized length

Anodized for Silver / Black

UISOLAR 2# rail



UI-R2-2100mm /3100mm /4200mm / Customized length

UISOLAR 4# rail



UI-R4-2100mm /3100mm /4200mm / Customized length

UISOLAR 6# rail



UI-R6-2100mm /3100mm /4200mm / Customized length

UISOLAR 13# rail



UI-R13-2100mm /3100mm /4200mm / Customized length

 UISOLAR rail splice

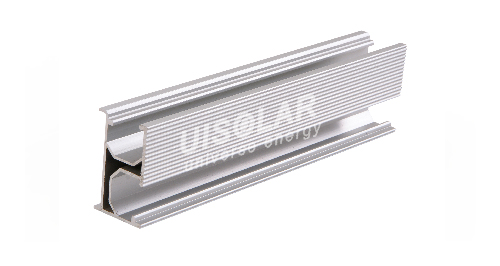

            UISOLAR 1# rail                          UISOLAR 2# rail                        UISOLAR 2# black rail                            UISOLAR 4# rail

mounting rails for solar panelssolar rail mountsolar roof rail、 Solar Aluminium Rail

            UISOLAR 6# rail                          UISOLAR 13# rail                          UISOLAR Rail splice

solar aluminum rail

With so many types roof rail, we can choose different rail for different requirements.

Rail 2 & rail 13 are our normal rails. It can meets normal requirements.

Other types can offer higher request, like higher wind speed .

 Solar ground Rail


Item No.


UISOLAR 5# rail


UI-R5-2100mm /3100mm /4200mm / Customized length

Anodized for Silver /  Black

UISOLAR 5A# rail


UI-R5A-2100mm /3100mm /4200mm / Customized length

UISOLAR 5B# rail


UI-R5B-2100mm /3100mm /4200mm / Customized length

UISOLAR 15# rail


UI-R15-2100mm /3100mm /4200mm / Customized length

UISOLAR 11# rail


UI-R11-2100mm /3100mm /4200mm / Customized length

 UISOLAR rail splice


200mm / 300mm

                       UI-R5                                             UI-R5A                                            UI-R5B

Solar Mounting RailsSolar Panel Rail

                        UI-R15                                             UI-R11                                          UI-R5B-SP

solar mounting railsolar pv railssolar pv rails


install rails rail installation
