Fixed Simple Triangle Solar Brackets
The Fixed simple triangle solar brackets is cost-effective. It can be installed penetrate into concrete base for solar panel mounting. Fold design allows for easy transportation, and easy mounting.

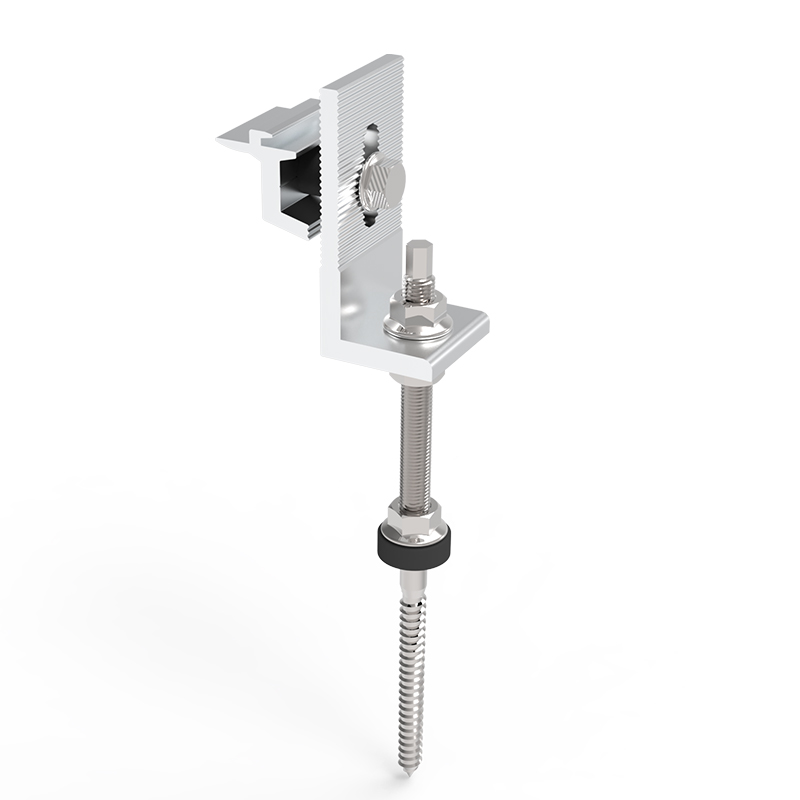

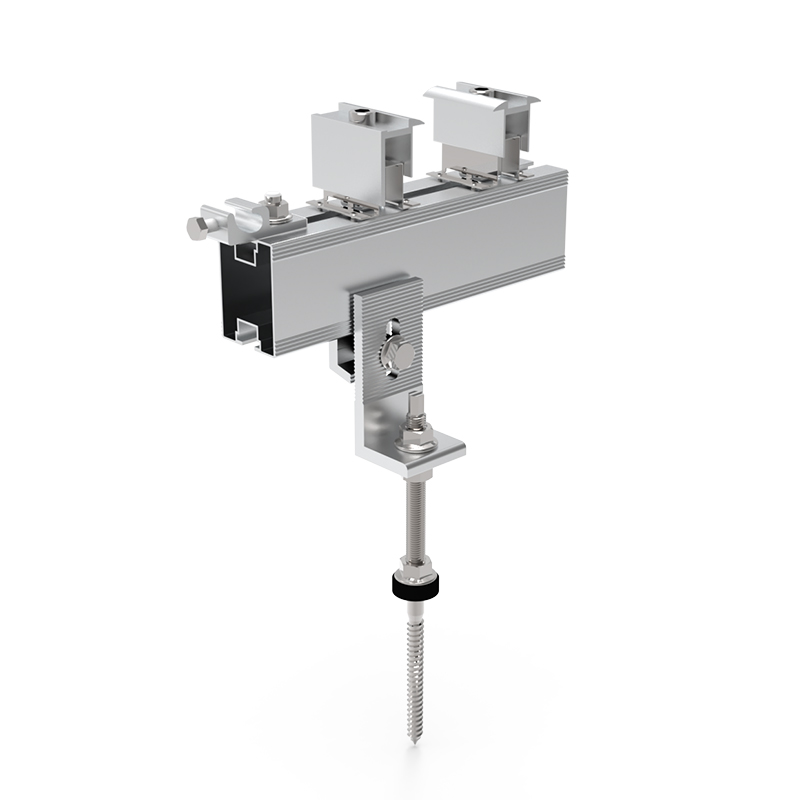

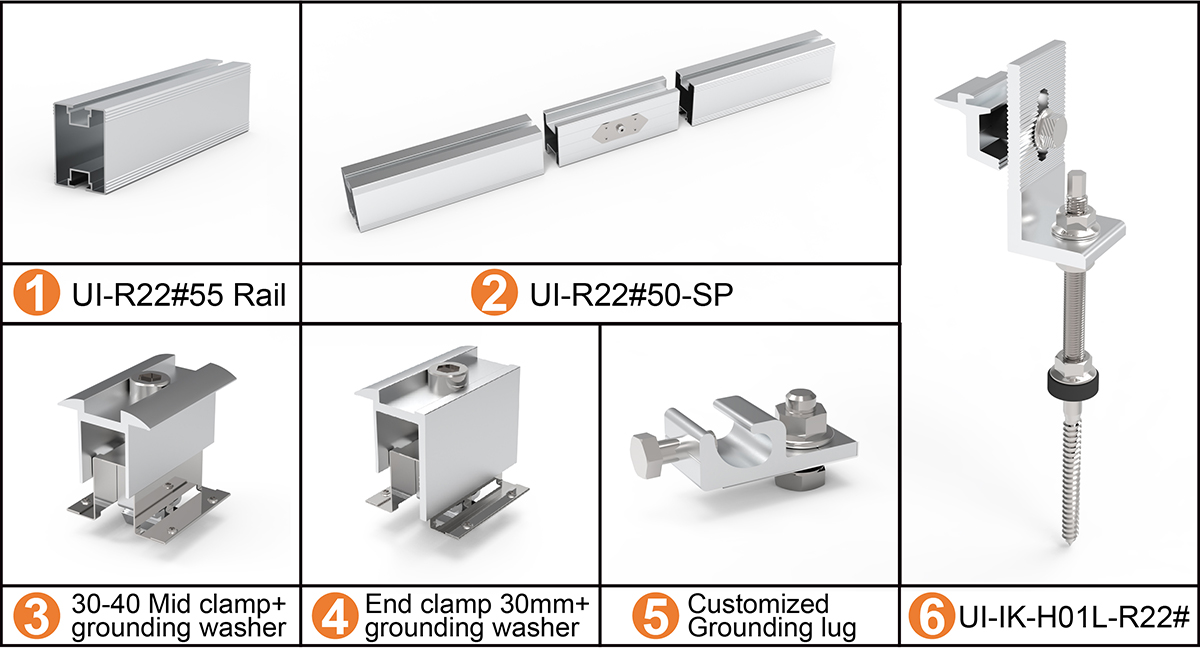

The R22#55 rail, hanger bolt, and L-feet combination is a great choice for installing solar panels because it's both strong and easy to set up.
It suitable for corrugated or trapezoidal roof.
Brand:
UISOLARItem NO.:
Hanger bolt mountingColor:
Silver or blackShipping Port:
Xiamen ChinaLead Time：
20 daysInstallation site:
RoofMax. wind speed:
60m/sSnow load:
1.5KN/M^2Foundation type:
Concrete blockMaterial:
AluminumStandards:
AS/NZS1170,JISC8955:2017Hanger bolt mounting kit
|
Installation Site: |
Roof |
|
Angle: |
10-60 deg |
|
Max wind speed load: |
60m/s |
|
Snow load: |
1.5KN/M^2 |
|
Materail: |
Aluminum |

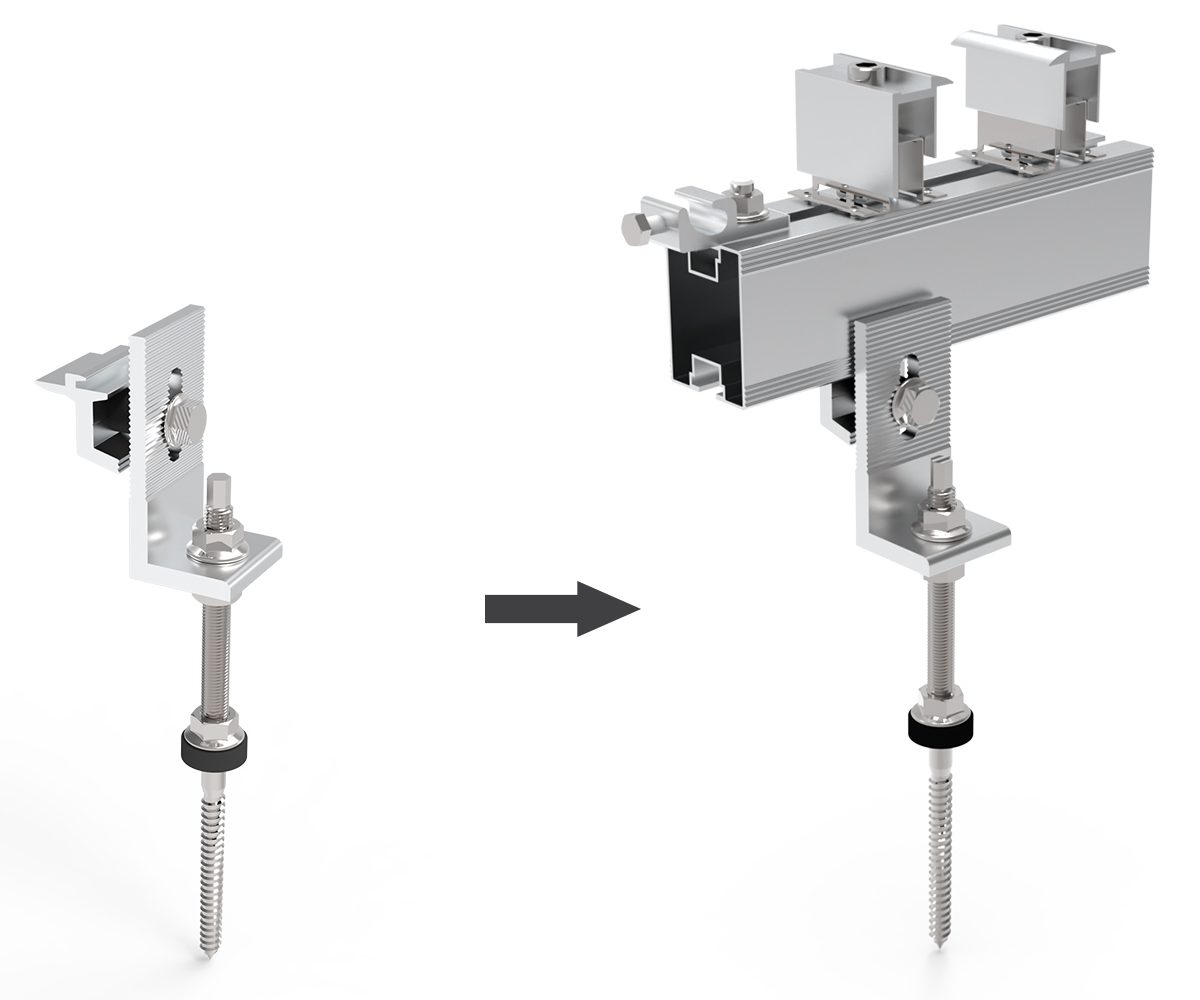

Easy Installation: The process is straightforward. You just need to fix the hanger bolt to the roof, attach the
L-feet, and then place the R22#55 rail on top of the L-feet.
Versatile: This system works well with different types of metal roofs, whether they're corrugated or trapezoidal.
Durable: These parts are made from high-quality materials that resist corrosion and last a long time.
Weather-Resistant: It's designed to keep out water, so even in bad weather, the solar panels stay protected.
The Fixed simple triangle solar brackets is cost-effective. It can be installed penetrate into concrete base for solar panel mounting. Fold design allows for easy transportation, and easy mounting.
The solar rooftop mount system suits for metal trapezoidal roof which using hook and screws as rail to save cost.
The new type roof mounting system can fit well on standing seam metal roof sheet and is a very economical solution.
The solar roof mounting solution used for pitched metal roof, using rail and L shape feet to fix the panel. Different types screw would be used basing on the beam material and structure.
The system used for metal roof, using clamp hook to fix the solar panel. Different types screw would be used basing on the beam material and structure.
UISOLAR rail free mount is designed for trapezoidal metal roof, and enable you to install without railing.It can be flexible for both landscape and portrait laypout plan.
Solar Mounting Bracket-Tin roof kit, designed to provide a robust and efficient solution for solar panel installation on rooftops. This innovative bracket system is crafted from high-quality materials, ensuring durability and resistance to harsh weather conditions.Easy installation and High-Strength Construction.
Solar flashing is a component used in the installation of solar panels on rooftops. It is designed to protect the roof and the solar panel system from water infiltration while ensuring a secure and weathertight seal. It plays a critical role in protecting the building and the solar system from water damage, ensuring the longevity and effectiveness of the solar energy system.
Aluinum Barricade is designed to protect workers from falling during the installation and maintainance. Aluminum material is light and cost little weight to the roof.
The Solar Bird net is designed to keep birds and rodents from getting under solar panels to damage the roof and electrical wiring. This system protects panels by creating a physical barrier that excludes pests from solar panel mounting areas. The system fix to the solar panels without damaging the solar panel or voiding the panel warranty.
Ground Mounting 90deg Vertical ground The Ground mounting have highly corrosion resitant as the hot dip galvaning average layyer thickness is more than 80um. 1. It can applied to concrte block and piling foundation. 2. Easy to clean solar panels 3. The structure is simple and the bracket is fixed by bolts and pressure blocks.
UISOLAR rail included two types, one is solar roof rail, another is solar ground rail. Roof rails are used in roof mounting. Ground rais are used in ground mounting. They are made of extruded anodized aluminum and it can be made standard length and customized length . It has silver and black design. These rails are applied in commercial and residential solar system.
