Rail -Free Roof Mounting UI-SS07

Rail -Free Roof Mounting UI-SS07

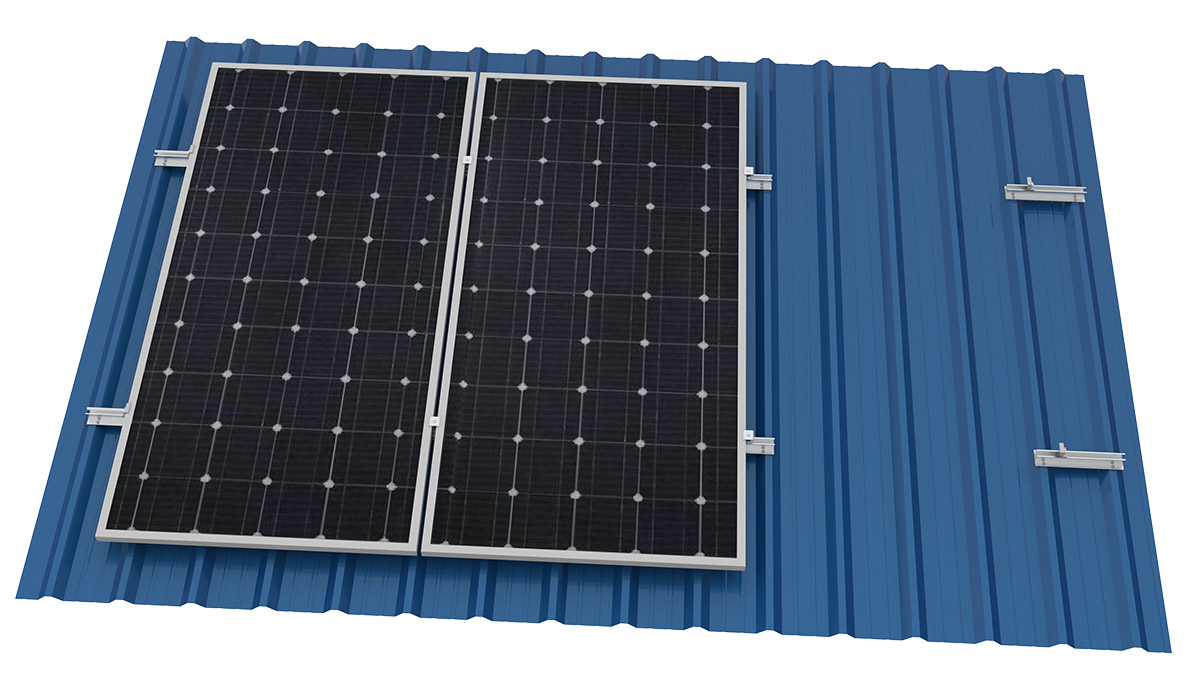

UISOLAR rail free mount is designed for trapezoidal  metal roof, and enable you to install without railing.It can be flexible for both landscape and portrait laypout plan.

  • Brand:

    UISOLAR
  • Item NO.:

    UI-SS07
  • Payment:

    T/T, L/C
  • Price:

    $0.005/watt
  • Product Origin:

    Fujian, China
  • Color:

    Silver
  • Shipping Port:

    Xiamen China
  • Lead Time:

    15 days
  • Product Details

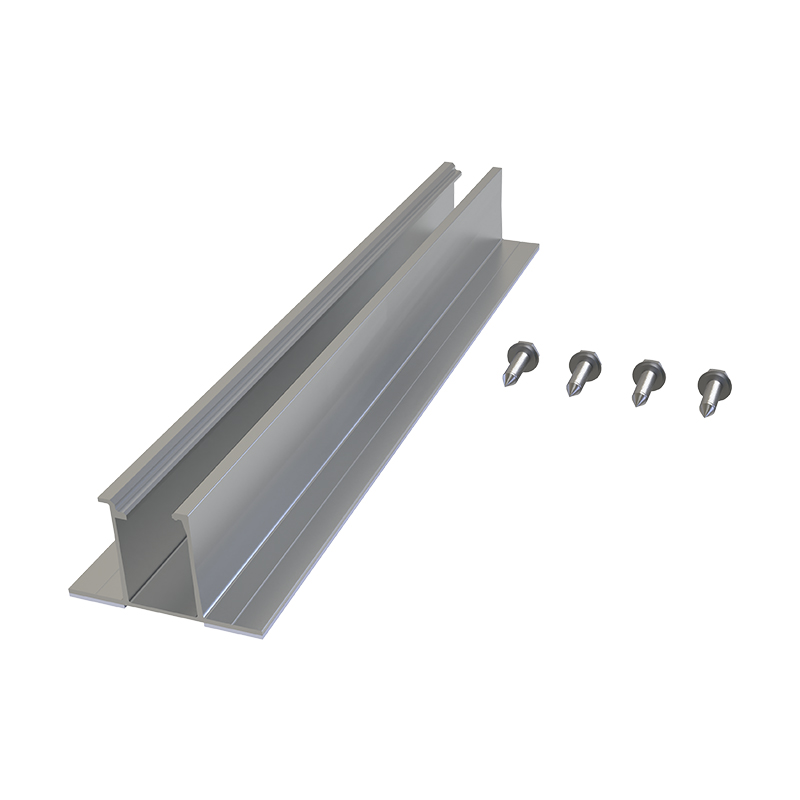

 Rail -Free Roof Mounting UI-SS07





• Application on the trapezoidal roof sheet
• Both Landscape& Portrait orientation
• Made of high class material AL6005-T5
• Lower Costing & Fast fixing
• Fix on ribs only ,no need drill purlin
• Pre-assembled with EPDM pad

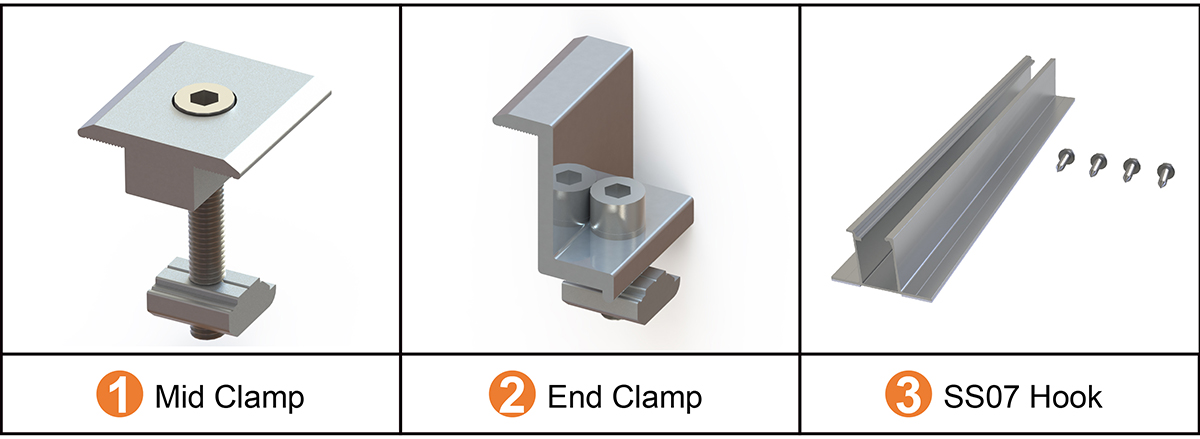

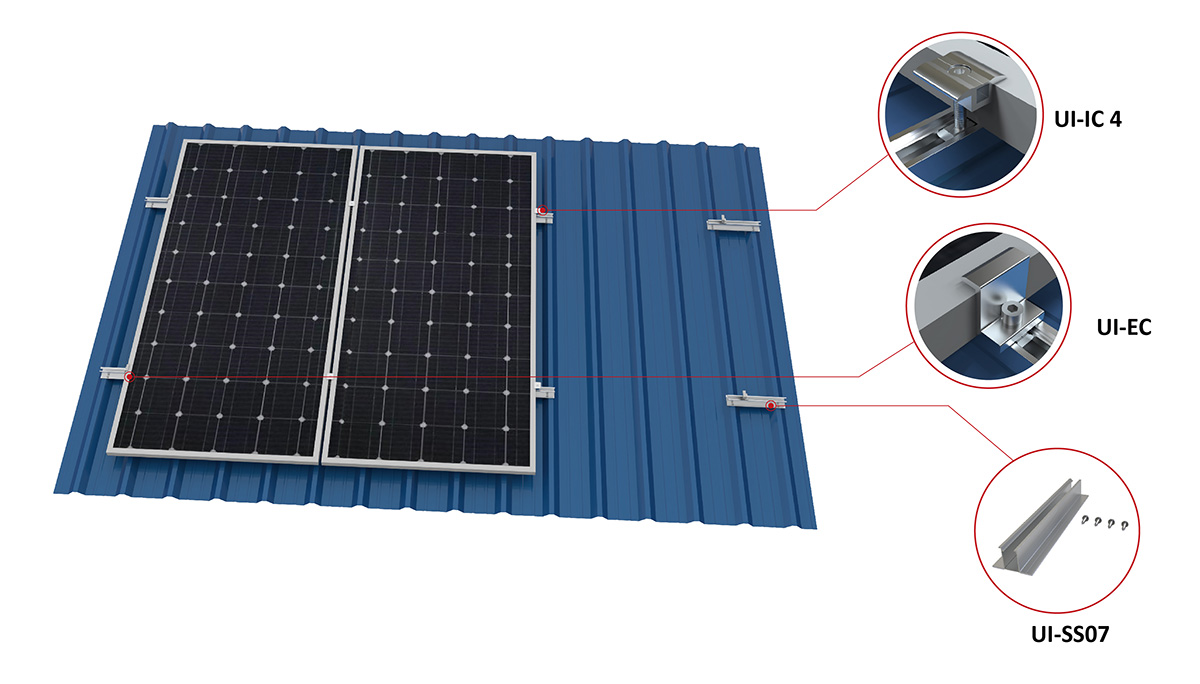

Details show as below :
