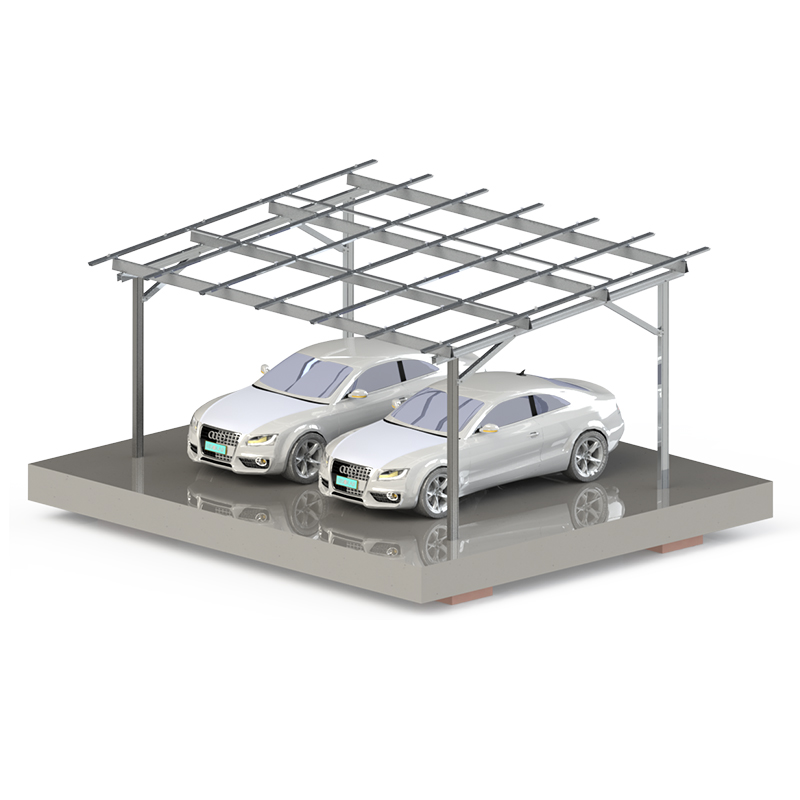

Solar Carport Mount Structure Waterproof Windproof
The aluminum solar carport is updated with waterproof and windproof function and can be used for commerical and residential areas.
BIPV Waterproof Carport Solar Mounting System is a highly pre-assembly system which is suitable for both residential and commercial projects.
While protecting the car from rain, snow, wind and frost damage, it can also provide power generation benefits, which can power the electric cars.
The whole structure is made of aluminum and fastener will be stainless steel .
The capacity can be customized according to customer's requirements.
OEM is acceptable.
Brand:
UISOLARItem NO.:
BIPV Waterproof CarpPayment:
FOB, CIF, CNFMarket Price:
$100Product Origin:
ChinaColor:
SilverShipping Port:
XiamenLead Time：
25daysInstallation site:
flat groundMax. wind speed:
60m/sSnow load:
1.4KN/M2Foundation type:
concrete foundationMaterial:
AluminumBIPV Waterproof Carport Solar Mounting System
|
Installation Site |
Landscape /portrait |
|
Foundation |
Concrete base |
|
Panel tilt angles |
0-15degrees |
|
Protection |
Q235B Hot dip galvanized (80um) |

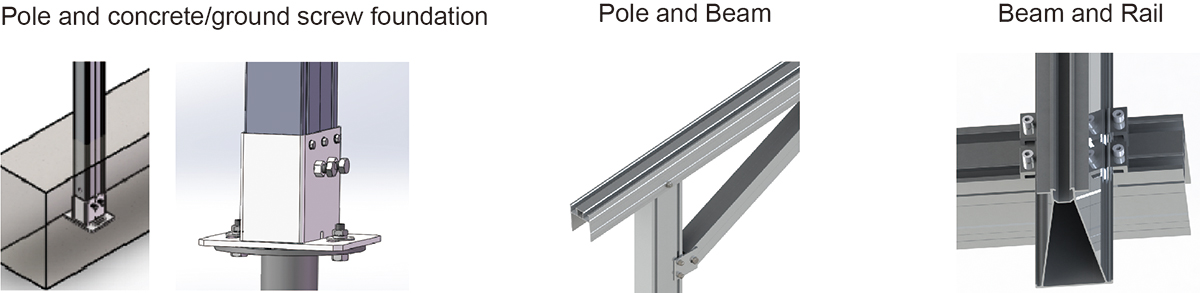

Connection Details
Features

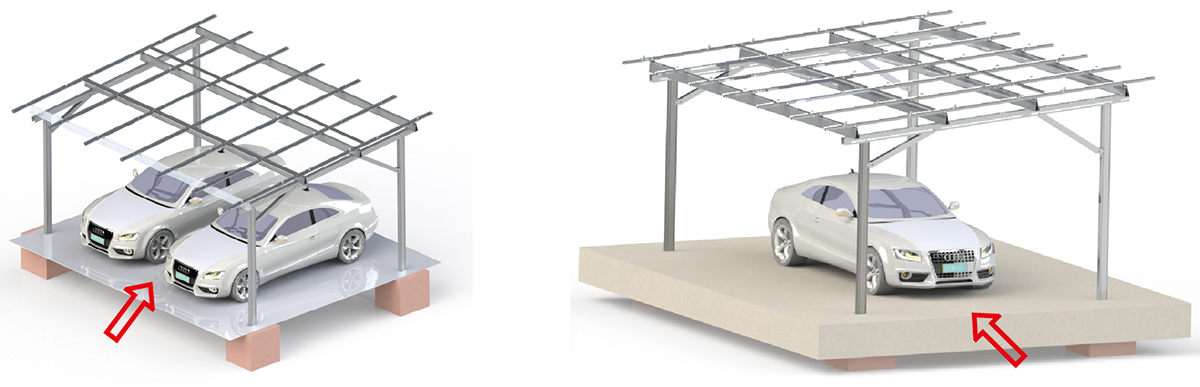

Can park from all directions

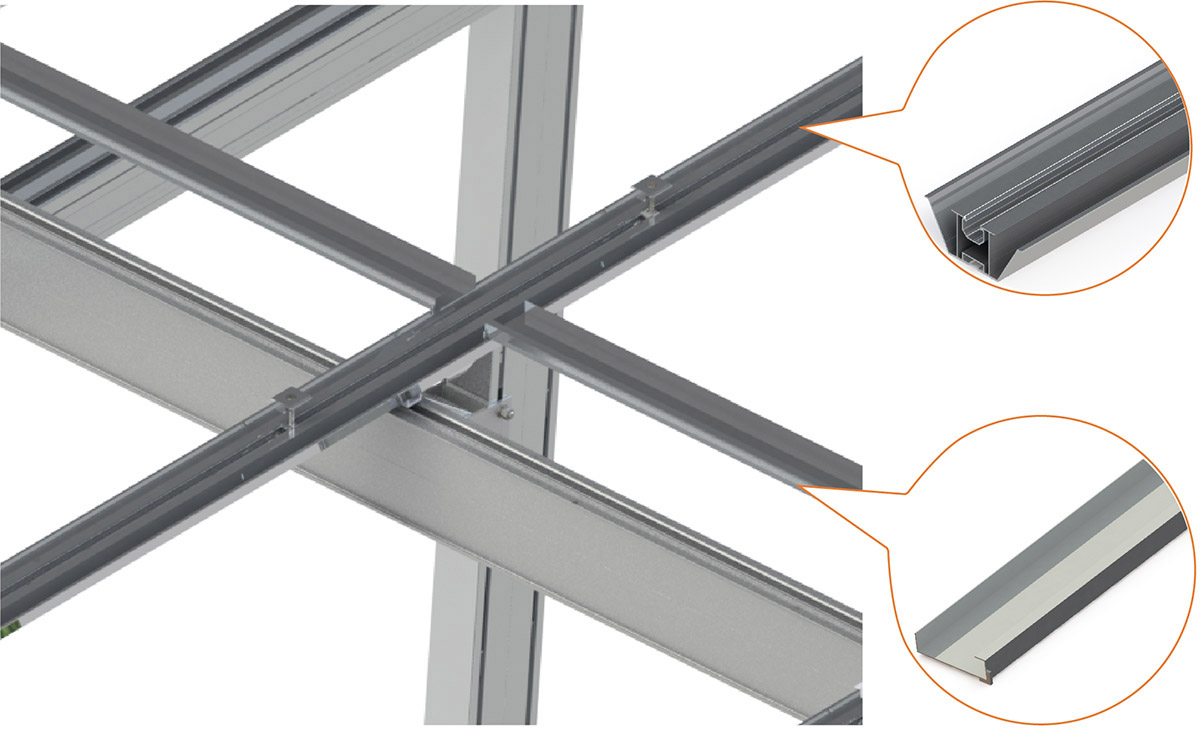

Waterproof solutions
Install the horizontal drainage pipe and margin plate to drain away water.
Structural waterproof, no need for additional installation of waterproof sheet.
Q1: Are you a Factory?
A: Yes. We are a factory who is specialized in the producing the solar mounting kits in Xiamen, China. Our goods including solar mounting components, also the whole mounting system, including roof mounting, Ground Mounting, Carport, Solar Farm and also the OEM service.
Q3: Can I get sample before we place the order ?
A: Yes. Samples can be avaible anytime if you need.
3. If for the whole mounting solution, to make sure can provide the most appropriate quotation, some more information about the project will be needed:
1) Solar panel qty. and dimension (LxWxT) of the panel
The aluminum solar carport is updated with waterproof and windproof function and can be used for commerical and residential areas.
The four poles carport is easy installed and save space which can be used for commerical and residential installation.
The solar carport can be used for commerical and residential areas to protect cars from rain and snow and save electricity cost.
The UISOLAR Carport can be both for waterproof or no need waterproof. The Aluminum Pile solar carport have more space for cars and easier to do parking. Different base( Concrete base and ground screw base) can be workable.
1. Remove stagnant water automatically 2. Increase power generation to prove the service life of solar panels. 3. Easy installation. Fasten the frame of the solar panel automatically. Suitable for frame thick of solar module: 30 mm, 35 mm, 40 mm 4. Solar Panel Cleaning Clip is a rectangular self-stick polymer strip containing a water-inducing agent. stick to the frame of the photovoltaic module, there is no need to make adjustments to the components. In case of rain, the sludge water collected at the bottom of the frame is automatically directed over the frame and discharged and discharged in the stage of sludge water formation! 5. Through tests, it was found that the water accumulation and dust accumulation along the boundary of the components of the sludge belt was essentially eliminated after the installation of the water guide adhesive, the power generation gain increased from 2% to 10%. 6. Stainless steel material, long service life, no need for frequent replacement.
1. Highly pre-assembing make the installation to be easy and quick 2. Al 6005T5 and SUS304 fastener bols are used to get a better anti rusted. 3. Can be flexible for any thickness of panels, no need to change diffent panel clamp.
