Solar Ground Mounting Brackets System Structure
UI SOLAR ground ground solar mount usually applicaple to the open field ,not only for residential project ,but also for the big commerial project.
Brand:

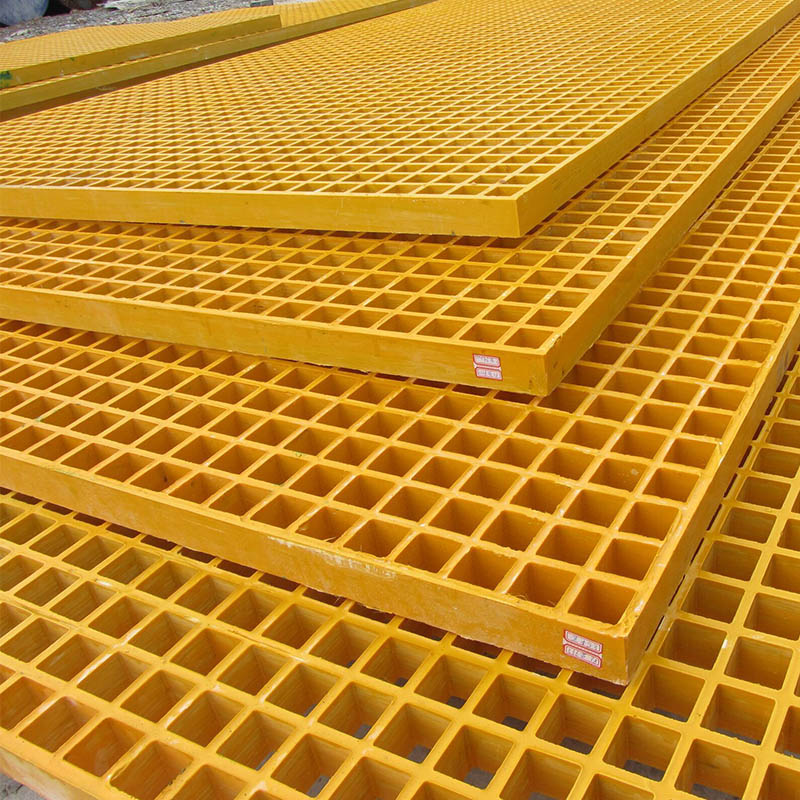

UISOLARWalkway Gratings
Material : FRP, Tough unsaturated polyster resin 196

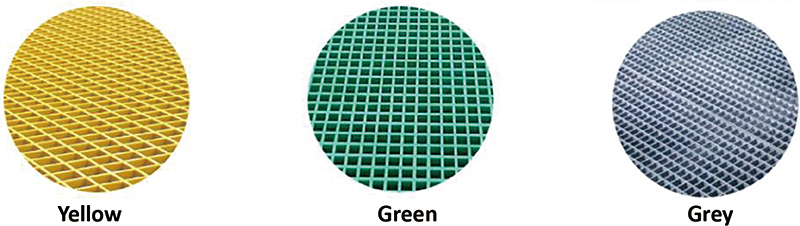

Color :
Warranty : 1year, 5years Service Life

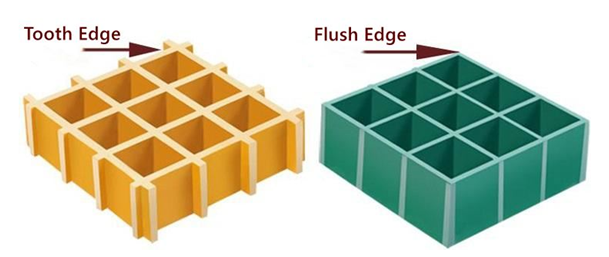

Type : Flush Edge and Teeth Edege
Regular dimension for flush edge type:
Mesh (MM)
Thickness(MM)
Size (WXL/PC) MM
38X38
25
1220X4040
;955X4040; 1220X3660
45X45
25
1220X4025;
1000X4025; 1220X2440; 1220X3660
40X40
30
1220X3660;
1220X4040; 1220X2440
Note: If Tooth edge type is accepted , then the size can be customized , and can be cut by yourself.

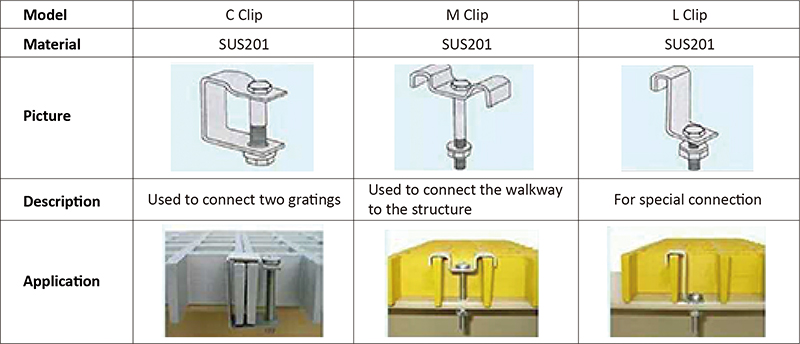

Walkway Fittings

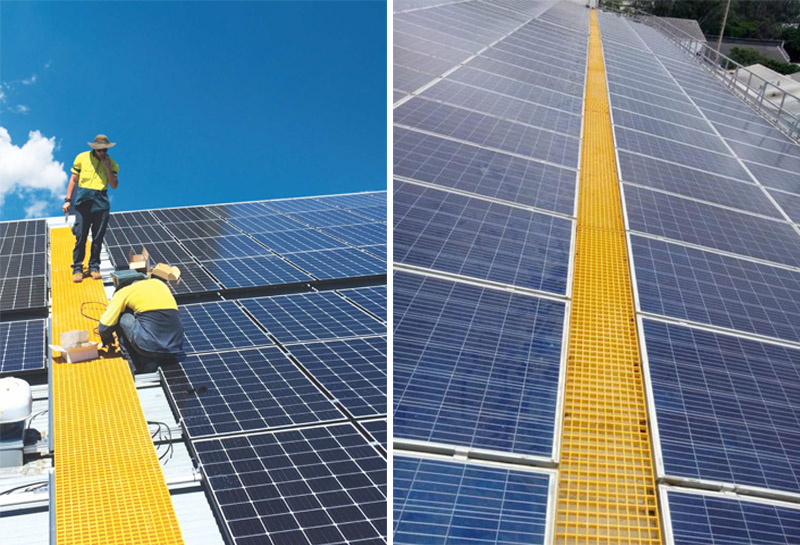

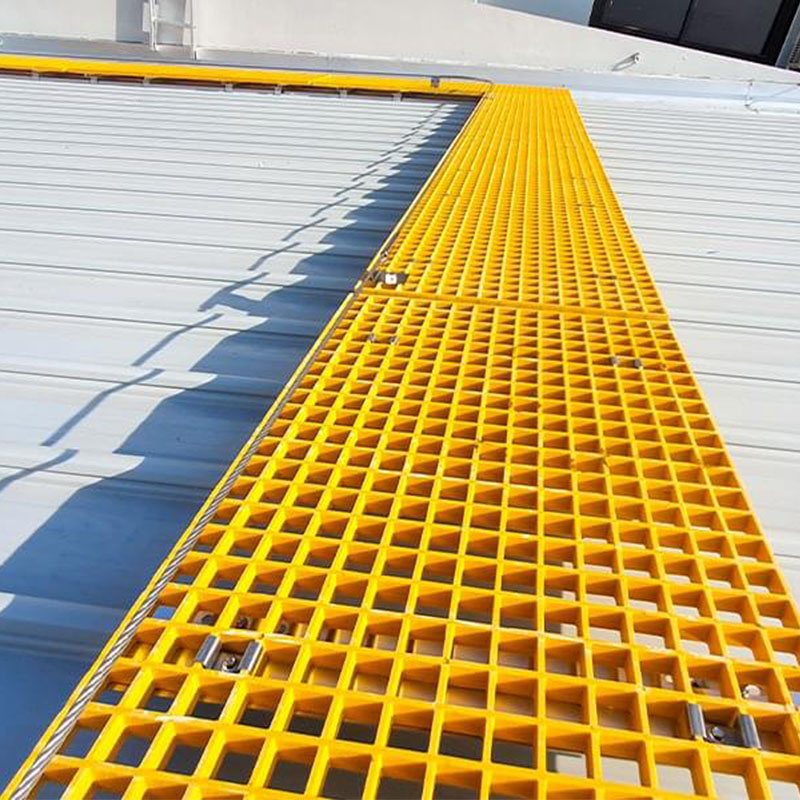

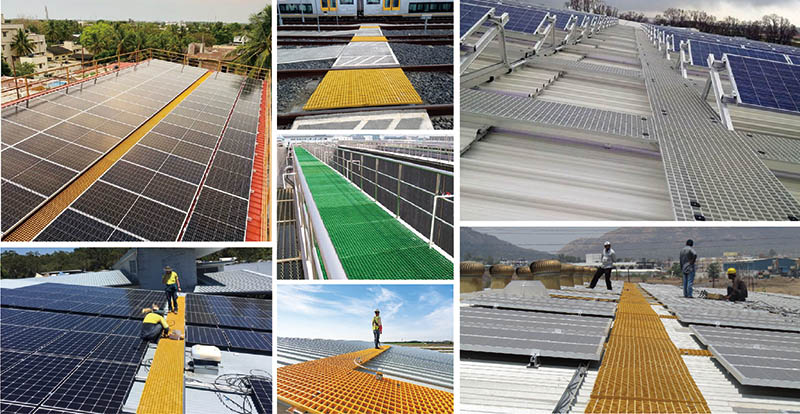

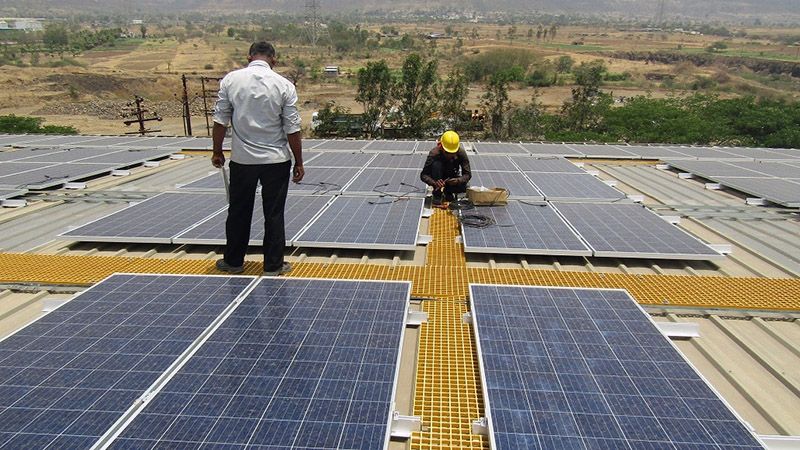

Application Reference
Q1: Are you a Factory?
A: Yes. We are a factory who is specialized in the producing the solar mounting kits in Xiamen, China. Our goods including solar mounting components, also the whole mounting system, including roof mounting, Ground Mounting, Carport, Solar Farm and also the OEM service.
Q2: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Spot check will be done for each procedure during our goods preparing. And before shipment, all will be check again.
Third Party Inspection is accepted.
Q3: Can I get sample before we place the order ?
A: Yes. Samples can be avaible anytime if you need.
Q4: How can I get a quotation?
A: 1. If for the regular components, just show us the item No. and quantity, we will quote you immediately.
2. If for the OEM componnets, show us the technical drawing or the sample, we will show you our drawing and then quote you after got your confirmation to the drawing.
3. If for the whole mounting solution, to make sure can provide the most appropriate quotation, some more information about the project will be needed:
1) Solar panel qty. and dimension (LxWxT) of the panel
2) Panel/ structure tilt angles
3) Max wind load and snow load
4) Panel layout plan or the roof/ground size (Lx W)
5) Others it may need according to different solution
UI SOLAR ground ground solar mount usually applicaple to the open field ,not only for residential project ,but also for the big commerial project.
The system used for metal roof, using clamp hook to fix the solar panel. Different types screw would be used basing on the beam material and structure.
UISOLAR grounding system is used for the Grounding purchase.The grounding washers/clips are used for the grounding each module and the guide rail with the pinholes on the wahsers to pierce the anodizing layer of the aluminum rails.We have different types of grounding washers for different rails'choices . Material : Grounding washers : SUS304 Grounding lug : Al6005-T5& SUS304 Bounding Jumper: Copper & SUS304
Applicable to corrugated or trapezoidal iron roofs. (1)The bracket is fixed to the roof with screws and is usually equipped with a rubber gasket at the bottom to ensure waterproofing. It can be directly connected to the photovoltaic track and is easy to install. (2) Customized trapezoidal bracket Designed for trapezoidal iron roofs, it can accurately match the trapezoidal corrugations of the roof. There is a special waterproof rubber pad at the bottom of the bracket, which ensures a firm installation and excellent waterproof performance.
1. Remove stagnant water automatically 2. Increase power generation to prove the service life of solar panels. 3. Easy installation. Fasten the frame of the solar panel automatically. Suitable for frame thick of solar module: 30 mm, 35 mm, 40 mm 4. Solar Panel Cleaning Clip is a rectangular self-stick polymer strip containing a water-inducing agent. stick to the frame of the photovoltaic module, there is no need to make adjustments to the components. In case of rain, the sludge water collected at the bottom of the frame is automatically directed over the frame and discharged and discharged in the stage of sludge water formation! 5. Through tests, it was found that the water accumulation and dust accumulation along the boundary of the components of the sludge belt was essentially eliminated after the installation of the water guide adhesive, the power generation gain increased from 2% to 10%. 6. Stainless steel material, long service life, no need for frequent replacement.
UISOLAR steel ballast mounting is suitable for flat concrete roof, it's made of steel with galvanized zinc surface, anti-corrosion, and without penetrating the roof surface.
New Adjustable ballast mounting is suitable for flat Concrete roof . Aluminum structure can adjust easily as per the request. No penetration to the roof, all the solar panel will connect as a whole part and increase the strength. Adjustable bracket range is 10-35 deg.
The Solar Bird net is designed to keep birds and rodents from getting under solar panels to damage the roof and electrical wiring. This system protects panels by creating a physical barrier that excludes pests from solar panel mounting areas. The system fix to the solar panels without damaging the solar panel or voiding the panel warranty.
The solar carport can be used for commerical and residential areas to protect cars from rain and snow and save electricity cost.
UISOLAR frameless solar clamps are made of Aluminum 6005-T5 & EPDM and used for the framless solar panel installation. It's approved by First Solar & Canadian Solar & JA Solar. Thin Film Clamps especially for: 1.First Solar series 4 Modules 2.Canadian Solar CS6X-P-FG 3.Trina Solar Duomax TSM-PEG14. 4. JA Solar 5. Other panel with the thickness 4~9mm
UISOLAR single pole carport is designed for both commercial, utility and residential carport structures with easy installation and highly pre-assembled. No welding and cutting are needed for the installation.
The UISOLAR Carport can be both for waterproof or no need waterproof. Different base( Concrete base and ground screw base) can be workable.
Universe Solar(UISOLAR) is a high-tech enterprise specializing in the development,manufacturing and marketing of PV mounting. With our top quality and service, UISOLAR mountings are welcomed by most of the installers, distributors, and EPC ect. all over the world.
