Pitched Tile Roof Mounting

Pitched Tile Roof Mounting

Pitched Tile Roof Mounting offers perfection solution for installation on tile roofing.

  • Brand:

    UISOLAR
  • Item NO.:

    Pitched Tile Roof Mo
  • Shipping Port:

    xiamen port
  • Lead Time:

    7-15days
  • Installation site:

    Pithch tile roof
  • Max. wind speed:

    60m/s
  • Snow load:

    1.4KN/m²
  • Material:

    SUS 304
  • Standards:

    AS/NZS1170, JISC8955:2017
  • Product Details

The roof fastening is done  by using highly-resistant aluminum roof hooks, which is suitable for nearly all pitched roof types, They include pantile, plain tiles, slate tiles. Systems are fully compliant with the Australian and other international standards on wind & snow load, making it suitable for a wide useful.

solar racking roof pitch

solar mounting pitched roof



well-used solar structure for roof tile





Module Angle

0 degree

Max. Wind Speed

60m/s

Snow Load

1.4kN/m2

Material

Al6005-T5&Stainless Steel SUS304

Max.Building Height

up to 65ft(22m), customized available


Hook Type

solar hook for solar panels



Versatility

Aluminium alloy and stainless steel material will make all mounting system stable and anti-corrosion.

Flexibility

The tile roof brackets is suitable for installing framed and frameless solar panels.

Quick and Easy Installation

Easy installation and high preassembly will save your  time and cost.

Strength Solution

All design can be strong enoungh after strength analysis.

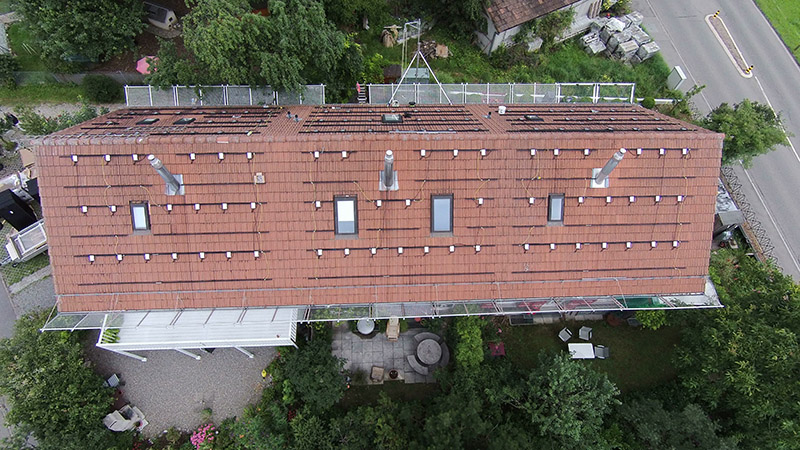

solar racking package for pitched roof



solar rackingproject for pitched roof types


solar rackingproject for pitched roof types





SAY HI
Contact Form

GET A FREE QUOTE

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
