Concrete flat roof mounting

Fixed Triangle Solar Brackets

Fixed Triangle Solar Brackets

The fixed triangle solar brackets can be pre-assemble and easy installed.  It can be strong with triangle shape. It is wide use and can be installed on concrete roof and tin roof.

  • Brand:

    UISOLAR
  • Item NO.:

    Fixed Triangle Solar
  • Color:

    silver,black
  • Shipping Port:

    xiamen port
  • Lead Time:

    7-15days
  • Installation site:

    Pithch tin roof, concrete roof
  • Max. wind speed:

    60m/s
  • Snow load:

    1.4KN/m²
  • Standards:

    AS/NZS1170, JISC8955:2017
  • Product Details

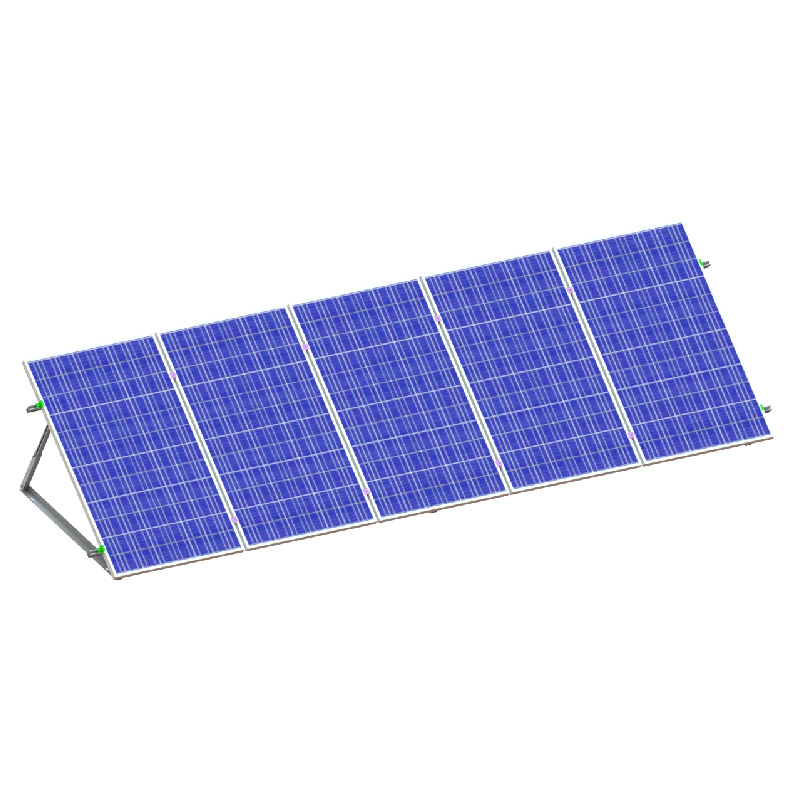

Fixed Triangle Solar Brackets

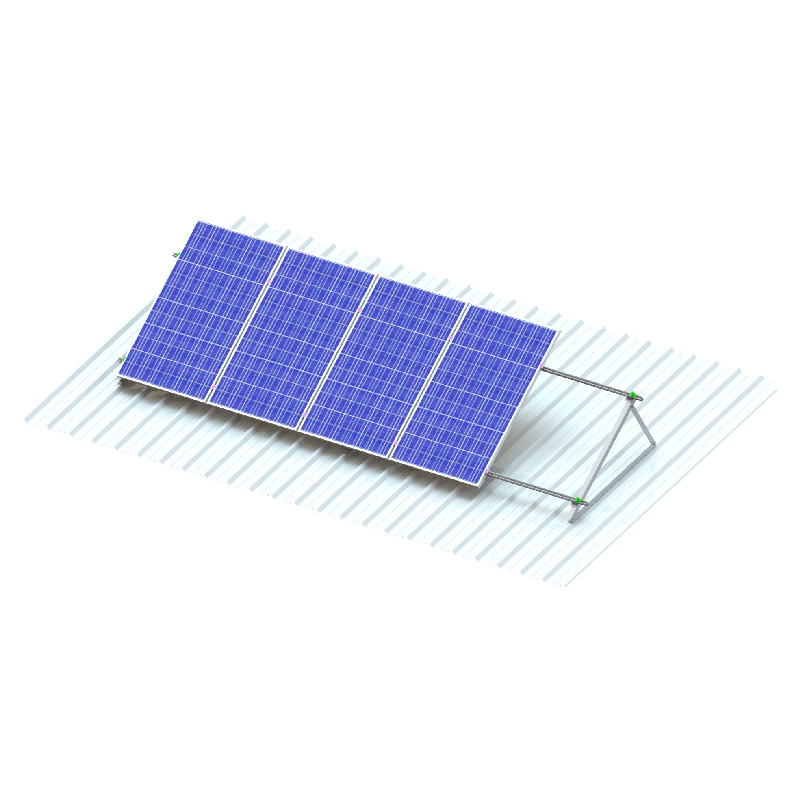

triangle type solar panel bracket

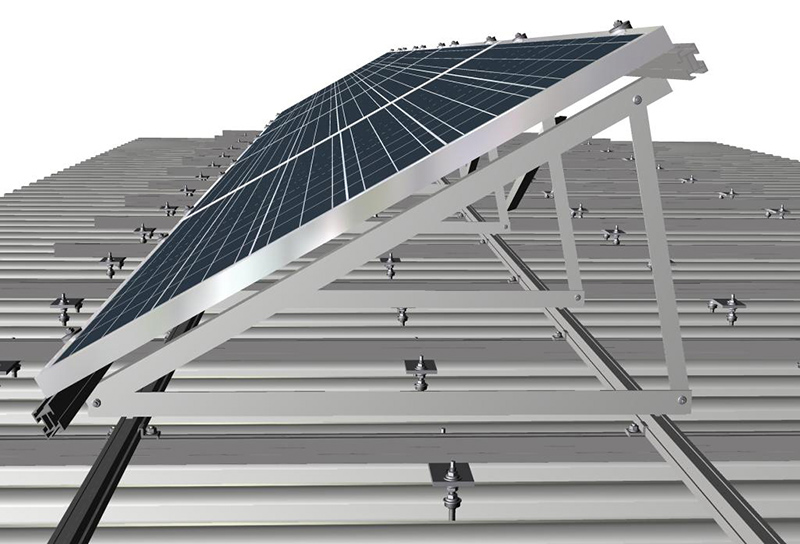

triangle type solar panel mounting brackets

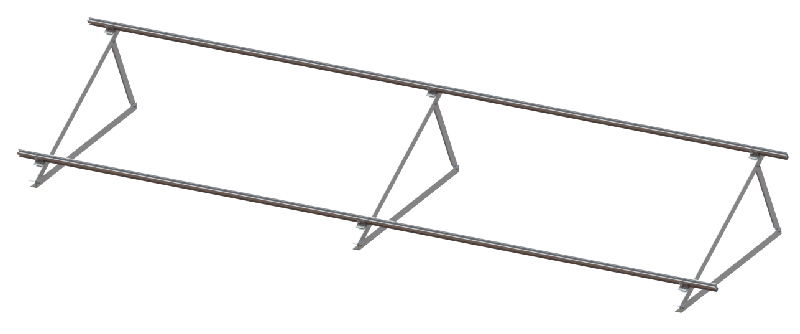

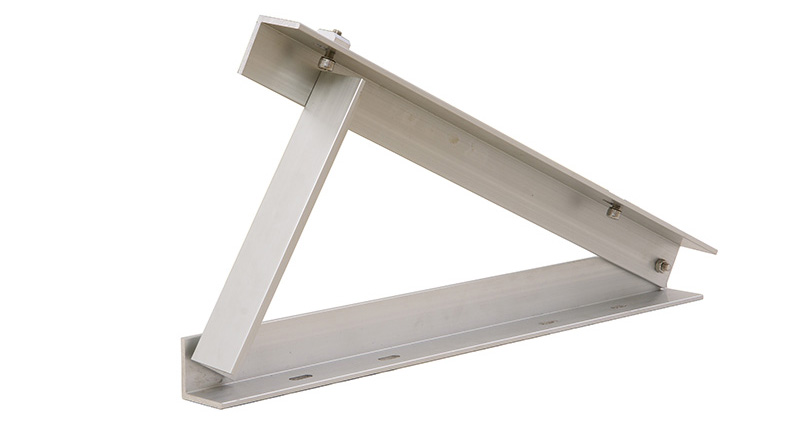

Fixed Triangle Solar Brackets

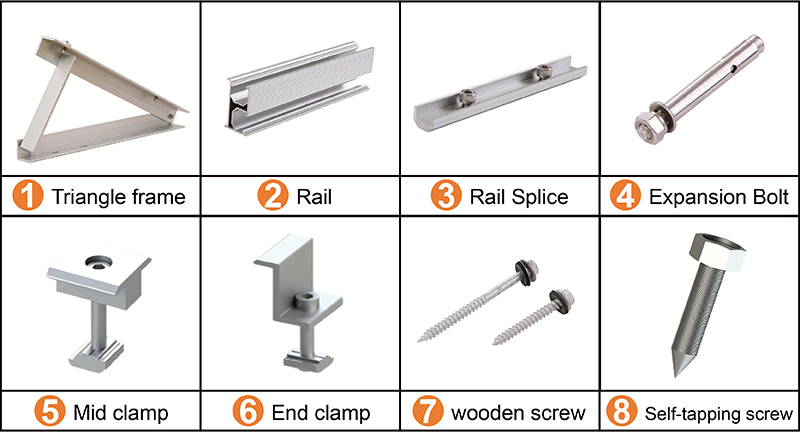

components for triangle brackets



Module Angle

10-60 degrees

Max. Wind Speed

60m/s

Snow Load

1.4kN/m2

Material

Al6005-T5& SUS304



Versatility

Available use on the flat concrete roof or pitched tin roof.

Flexibility

The flexible title angle design can be well used.

Quick and Easy Installation

Installation can be completed in a short time with 5 main components.

Strength Solution

All design can be strong enough after strength analysis.




package for triangle bracket

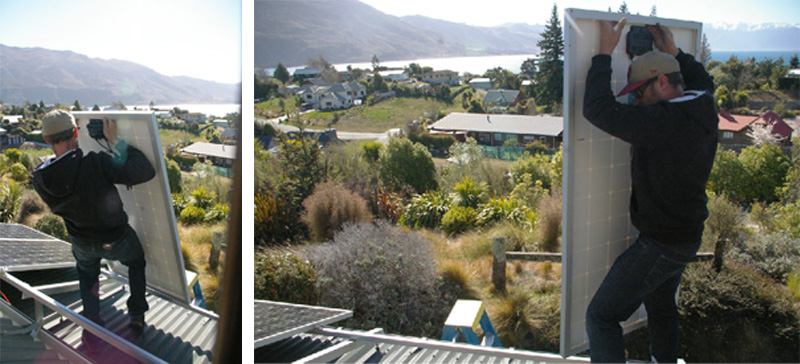

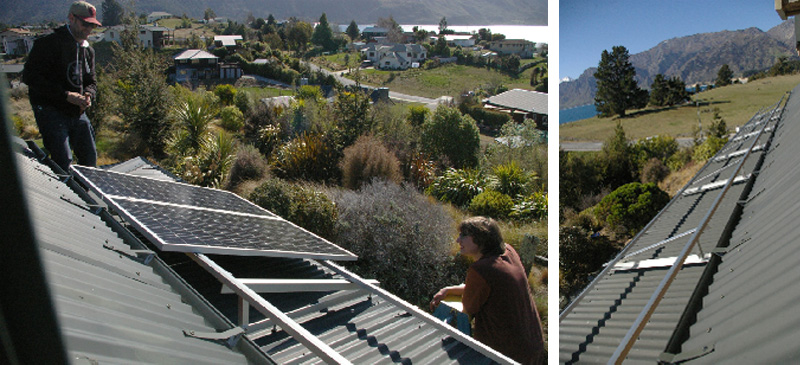

solar system of triangle brackets


solar system of triangle bracket
