Concrete flat roof mounting

RC Roof /Concrete Roof Mounting

RC Roof /Concrete Roof Mounting

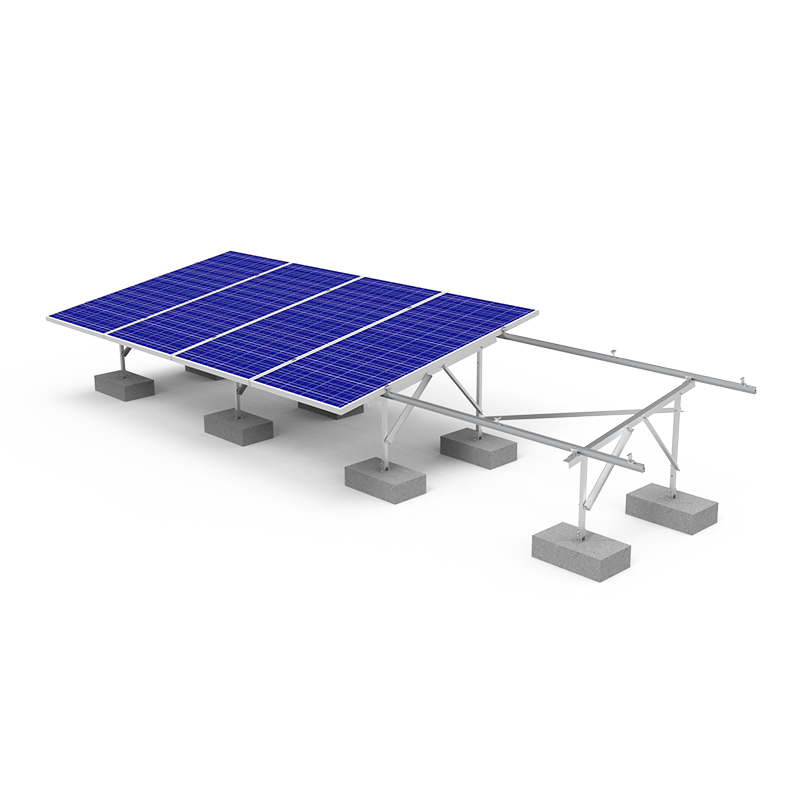

Concrete Roof mounting is designed for the Flat concrete Roof and Ground Mounting for one panel per array.

Any Clearance height from the panel and to the ground  will be easy to come true  to get better heat dissipation.
None Penetration to the roof.


  • Brand:

    UISOLAR
  • Shipping Port:

    Xiamen,China
  • Product Details

RC Roof /Concrete Roof Mounting







Material

Aluminum 6005-T5 +SUS304

Installation Site

Roof ( Both concrete & metal roof)

Warranty

10 Years

Max wind load

60m/s


Information need for the design


1.Concrete block size and hole location


2.Max wind load /Snow load


3.Panel size and layout plan


4.Panel tilt angles

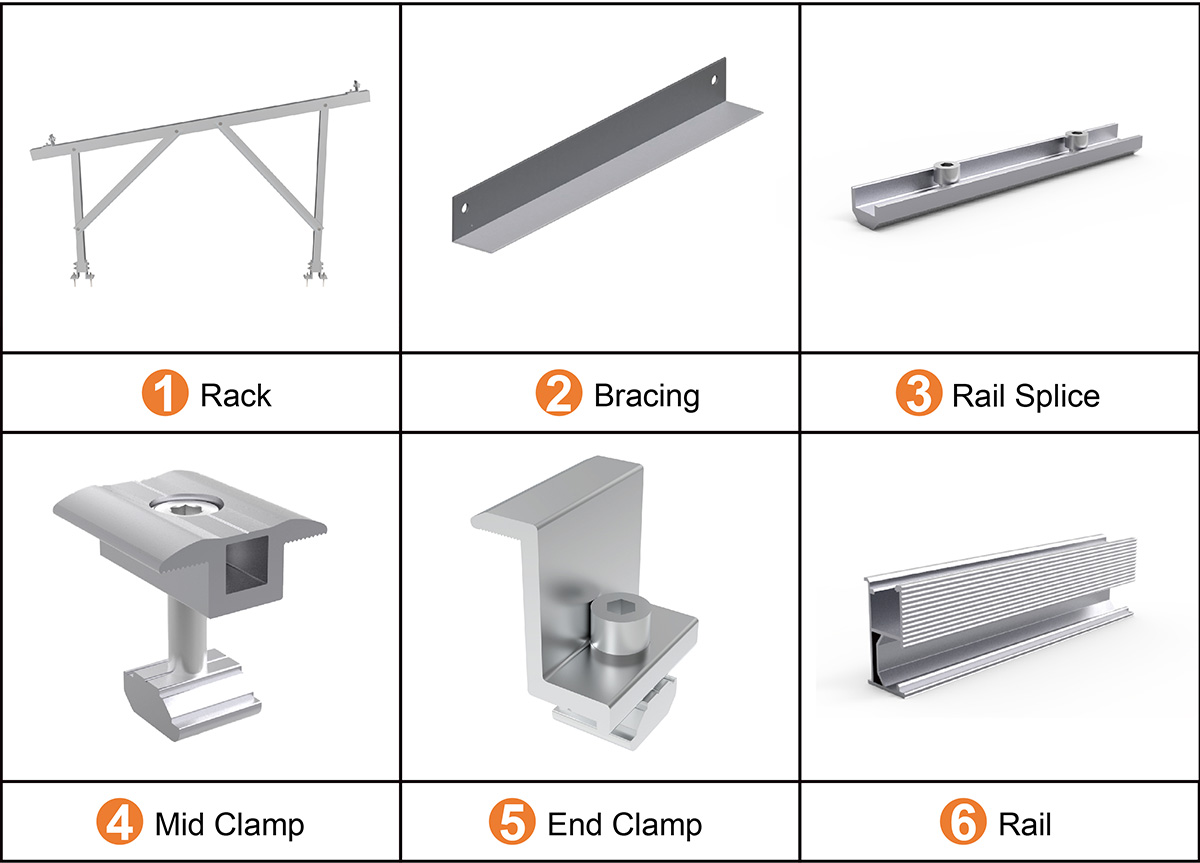

Connection part reference

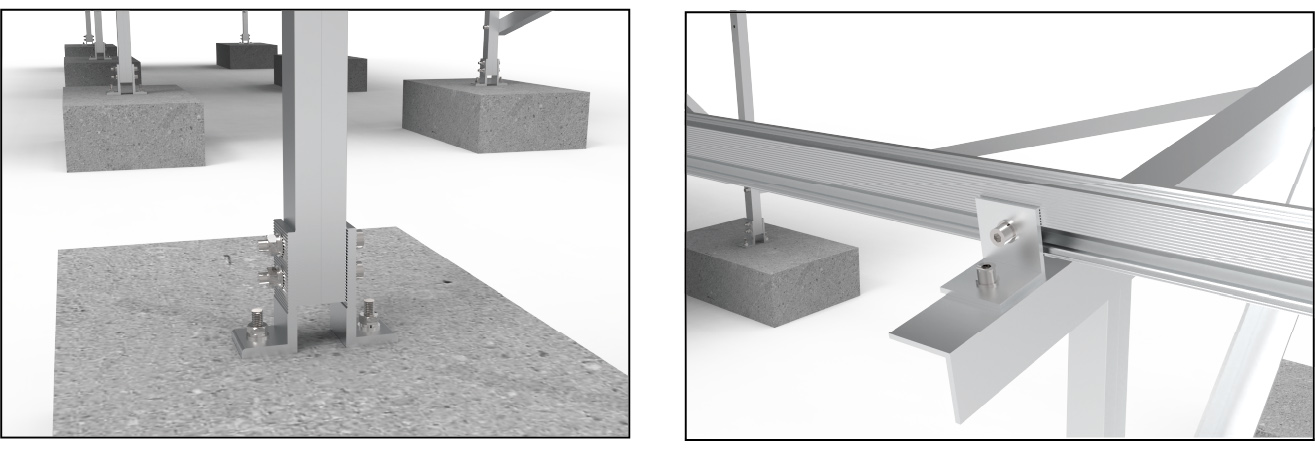

                    L foot and concrete base connection                                                         Rail and support rack connection

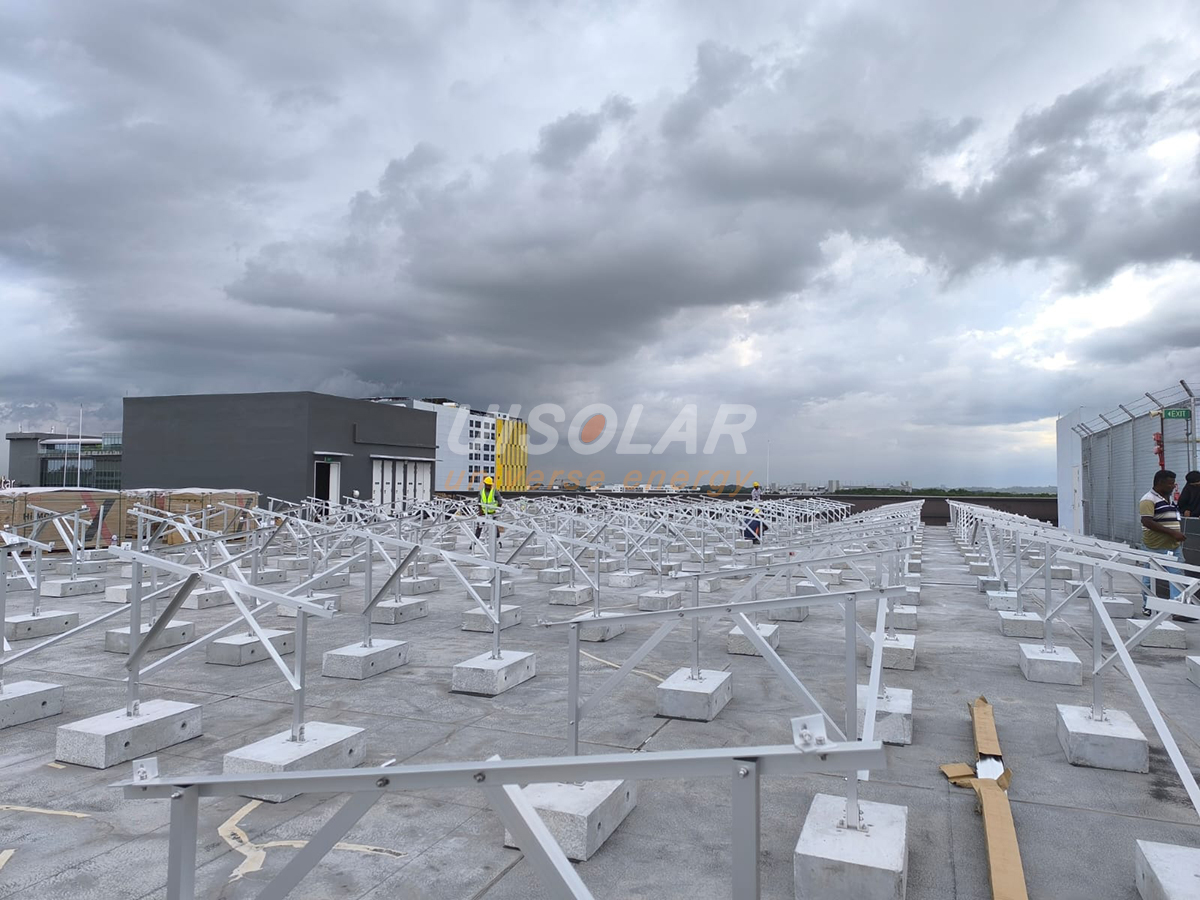

Project reference




Packing reference
