Innovative Solar Tin Rooftop Mounting Solution

Innovative Solar Tin Rooftop Mounting Solution

The new type roof mounting system can fit well on standing seam metal roof sheet and is a very economical solution.

  • Brand:

    UISOLAR
  • Item NO.:

    UI-SS05
  • Payment:

    T/T, L/C
  • Price:

    $0.015/watt
  • Product Origin:

    Fujian, China
  • Color:

    Silver
  • Shipping Port:

    Xiamen China
  • Lead Time:

    15 days
  • Product Details

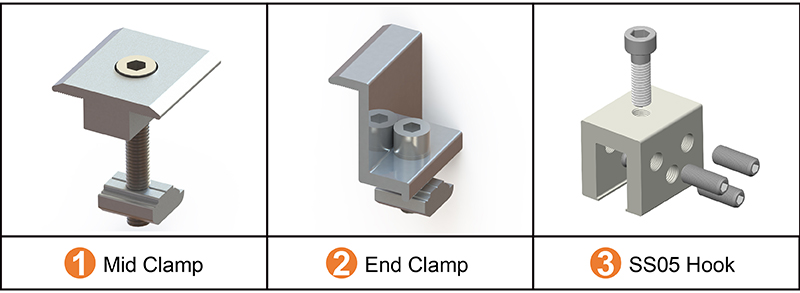

Solar panel rooftop mounting clamp solution

solar tin roof mount kit component easy save time

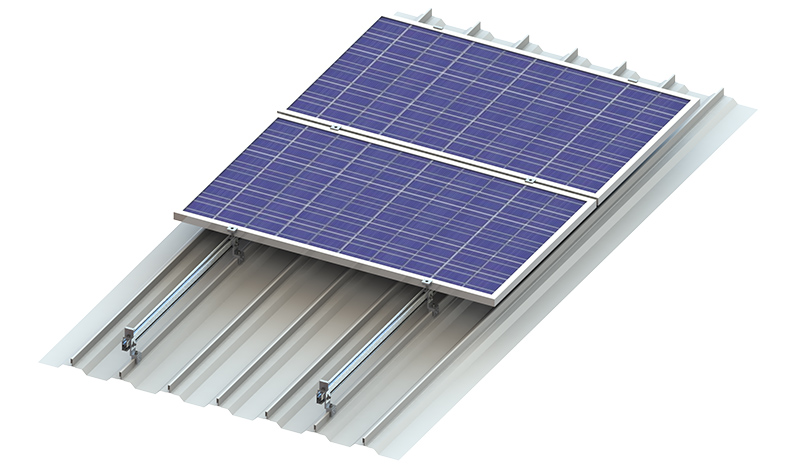

solar tin roof mount clamp solution

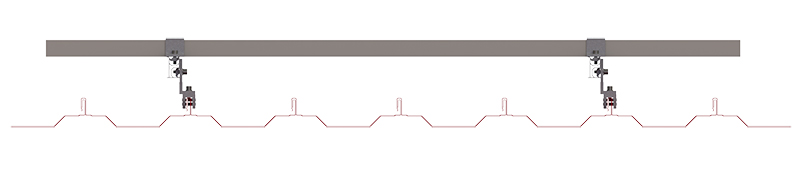

corrugated tin metal roof mount solar kit components



 Item No

 UI-SS05

 Installation Site

 Flat/Slope Tin Roof (0-60 Degree)

 Material

 Aluminum 6005 T5
 Stainless Steel 304

 Max Wind Speed

 60 m/s

 Warranty

 10 Years

 Max Sonw Load

 1.4 KN/M2

 Service Life

 25 Years

 Max Building Height

 65 ft (20m)

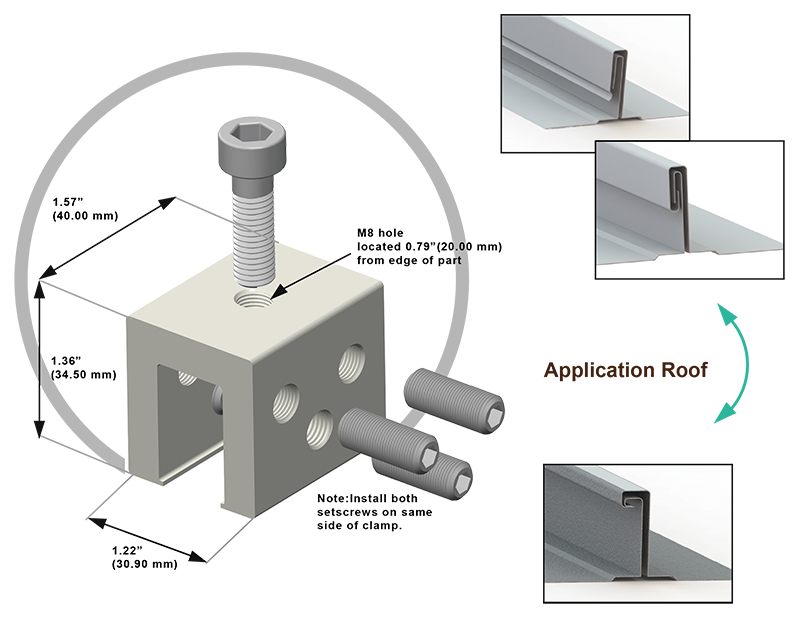

solar mount kit easy installation save time


1.Innovative Solution

The mount system is in new design and can fit the unique roof sheet.

2. Simple and Safe

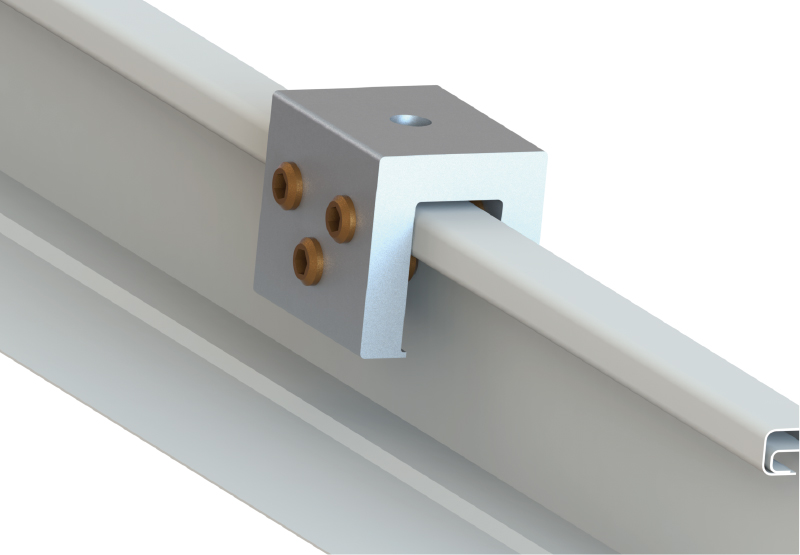

Fasten the connection part with screws from three sides which increasing the connecting areas and make sure the safety of your project.

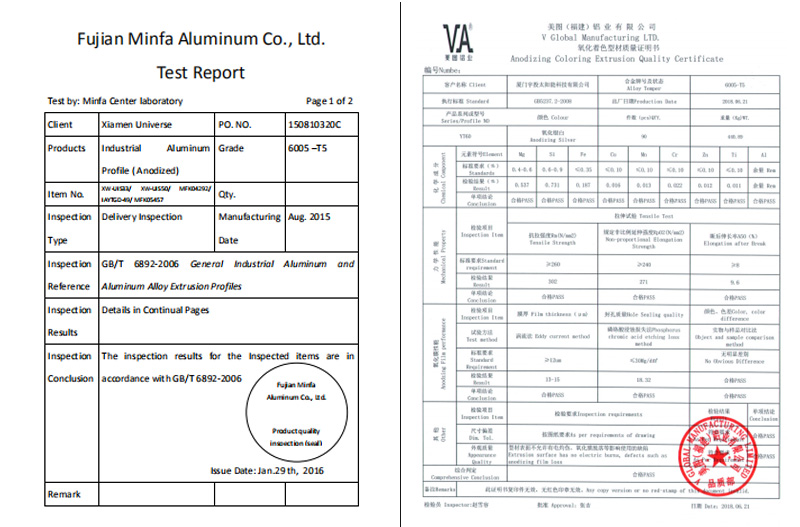

Alu test report for Mid clamp and end clamp AL6005-T5 Report




solar roof ground carport structure mounting rack package

Roof Mounting System - UISolar roof mounting systems with patented rail, highly pre-assembled components can be your better choice.
