Solar Tin Roof Mount System for Rooftop

Solar Tin Roof Mount System for Rooftop

The solar rooftop mount system suits for metal trapezoidal roof which using hook and screws as rail to save cost.

  • Brand:

    UISOLAR
  • Item NO.:

    UI-SS04
  • Payment:

    T/T, L/C
  • Price:

    $0.005/watt
  • Product Origin:

    Fujian, China
  • Color:

    Silver
  • Shipping Port:

    Xiamen China
  • Lead Time:

    15 days
  • Product Details

Solar Tin Roof Mount System for Rooftop

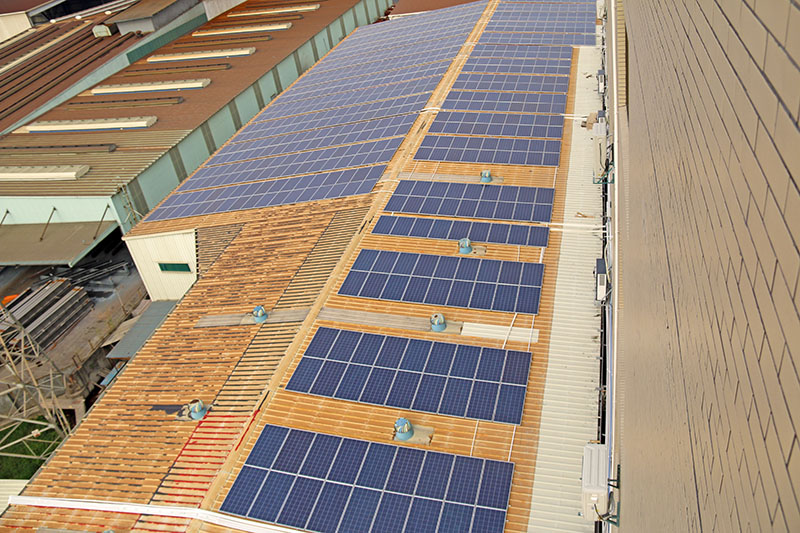

rooftop solar mounting

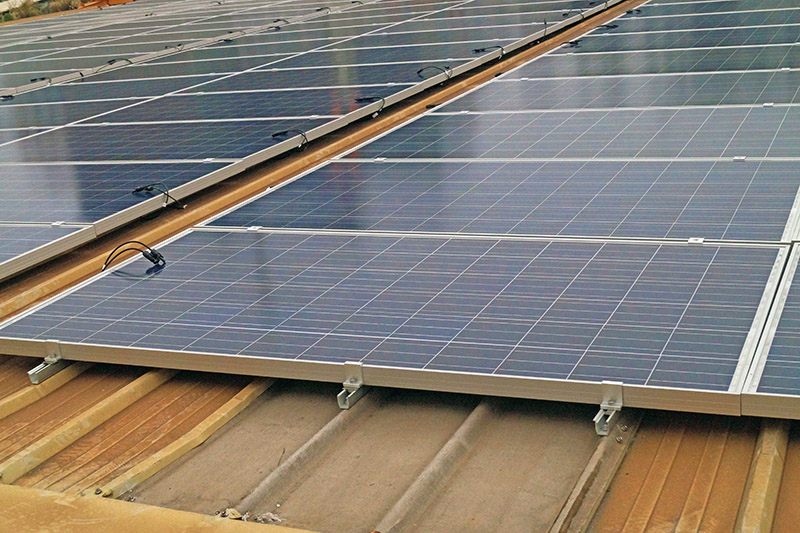

Solar panel rooftop mounting

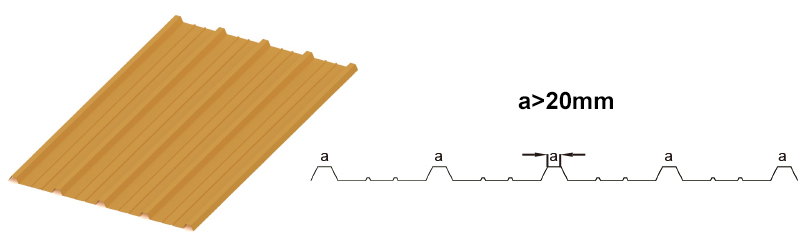

The metal roof sheet should in trapezoidal shape and its rib sholud more than 20mm.





 Item No

 UI-SS04

 Installation Site

 Flat / SlopeTin Roof

 Material

 Aluminum 6005 T5

 Max Wind Speed

 60 m/s

 Warranty

 10 Years

 Max Sonw Load

 1.4 KN/M2

 Service Life

 25 Years

 Max Building Height

 65 ft (20m)

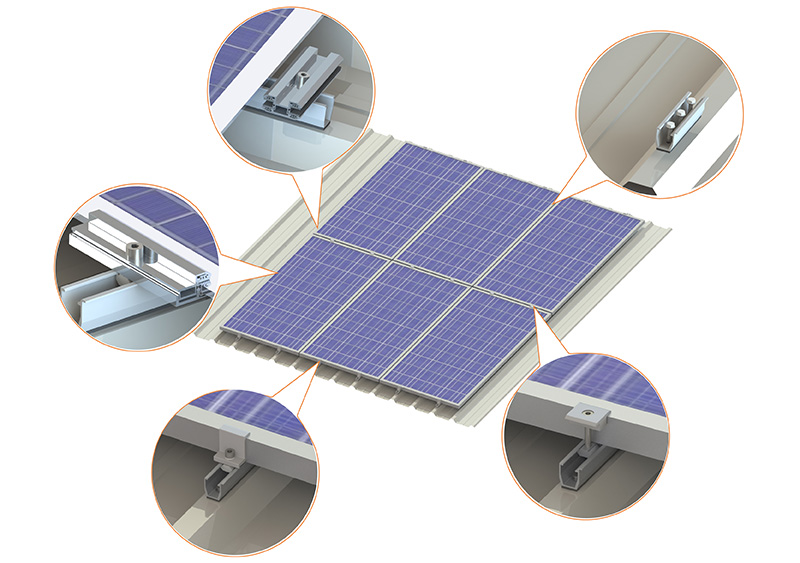

rooftop solar mounting



1. No Rail

Using UI-SS04 hook to fix the panel instead of rail to save the cost of product and shipping.

2.Lightweight

The solution without rails can reduce the weight on your roof and increase the safety when some accidents happened.

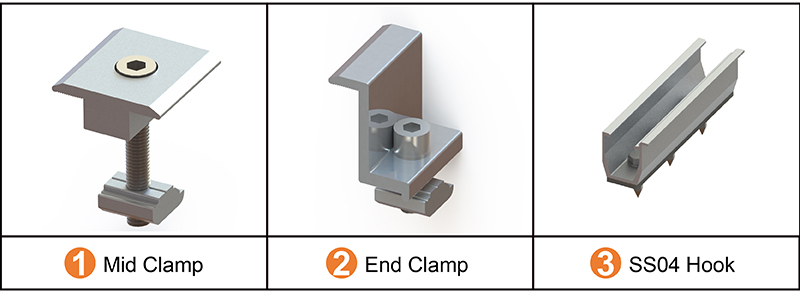

3. Easy Installation

Only three components to finish the installation, save time and labor cost.




solar panel rack package






Your perfect rooftop solar mounting manufacturer! Contact now!

SAY HI
Contact Form

GET A FREE QUOTE

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Related Products
Related Products
triangle mounting of solar panel bracket

Fixed Simple Triangle Solar Brackets

The Fixed simple triangle solar brackets is cost-effective. It can be installed penetrate into concrete base for solar panel mounting. Fold design allows for easy transportation, and easy mounting.

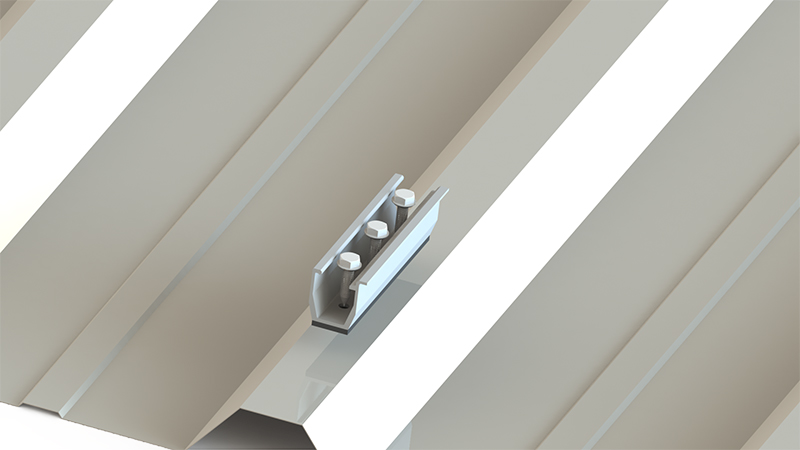

New solar panel metal roof mount

Innovative Solar Tin Rooftop Mounting Solution

The new type roof mounting system can fit well on standing seam metal roof sheet and is a very economical solution.

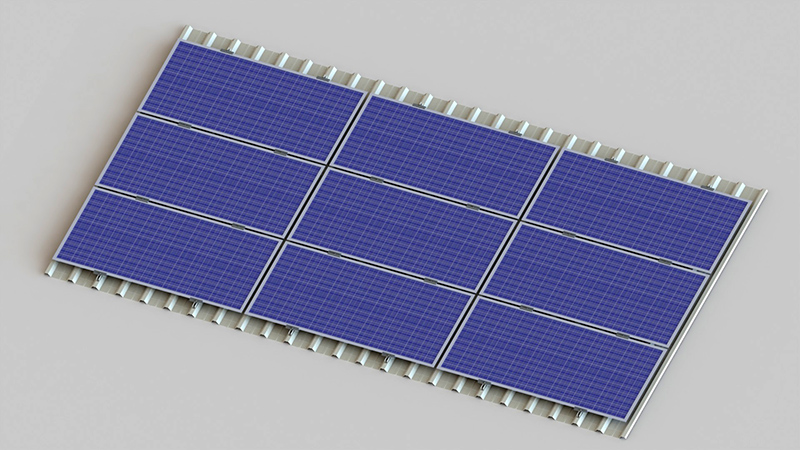

Solar panel roof mount system

Pitched Tin Roof Mount for Solar Panel Rooftop

The solar roof mounting solution used for pitched metal roof, using rail and L shape feet to fix the panel. Different types screw would be used basing on the beam material and structure.

Solar panel flat metal roof mount with clamps

Stand Seam Clamps Solar Tin Roof Mounting System

The system used for metal roof, using clamp hook to fix the solar panel. Different types screw would be used basing on the beam material and structure.

Solar panel rooftop mounting

Rail -Free Roof Mounting UI-SS07

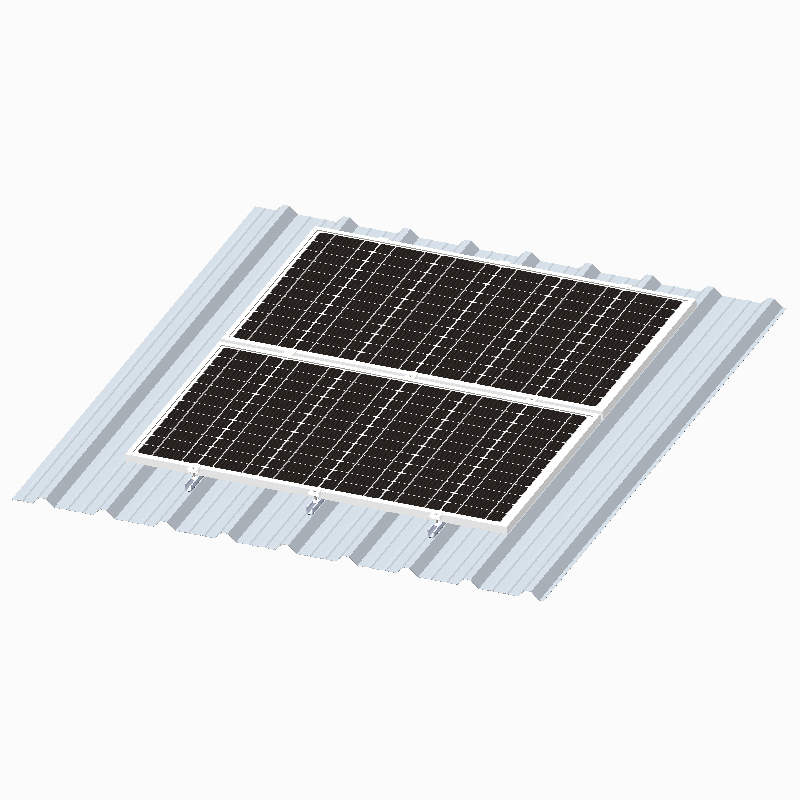

UISOLAR rail free mount is designed for trapezoidal  metal roof, and enable you to install without railing.It can be flexible for both landscape and portrait laypout plan.
