Fixed Simple Triangle Solar Brackets
The Fixed simple triangle solar brackets is cost-effective. It can be installed penetrate into concrete base for solar panel mounting. Fold design allows for easy transportation, and easy mounting.
Brand:
UISOLARItem NO.:
UI-IK-H20L-R22#Color:
Silver or blackShipping Port:
Xiamen ChinaLead Time：
20 daysInstallation site:
RoofMax. wind speed:
60m/sSnow load:
1.5KN/M^2Foundation type:
Concrete blockMaterial:
AluminumStandards:
AS/NZS1170,JISC8955:2017UI-IK-H20L-R22#
|
Installation Site: |
Roof |
|
Angle: |
10-60 deg |
|
Max wind speed load: |
60m/s |
|
Snow load: |
1.5KN/M^2 |
|
Materail: |
Aluminum |
Universal Compatibility: The bracket system is engineered to be compatible with various roof materials, including but not limited to asphalt shingles, metal, and tile, making it suitable for both residential and commercial applications.
High-Strength Construction: Made from premium aluminum or stainless steel, our brackets are built to last and withstand the test of time.
Easy Installation: The design of our mounting brackets allows for a swift and easy installation process, reducing labor costs and time on site.
The Fixed simple triangle solar brackets is cost-effective. It can be installed penetrate into concrete base for solar panel mounting. Fold design allows for easy transportation, and easy mounting.
The solar rooftop mount system suits for metal trapezoidal roof which using hook and screws as rail to save cost.
The new type roof mounting system can fit well on standing seam metal roof sheet and is a very economical solution.
The solar roof mounting solution used for pitched metal roof, using rail and L shape feet to fix the panel. Different types screw would be used basing on the beam material and structure.
The system used for metal roof, using clamp hook to fix the solar panel. Different types screw would be used basing on the beam material and structure.
UISOLAR rail free mount is designed for trapezoidal metal roof, and enable you to install without railing.It can be flexible for both landscape and portrait laypout plan.

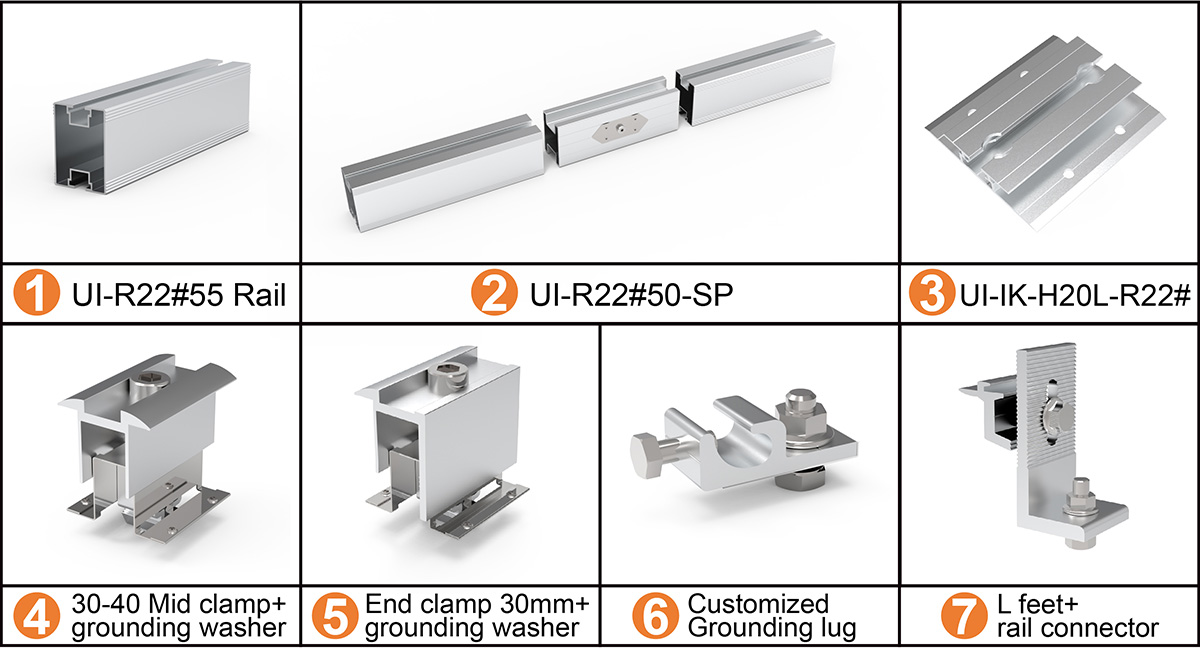

The R22#55 rail, hanger bolt, and L-feet combination is a great choice for installing solar panels because it's both strong and easy to set up. It suitable for corrugated or trapezoidal roof.
Solar flashing is a component used in the installation of solar panels on rooftops. It is designed to protect the roof and the solar panel system from water infiltration while ensuring a secure and weathertight seal. It plays a critical role in protecting the building and the solar system from water damage, ensuring the longevity and effectiveness of the solar energy system.
Aluinum Barricade is designed to protect workers from falling during the installation and maintainance. Aluminum material is light and cost little weight to the roof.
1. Remove stagnant water automatically 2. Increase power generation to prove the service life of solar panels. 3. Easy installation. Fasten the frame of the solar panel automatically. Suitable for frame thick of solar module: 30 mm, 35 mm, 40 mm 4. Solar Panel Cleaning Clip is a rectangular self-stick polymer strip containing a water-inducing agent. stick to the frame of the photovoltaic module, there is no need to make adjustments to the components. In case of rain, the sludge water collected at the bottom of the frame is automatically directed over the frame and discharged and discharged in the stage of sludge water formation! 5. Through tests, it was found that the water accumulation and dust accumulation along the boundary of the components of the sludge belt was essentially eliminated after the installation of the water guide adhesive, the power generation gain increased from 2% to 10%. 6. Stainless steel material, long service life, no need for frequent replacement.
UISOLAR tile roof hooks are used for roman tile roof, flat tile roof, asphalt tile roof and slate tile roof. Material :stainless steel 304 Surface : sandblasted make hooks highly corrosion resistant Accompany accesories components: wooden screws(M6.3*80, Aluminum nut +bolt (M8*25mm allen bolt ) for rail connection
Pitched Tile Roof Mounting offers perfection solution for installation on tile roofing.
