Pitched Tin Roof Mount for Solar Panel Rooftop

Pitched Tin Roof Mount for Solar Panel Rooftop

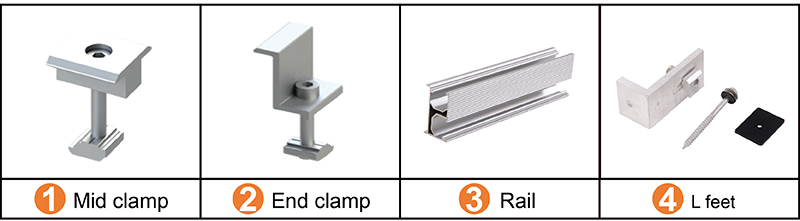

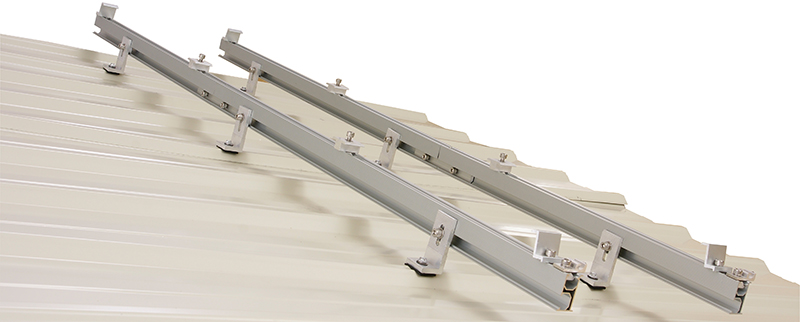

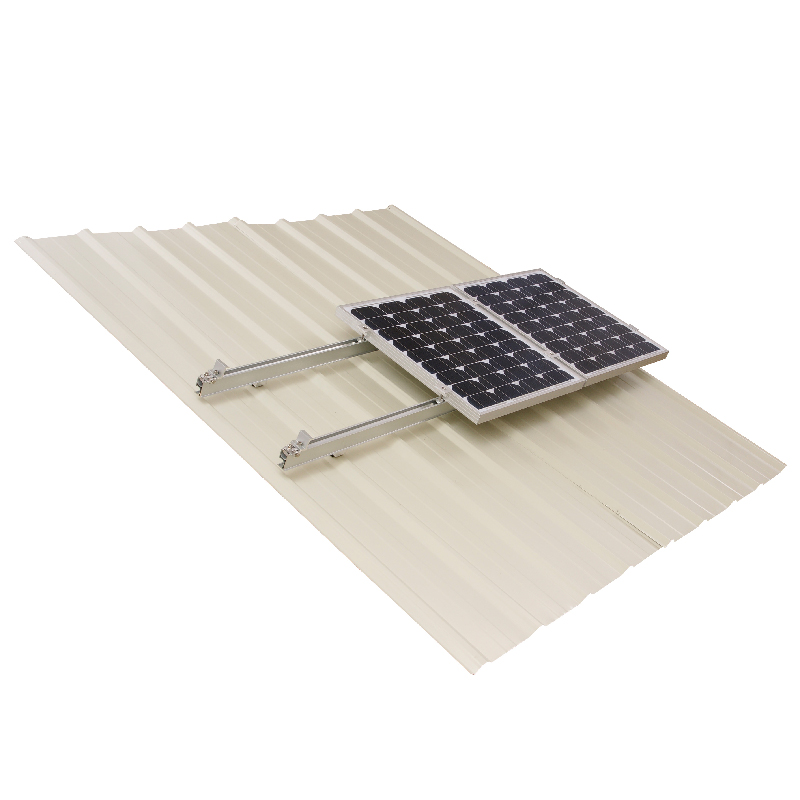

The solar roof mounting solution used for pitched metal roof, using rail and L shape feet to fix the panel.

Different types screw would be used basing on the beam material and structure.

  • Brand:

    UISOLAR
  • Item NO.:

    UI-L Feet
  • Payment:

    T/T, L/C
  • Price:

    $0.015/watt
  • Color:

    Silver
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    15 days
  • Product Details

Pitched Tin Roof Mount for Solar Panel Rooftop

Solar roof mount rooftop metal tin aluminum



solar rail tin roof top mount rack strong

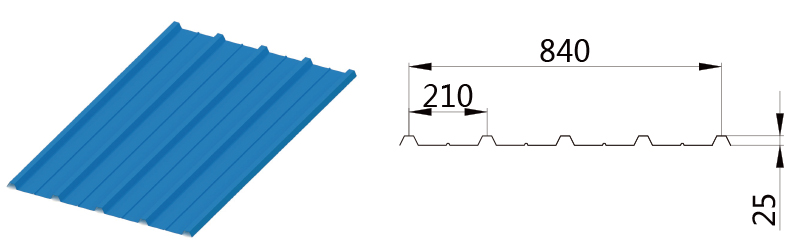

corrugated roof sheet soalr rooftop mount



soalr clamps and rail for solar roof installation

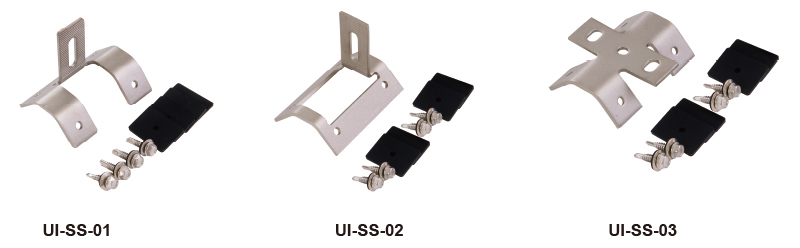

Hook Series Show


UI-SS-01, UI-SS-02,UI-SS-03, solar kit roof

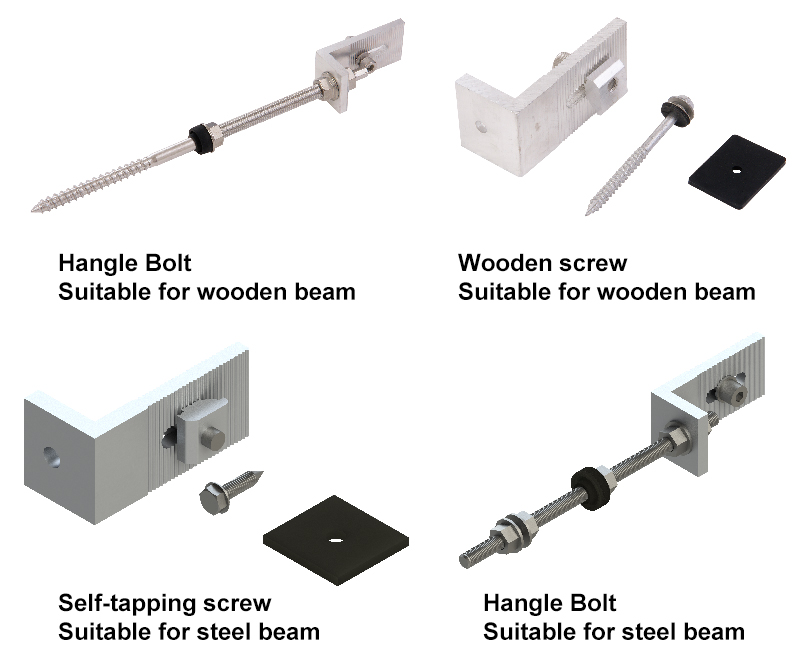

hanger bolt threaded bolt wooden steel beam



 Item No

 Pitched Tin Roof

 Installation Site

 Slope Tin Roof (0-60 Degree)

 Material

 Aluminum 6005 T5
Stainless Steel 304

 Max Wind Speed

 60 m/s

 Warranty

 10 Years

 Max Snow Load

 1.4 KN/M2

 Service Life

 25 Years

 Max Building Height

 65 ft (20m)



1.Commonality

The solution can use on most types of metal roofs mounting which save much time in detail comfirming and high efficiency in engineering design.

2.Hot Sale

The solution is widely used in commercial and residential roof in recent years, owing good reputation and feedback   from clients.

3. Easy Installation

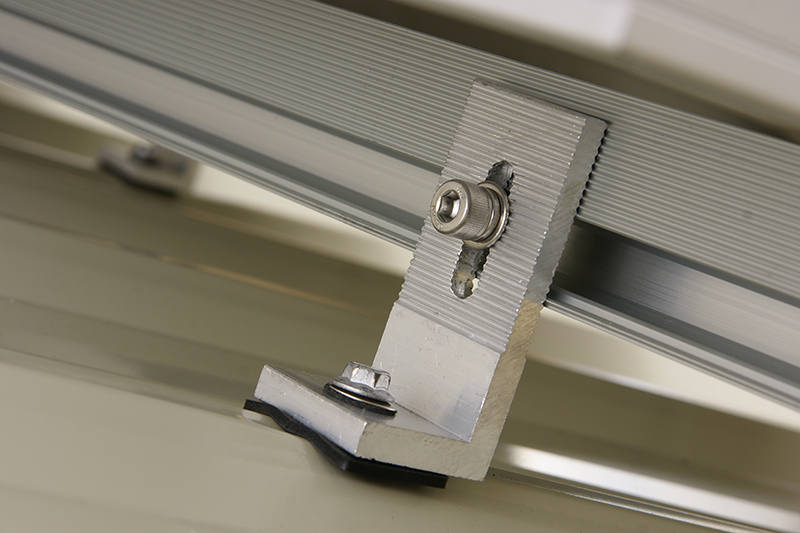

Just install the L shape feet on the roof sheet, then fix the rail and solar panel.

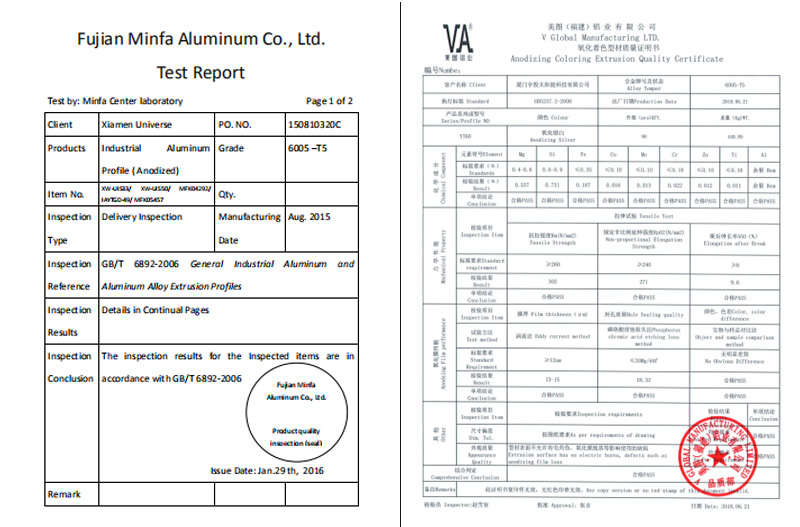

Alu test report for Mid clamp and end clamp AL6005-T5 Report




UISolar Solar solutions for pitched tin roof,Pitched tin Roof mounting China supplier!
