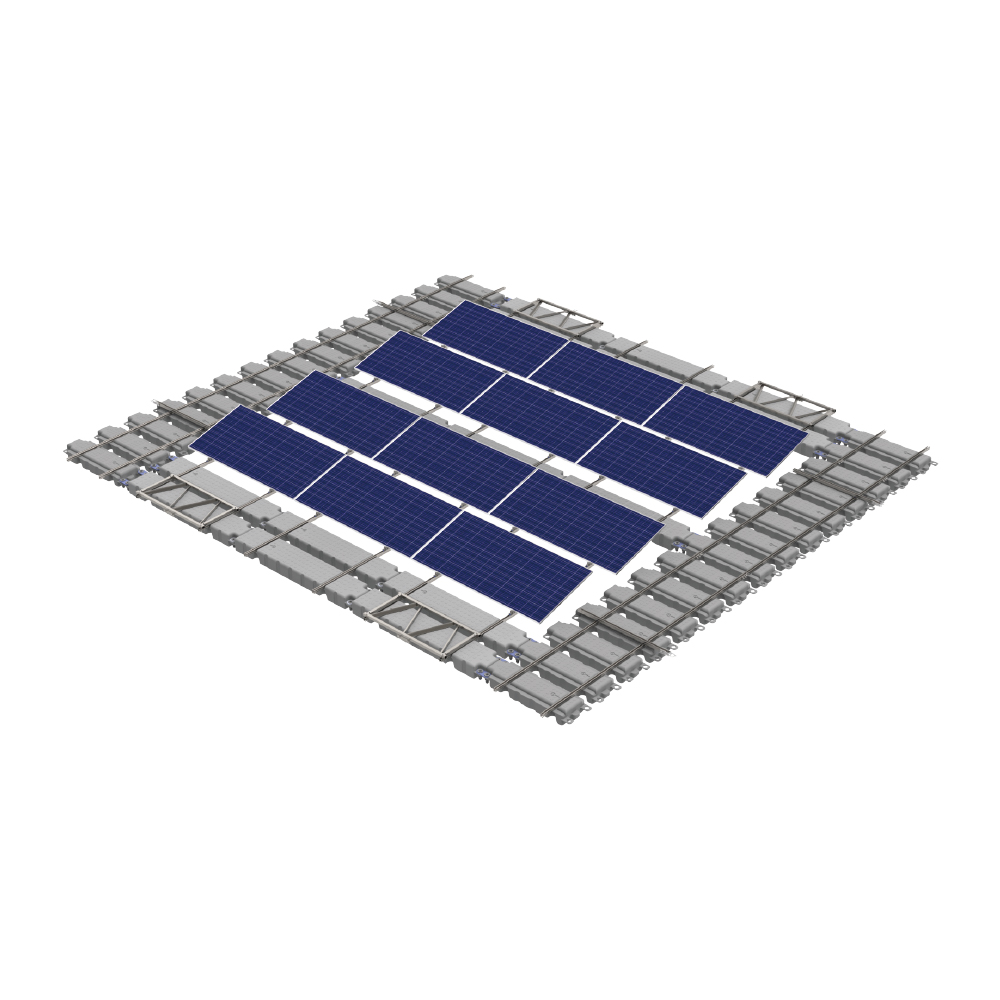

The Floating PV Mounting System is designed for solar installations on water surfaces such as lakes, reservoirs, and ponds. The system adopts durable HDPE floating structures, corrosion-resistant aluminum alloy and Zn-Al-Mg coated steel components, ensuring long-term stability and reliable performance in water environments.
Brand:
UISOLARItem NO.:
FloatingShipping Port:
Xiamen,ChinaInstallation site:
Lakes,reservoirs, and other water surfacesMax. wind speed:
60m/sSnow load:
1.4kn/m^2Material:
HDPE, Al6005-T5 & SteelFloating PV Mounting System
|
Installation Site: |
Lakes,reservoirs, and other water surfaces |
|
Tilt Angel: |
0-15 deg |
|
Max wind speed load: |
60m/s |
|
Snow Load : |
1.4kn/m^2 |
|
Layout |
Landscape |
|
Material: |
HDPE, Al6005-T5 & Steel |
|
Warranty: |
10 Years |
|
Service Life: |
25 Years |
Advantage :
1.Efficient Use of Water Surfaces
Maximizes unused water areas while reducing land use.
2. Enhanced Power Generation
Natural water cooling helps improve module performance.
3. Durable & Corrosion-Resistant
High-quality materials ensure long service life in water environments.
4. Modular & Easy Installation
Flexible design enables fast installation and scalable projects.
5. Adjustable Tilt Angles
Tilt options of 0°, 5°, 10°, and 15° adapt to different sunlight conditions.

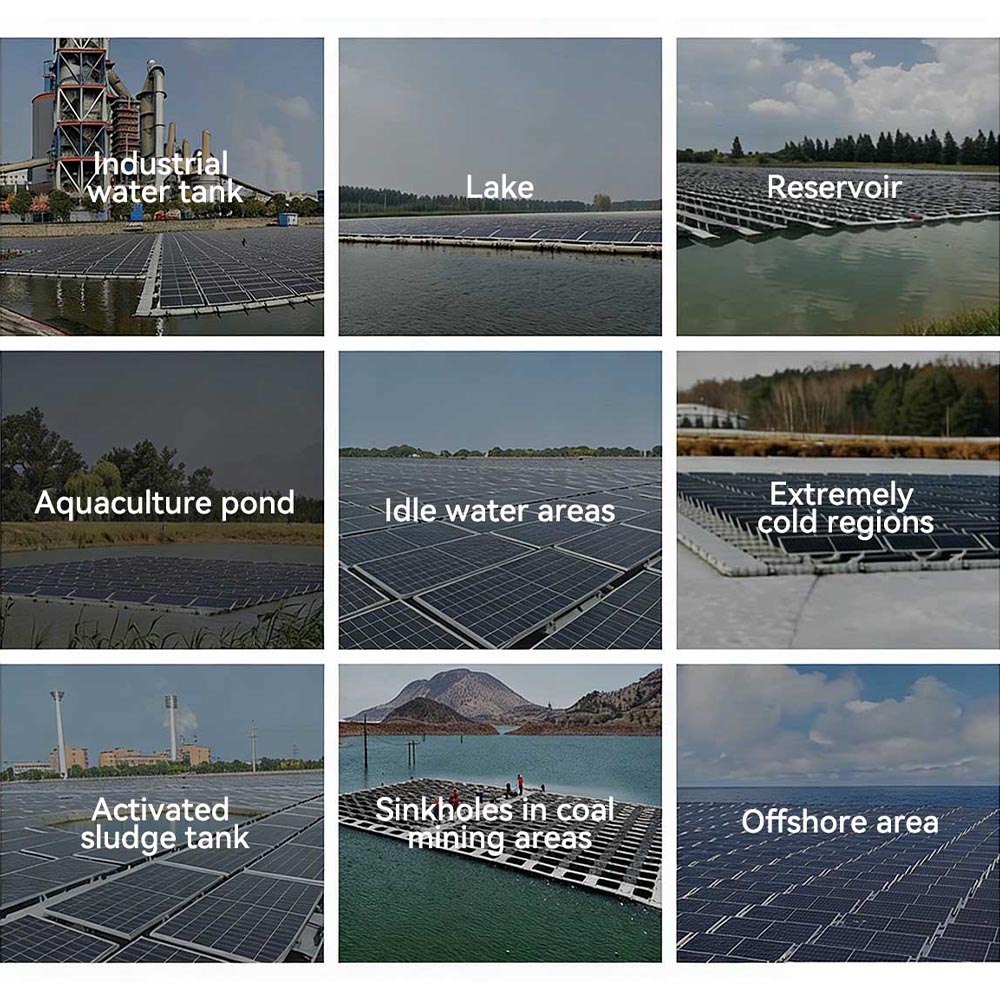

Application

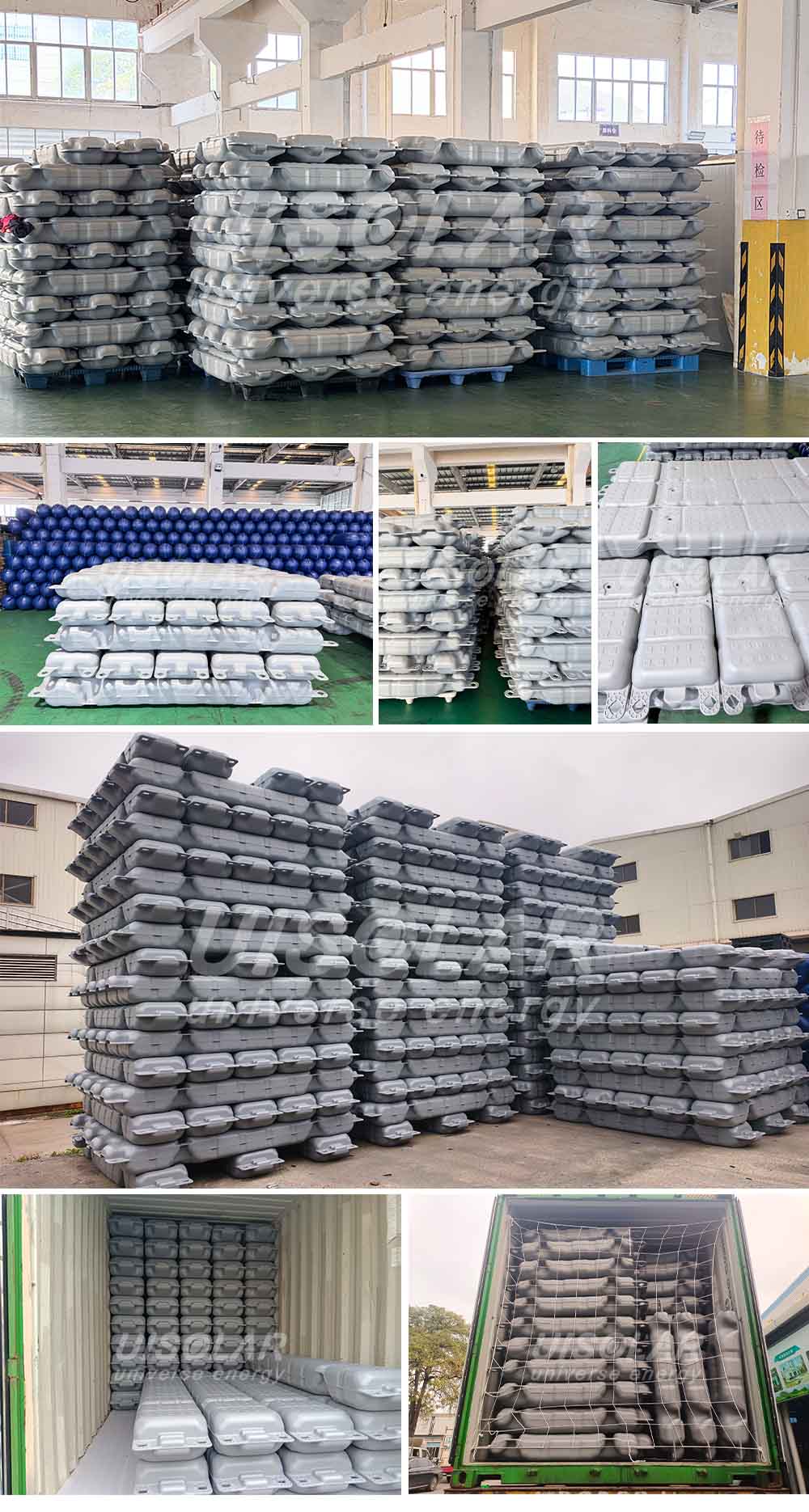

Product packaging and Delivery

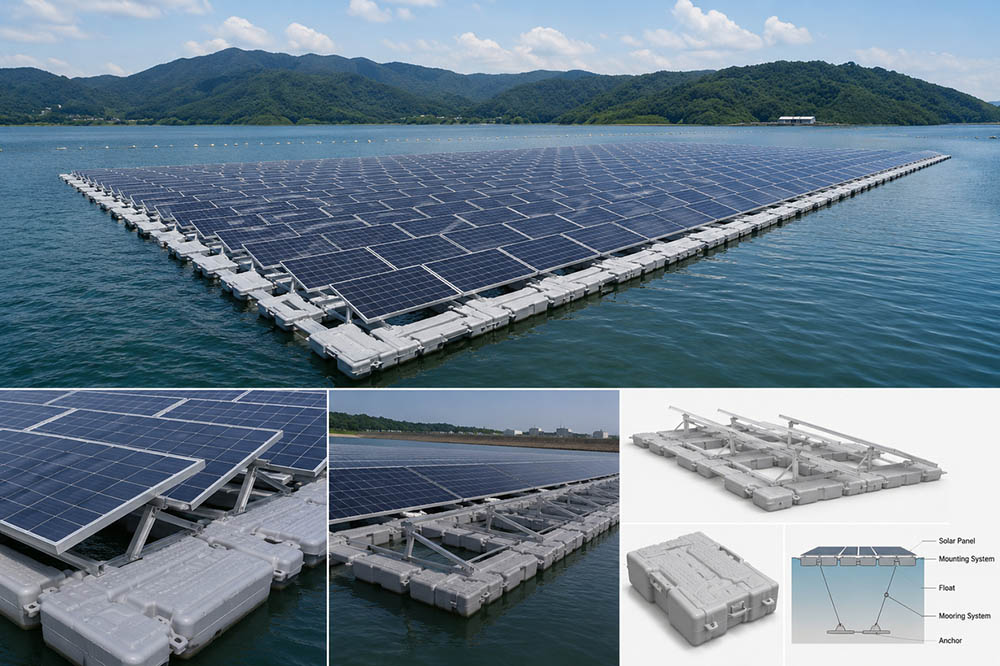

Project Reference
1. Automatically remove stagnant water, saving cleaning for time and energy. 2. Increase power generation and extend the service life of solar. 3. Easy to install. Automatically fasten the solar panel frame. 4. Using polymer materials, and low temperature resistance, long-term outdoor use. 5. Suitable for solar panel frame thickness: 30mm/1.54inch, 35mm/1.73inch.
UISOLAR steel ballast mounting is suitable for flat concrete roof, it's made of steel with galvanized zinc surface, anti-corrosion, and without penetrating the roof surface.
Concrete Roof mounting is designed for the Flat concrete Roof and Ground Mounting for one panel per array. Any Clearance height from the panel and to the ground will be easy to come true to get better heat dissipation. None Penetration to the roof.
New Adjustable ballast mounting is suitable for flat Concrete roof . Aluminum structure can adjust easily as per the request. No penetration to the roof, all the solar panel will connect as a whole part and increase the strength. Adjustable bracket range is 10-35 deg.
FRP walkways are acid-base corrosion resistant, insulating and easy to install. It is specially designed to ensure the safety of the solar rooftop walkway area. It not only effectively extends the service life of commercial and industrial rooftop, but also provides a safe pathway for the equipment installed on the roof. FRP walkways system include gratings and connection fittings.They are used in power plants, chemical plants, water treatment and oil platforms and other corrosion environment.
The aluminum solar carport is updated with waterproof and windproof function and can be used for commerical and residential areas.
UISOLAR MAC steel ballasted mounting brackets are suitable for flat concrete roofs. Made from MAC steel, which is a zinc-aluminum-magnesium alloy-coated steel, not only offer a price advantage but also ensure the strength of the mounting brackets.
The Fixed simple triangle solar brackets is cost-effective. It can be installed penetrate into concrete base for solar panel mounting. Fold design allows for easy transportation, and easy mounting.
UISOLAR rail free mount is designed for trapezoidal metal roof, and enable you to install without railing.It can be flexible for both landscape and portrait laypout plan.
The four poles carport is easy installed and save space which can be used for commerical and residential installation.
UISOLAR ABS solar mounting corner bracket is an ideal solution for cable entry through roofs in solar projects. It allows an easy way for cable enter into any roofs under ABS plastic corner. It can be waterproof ,too With its single or dual cable entry, this corner bracket easily passes through solar cables for a smooth installation on any roof surface. In this way, it has wide application in RV,vehicles, caravans, boats, vessel, outbuildings etc.
The R22#55 rail, hanger bolt, and L-feet combination is a great choice for installing solar panels because it's both strong and easy to set up. It suitable for corrugated or trapezoidal roof.
Universe Solar(UISOLAR) is a high-tech enterprise specializing in the development,manufacturing and marketing of PV mounting. With our top quality and service, UISOLAR mountings are welcomed by most of the installers, distributors, and EPC ect. all over the world.
