Solar farm

Free stand post for solar agriculture

Free stand post for solar agriculture

UISOLAR developed a new solar farm that can overcomes some more challenges and can better working on sloped  lands and using large agriculture Veicles

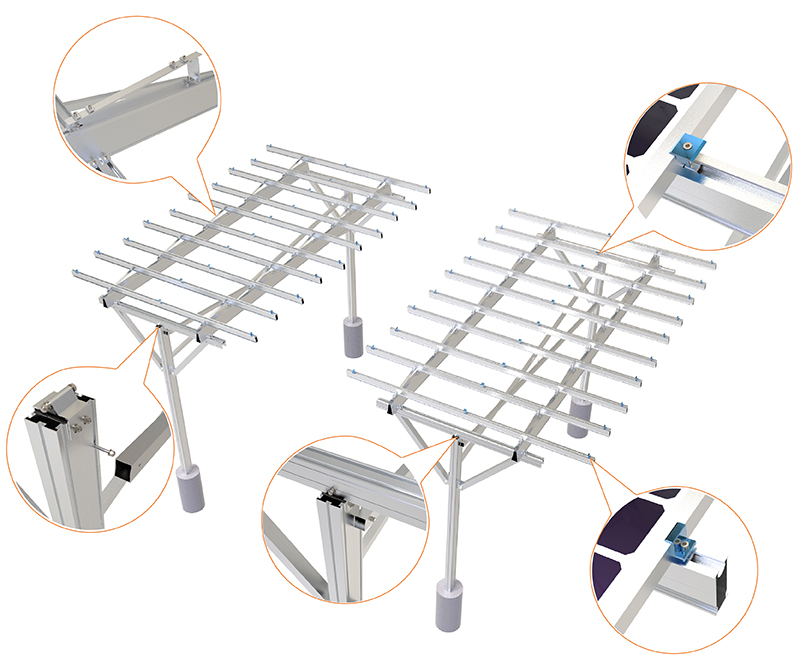

In the newly developed  Free -Stand post solar farm product, by using a  free stand support to get more freedom in installing the agricultural machinery, which will make it possible to use the Mechanized operations on the slopes areas,  such as orchards and pastures.



  • Shipping Port:

    Xiamen,China
  • Product Details

Free stand solar farm




Free stand post for solar agriculture





Installation side :

Open field/Ground

Module Angle:

 0~60 degree

Max wind speed:

Up to 80m/s

Snow load:

Up to 1.4KN/m2

Material :

AL6005-T5 &SUS304

Module orientation:

Lanscape ,portrait

Foundation:

Concrete base ,Grounds screw

Standard :

 AS/NZS S1170 , JISC8955:2017



一本足ソーラーシェアリング架台


agriculture farming

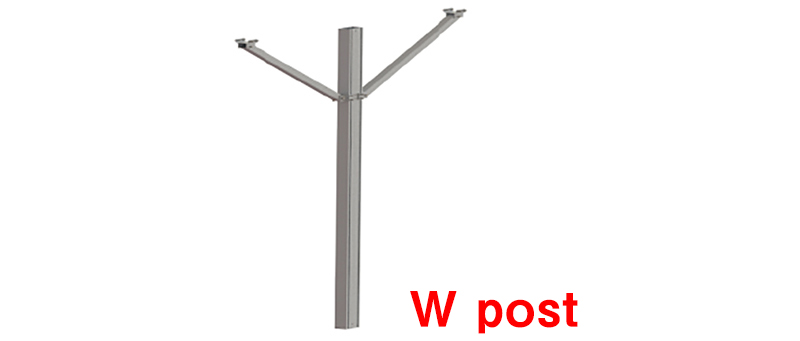

1. Free stand post  make the structure easier and faster for the installation



solar for greenhouse

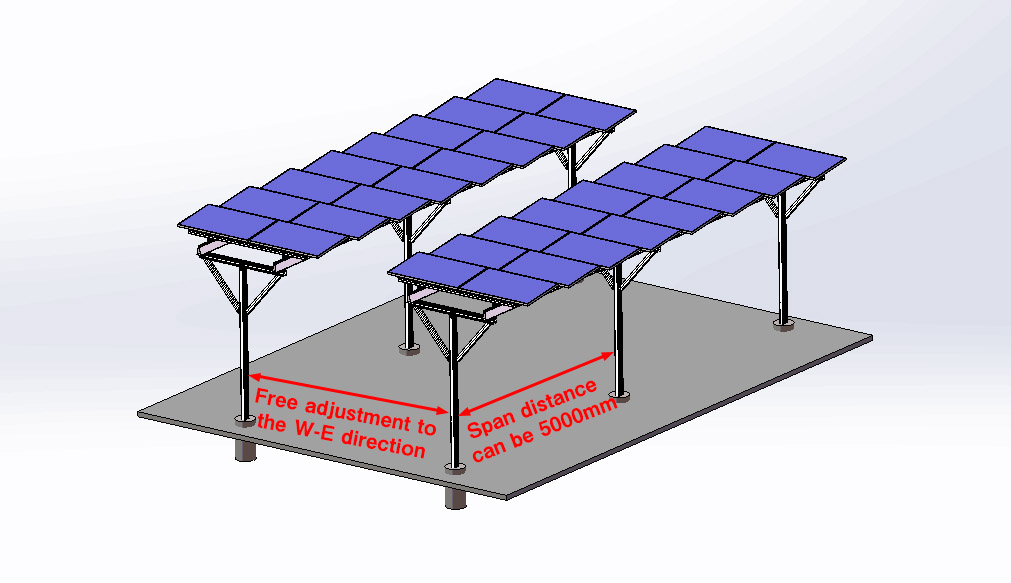

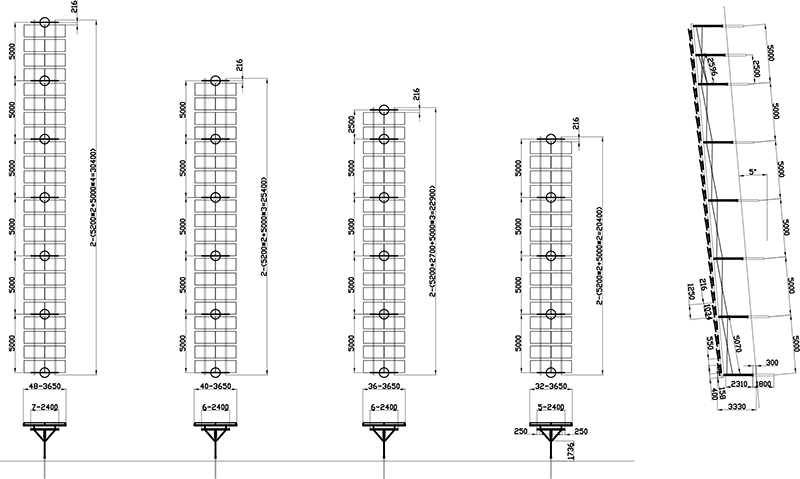

2. The  span distance for N-S can be more than 5000mm, and free adjustment on the W-E direction.

More freely for the large agriculture vehicles to pass through , and make the agricultrue  operation to be easier and more efficient.

Free stand solar farm

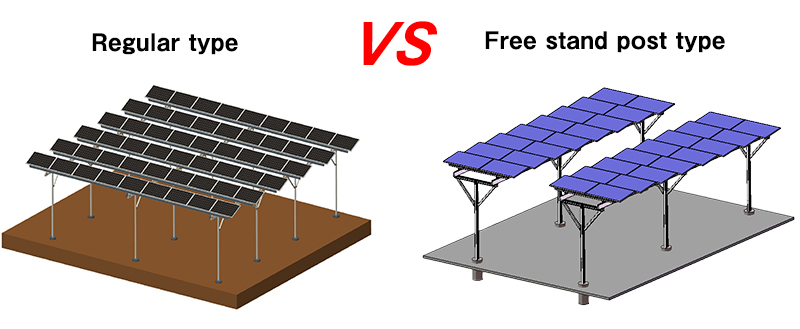

3. Free stand  structure make it easier and better for the slope areas.


farming & agriculture




solar agriculture farm


solar farms on agricultural land




Q1: Are you a Factory?

A: Yes. We are a factory who is specialized in the producing the solar mounting kits in Xiamen, China. Our goods including solar mounting components, also the whole mounting system, including roof mounting, Ground Mounting, Carport, Solar Farm and also the OEM service.


Q2: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Spot check  will be done for each procedure during our goods preparing.  And before shipment, all will be check again.
Third Party Inspection is accepted.


Q3: Can I get sample before we place the order ?

A: Yes. Samples can be avaible anytime if you need.


Q4: How can I get a quotation?
A: 1. If for the regular components, just show us the item No. and quantity, we will quote you immediately.
    2. If for the OEM componnets, show us the technical drawing or the sample, we will show you  our drawing and then quote you after got your confirmation to the drawing.

  3. If for the whole mounting solution,  to make sure can provide the most appropriate quotation, some more information about the project will be needed:

1) Solar panel qty. and dimension (LxWxT) of the panel

2) Panel/ structure tilt angles
3) Max wind load and snow load
4) Panel layout plan or the roof/ground size (Lx W)
5) Others it may need according to different solution
