Brand:
UISOLARItem NO.:
Solar farmShipping Port:
Xiamen,ChinaLead Time：

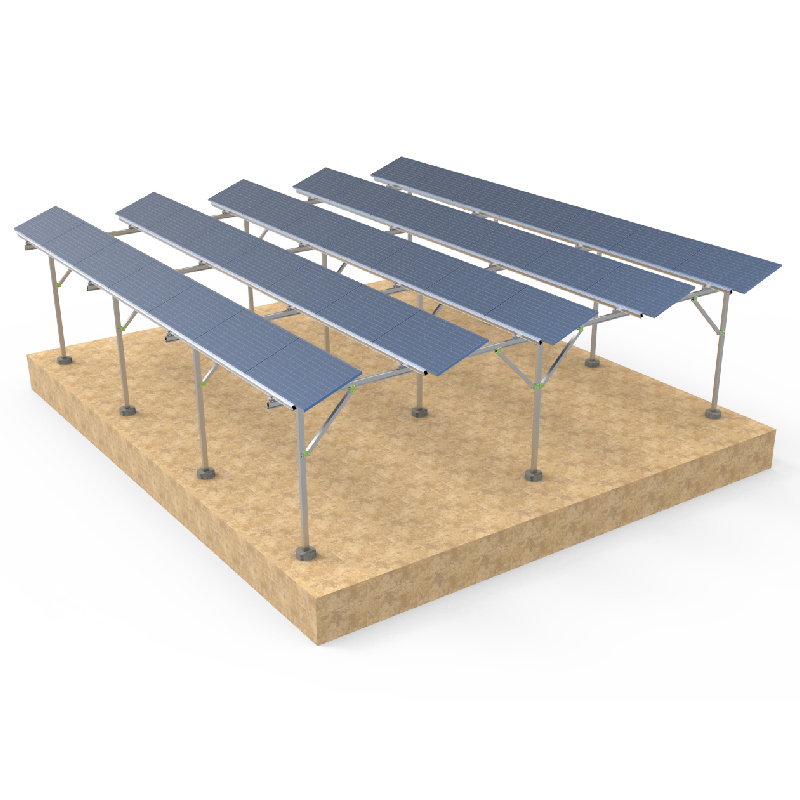

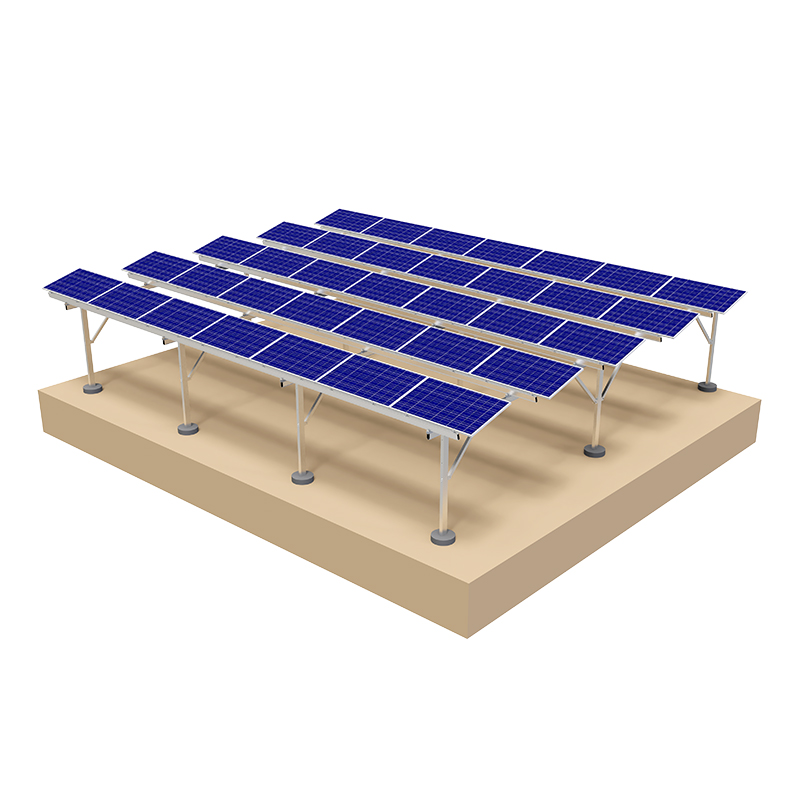

20daysPhotovoltaic farmland mounting bracket
|
Installation side : |
Open field/Ground |
|
Module Angle: |
0~60 degree |
|
Max wind speed: |
Up to 80m/s |
|
Snow load: |
Up to 1.4KN/m2 |
|
Material : |
AL6005-T5 &SUS304 |
|
Module orientation: |
Lanscape ,portrait |
|
Foundation: |
Concrete base ,Grounds screw |
|
Standard : |
AS/NZS S1170 , JISC8955:2017 |

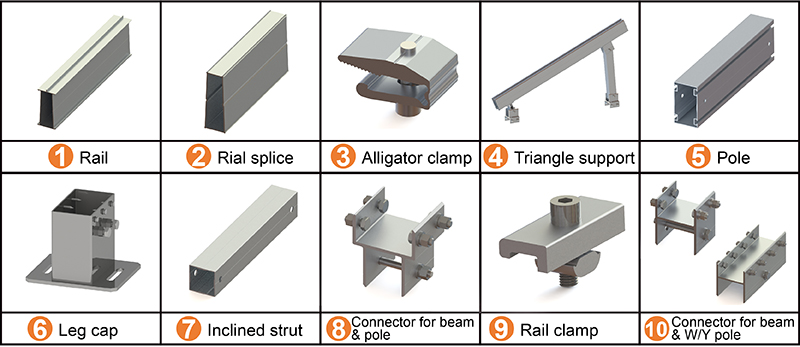

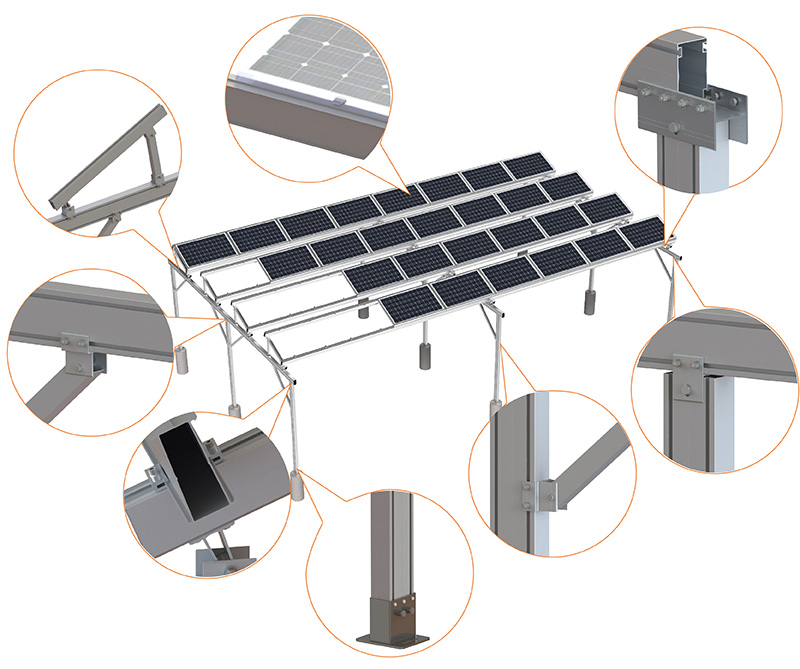

Mounting Structure Type
1.Multiple choice

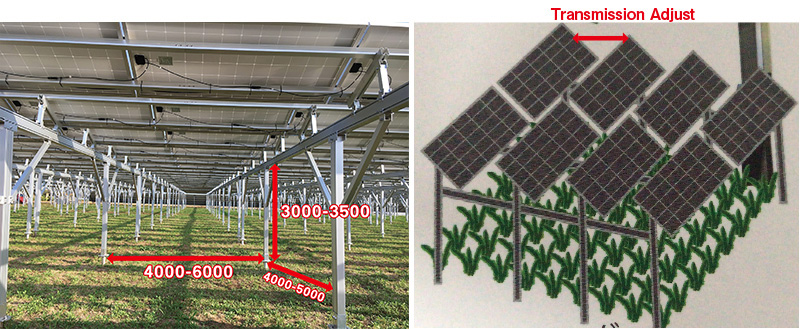

2. Max 6.5*5m length , Easy access for large machinery.
Suitable for crop Transmission adjustment design.
3. Sloping ground available

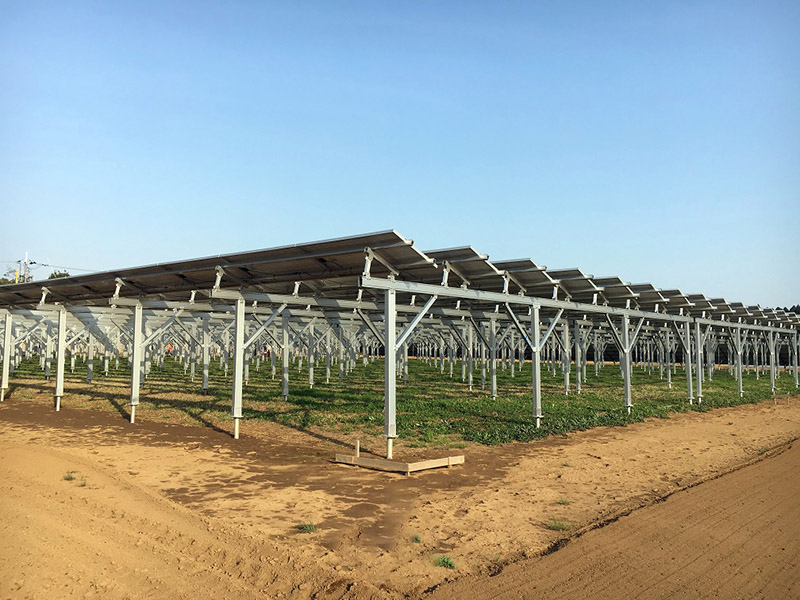

The solar farm structure can not only for flat ground, also for inclined mountain ground, which can make full utilization of ground.
Q1: Are you a Factory?
A: Yes. We are a factory who is specialized in the producing the solar mounting kits in Xiamen, China. Our goods including solar mounting components, also the whole mounting system, including roof mounting, Ground Mounting, Carport, Solar Farm and also the OEM service.
Q3: Can I get sample before we place the order ?
A: Yes. Samples can be avaible anytime if you need.
3. If for the whole mounting solution, to make sure can provide the most appropriate quotation, some more information about the project will be needed:
1) Solar panel qty. and dimension (LxWxT) of the panel
UISOLAR developed a new solar farm that can overcomes some more challenges and can better working on sloped lands and using large agriculture Veicles In the newly developed Free -Stand post solar farm product, by using a free stand support to get more freedom in installing the agricultural machinery, which will make it possible to use the Mechanized operations on the slopes areas, such as orchards and pastures.
Applicable to corrugated or trapezoidal iron roofs. (1)The bracket is fixed to the roof with screws and is usually equipped with a rubber gasket at the bottom to ensure waterproofing. It can be directly connected to the photovoltaic track and is easy to install. (2) Customized trapezoidal bracket Designed for trapezoidal iron roofs, it can accurately match the trapezoidal corrugations of the roof. There is a special waterproof rubber pad at the bottom of the bracket, which ensures a firm installation and excellent waterproof performance.
Solar Mounting Bracket-Tin roof kit, designed to provide a robust and efficient solution for solar panel installation on rooftops. This innovative bracket system is crafted from high-quality materials, ensuring durability and resistance to harsh weather conditions.Easy installation and High-Strength Construction.
The R22#55 rail, hanger bolt, and L-feet combination is a great choice for installing solar panels because it's both strong and easy to set up. It suitable for corrugated or trapezoidal roof.
UISOLAR single pole carport is designed for both commercial, utility and residential carport structures with easy installation and highly pre-assembled. No welding and cutting are needed for the installation.
UISOLAR clamping hooks are the railless solution for the installation of Metal Roof, with different clamping hooks applied to different shape of metal roof. UI-TR series Standing seam clamp is fixed to the raised metal sheet on the roof, Non penetration is needed. SS-04 series mounting kit is designed for trapezoidal shape metal roof sheet. This is the common hook for most steel roof.
Solar flashing is a component used in the installation of solar panels on rooftops. It is designed to protect the roof and the solar panel system from water infiltration while ensuring a secure and weathertight seal. It plays a critical role in protecting the building and the solar system from water damage, ensuring the longevity and effectiveness of the solar energy system.
UISOLAR steel ballast mounting is suitable for flat concrete roof, it's made of steel with galvanized zinc surface, anti-corrosion, and without penetrating the roof surface.
UISOLAR grounding system is used for the Grounding purchase.The grounding washers/clips are used for the grounding each module and the guide rail with the pinholes on the wahsers to pierce the anodizing layer of the aluminum rails.We have different types of grounding washers for different rails'choices . Material : Grounding washers : SUS304 Grounding lug : Al6005-T5& SUS304 Bounding Jumper: Copper & SUS304
As global demand for renewable energy continues to grow, photovoltaic projects are rapidly becoming a significant segment of the energy industry. For such projects, selecting the appropriate foundation support system is crucial. Among various foundation types, ground screws stand out for their unique advantages and have become the ideal foundation solution for photovoltaic mounting. This article will discuss in detail the benefits of using ground screws as bases for photovoltaic projects and how they help projects achieve higher economic efficiency and better performance.
L feet and hanger bolts are used in tin roof installation. Commonly used hanger bolts are M10*200, M10*250 and M12*300.Of course, customized are available here.
The Adjustable triangle solar brackets is more versatile than traditional ballast mount on flat roof installation for solar panel brackets. It can be installed penetrate into concrete roof and tin roof. It can be changed the title angle according to the needs of projects. Fold design allows for easy transportation, cost-effective warehousing and easy mounting.
Universe Solar(UISOLAR) is a high-tech enterprise specializing in the development,manufacturing and marketing of PV mounting. With our top quality and service, UISOLAR mountings are welcomed by most of the installers, distributors, and EPC ect. all over the world.
