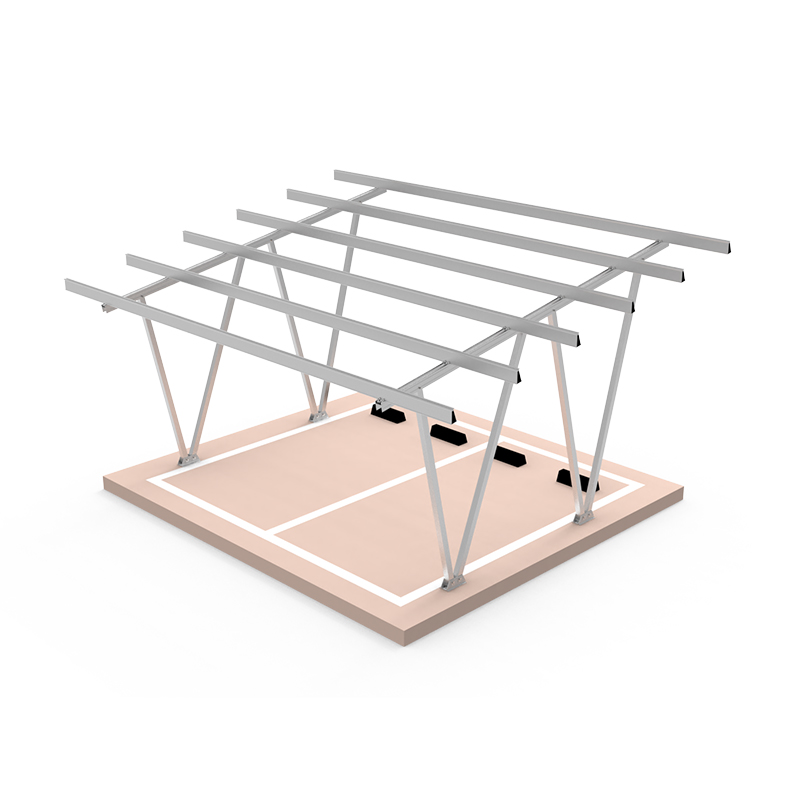

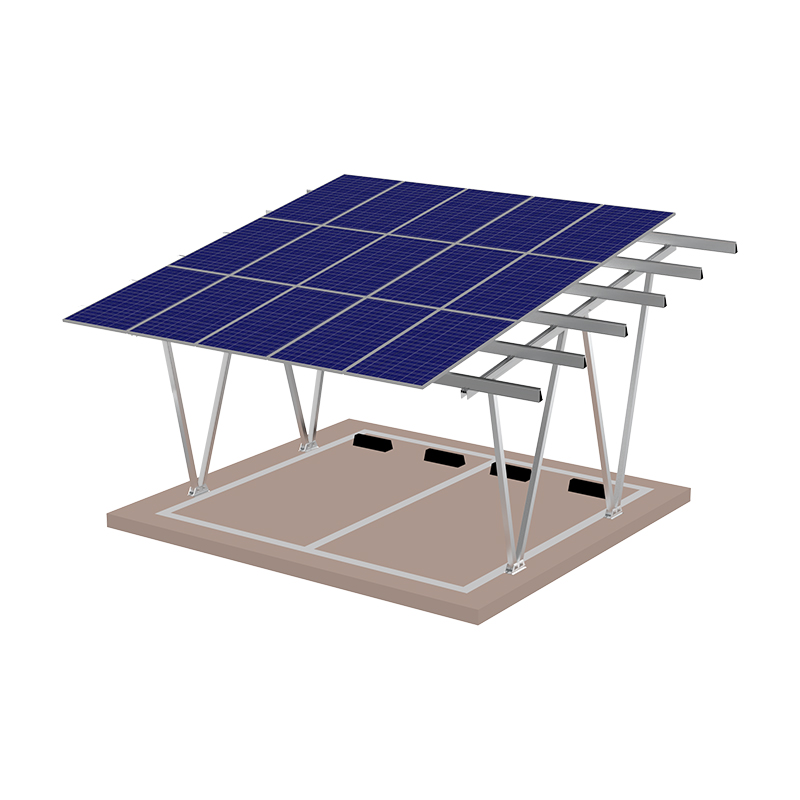

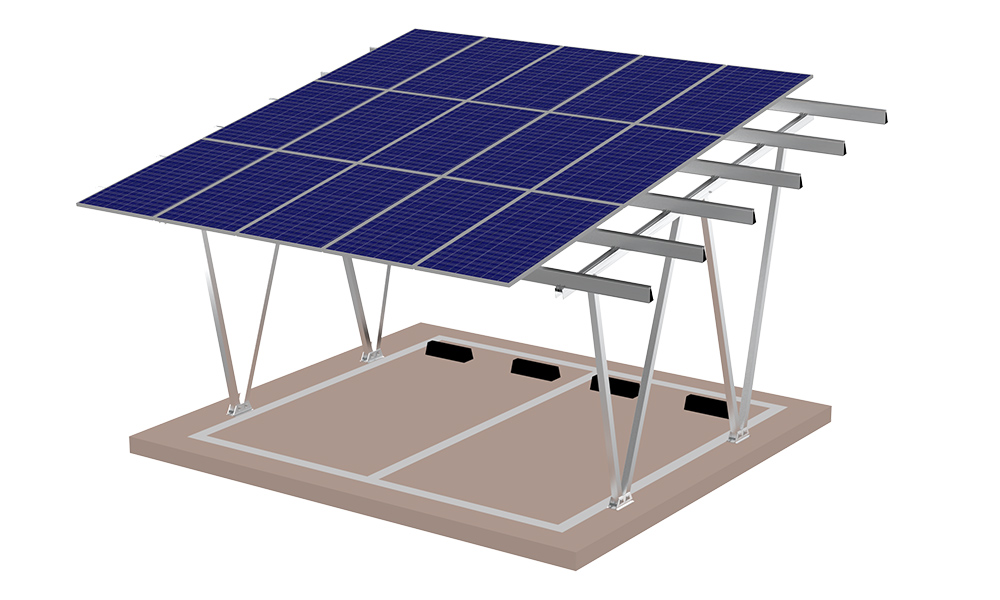

Solar Carport Mount Structure Waterproof Windproof
The aluminum solar carport is updated with waterproof and windproof function and can be used for commerical and residential areas.
The UISOLAR Carport can be both for waterproof or no need waterproof.
Different base( Concrete base and ground screw base) can be workable.
Brand:
UISOLARPayment:
T/T, L/CProduct Origin:
Fujian, ChinaColor:
SilverShipping Port:
Xiamen ChinaLead Time：
15 daysInstallation site:
Open field / GroundMax. wind speed:
60m/sSnow load:
1.4kn/m^2Foundation type:
Ground screw , concrete blockMaterial:
Al6005-T5 & SUS304Aluminum Solar Carport
|
Installation Site: |
Open field / Ground |
|
Tilt Angel: |
0-30 deg |
|
Max wind speed load: |
60m/s |
|
Snow Load : |
1.4kn/m^2 |
|
Height: |
Customized |
|
Foundation: |
Ground screw , concrete block |
|
Material: |
Al6005-T5 & SUS304 |
|
Warranty: |
10 Years |
|
Service Life: |
25 Years |

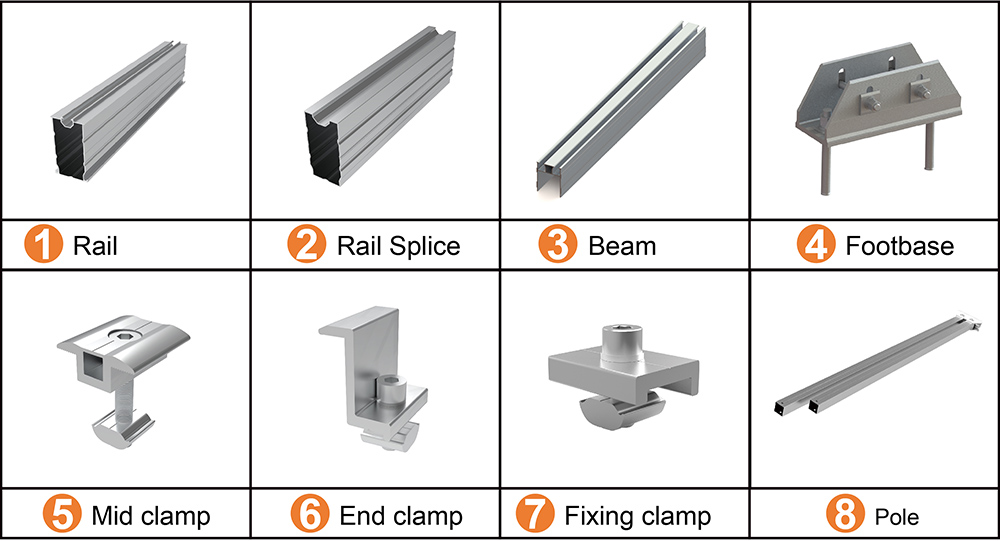

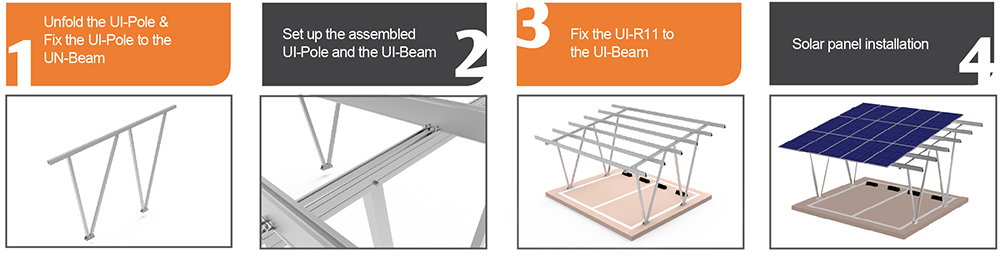

1. Highly pre-assembled make it easier for the installation and time saving.
2. Aluminum material can be better for the anti corrosion.
3. Aluminum make the whole structure to be more beautiful.
4. Different direction parking is available.
Case reference
The aluminum solar carport is updated with waterproof and windproof function and can be used for commerical and residential areas.
The four poles carport is easy installed and save space which can be used for commerical and residential installation.

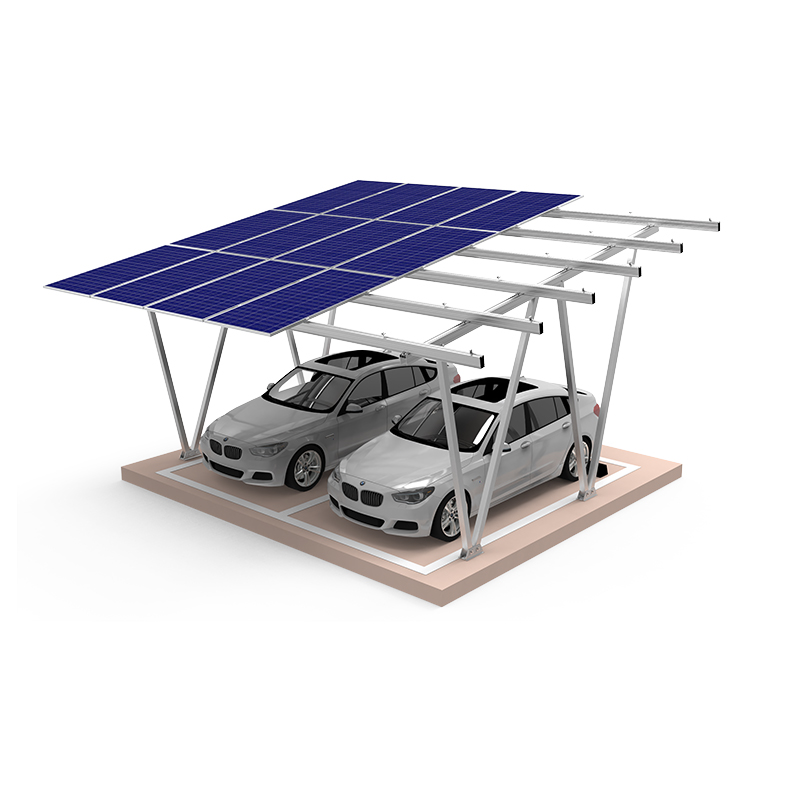

The solar carport can be used for commerical and residential areas to protect cars from rain and snow and save electricity cost.
The UISOLAR Carport can be both for waterproof or no need waterproof. The Aluminum Pile solar carport have more space for cars and easier to do parking. Different base( Concrete base and ground screw base) can be workable.
BIPV Waterproof Carport Solar Mounting System is a highly pre-assembly system which is suitable for both residential and commercial projects. While protecting the car from rain, snow, wind and frost damage, it can also provide power generation benefits, which can power the electric cars. The whole structure is made of aluminum and fastener will be stainless steel . The capacity can be customized according to customer's requirements. OEM is acceptable.
The fixed triangle solar brackets can be pre-assemble and easy installed. It can be strong with triangle shape. It is wide use and can be installed on concrete roof and tin roof.
New Aluminum ballast mounting is suitable for flat Concrete roof. Aluminum structure don't need penetrate to the roof, all the solar panel will connect as a whole part and increase the strength. Adjustable bracket range is 10-35 deg.
Advantage : 1. Universal used for most type of panels 2. Sandbalasted surface make it RUST-RESISTANT 3. Highly pre-assembled make it easier for the installation and save much labor cost
The Ground Bolt can also accept customized as request. The regular diameter is 76mm, and the Ground Plate diameter can be 200mm and 220mm. The length can be 1.2m, 1.6m, 1.8m and 2m. The thickness is 2.5mm, 2.75mm, 3.0mm. Hot dip galvanized average thickness is more than 80μm.
FRP walkways are acid-base corrosion resistant, insulating and easy to install. It is specially designed to ensure the safety of the solar rooftop walkway area. It not only effectively extends the service life of commercial and industrial rooftop, but also provides a safe pathway for the equipment installed on the roof. FRP walkways system include gratings and connection fittings.They are used in power plants, chemical plants, water treatment and oil platforms and other corrosion environment.
Applicable to corrugated or trapezoidal iron roofs. (1)The bracket is fixed to the roof with screws and is usually equipped with a rubber gasket at the bottom to ensure waterproofing. It can be directly connected to the photovoltaic track and is easy to install. (2) Customized trapezoidal bracket Designed for trapezoidal iron roofs, it can accurately match the trapezoidal corrugations of the roof. There is a special waterproof rubber pad at the bottom of the bracket, which ensures a firm installation and excellent waterproof performance.
The aluminum solar carport is updated with waterproof and windproof function and can be used for commerical and residential areas.
Universe Solar(UISOLAR) is a high-tech enterprise specializing in the development,manufacturing and marketing of PV mounting. With our top quality and service, UISOLAR mountings are welcomed by most of the installers, distributors, and EPC ect. all over the world.
