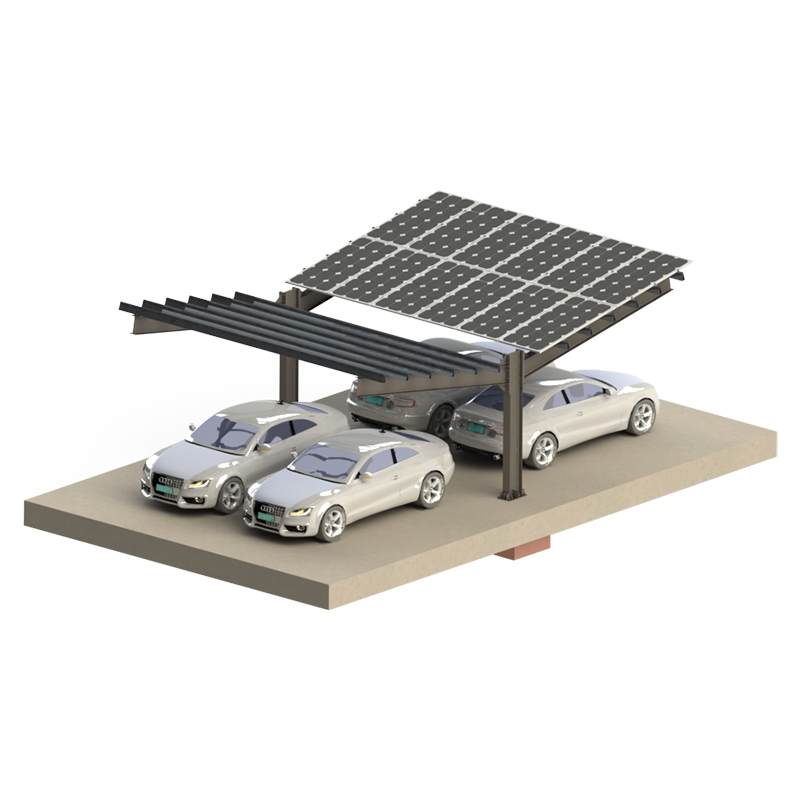

UISOLAR single pole carport is designed for both commercial, utility and residential carport structures with easy installation and highly pre-assembled. No welding and cutting are needed for the installation.
Brand:
UISOLAR
1. High pre-assembled make the installation to be easier and cost save
2. Eay parking : It allows to park from any direction
3. HDG steel make the structure to be stronger and more stable.
4. Parking area can be customized.
|
Installation Site |
Landscape /portrait |
|
Foundation |
Concrete base |
|
Panel tilt angles |
0-15degrees |
|
Protection |
Q235B Hot dip galvanized (80um) |

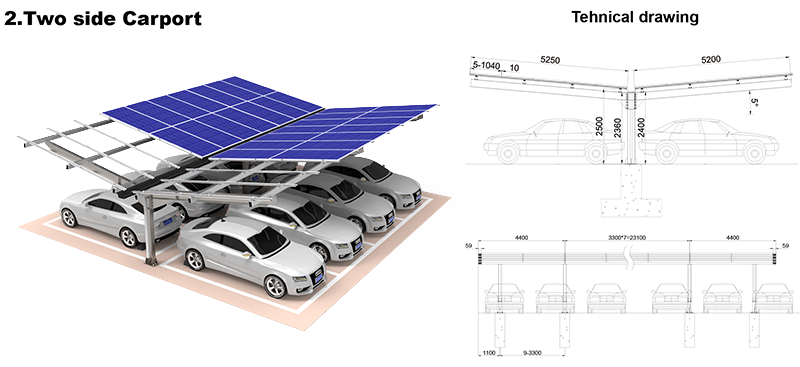

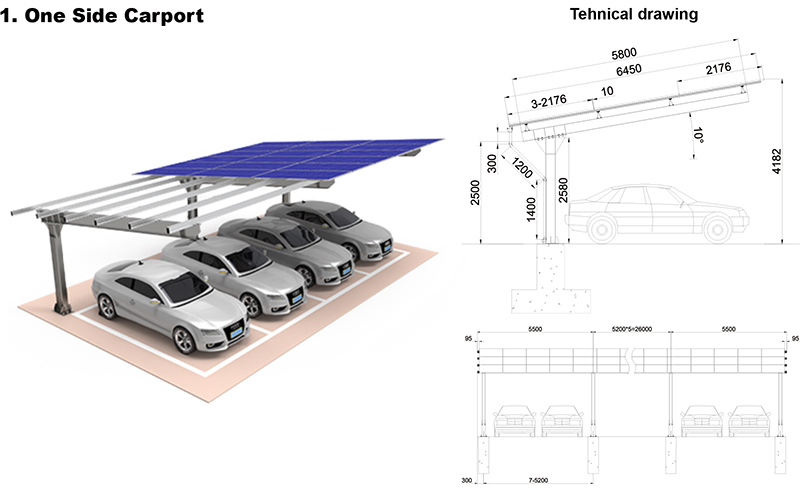

Different types of carport
Q1: Are you a Factory?
A: Yes. We are a factory who is specialized in the producing the solar mounting kits in Xiamen, China. Our goods including solar mounting components, also the whole mounting system, including roof mounting, Ground Mounting, Carport, Solar Farm and also the OEM service.
Q2: How can we guarantee quality?
A: Always a pre-production sample before mass production;
Spot check will be done for each procedure during our goods preparing. And before shipment, all will be check again.
Third Party Inspection is accepted.
Q3: Can I get sample before we place the order ?
A: Yes. Samples can be avaible anytime if you need.
Q4: How can I get a quotation?
A: 1. If for the regular components, just show us the item No. and quantity, we will quote you immediately.
2. If for the OEM componnets, show us the technical drawing or the sample, we will show you our drawing and then quote you after got your confirmation to the drawing.
3. If for the whole mounting solution, to make sure can provide the most appropriate quotation, some more information about the project will be needed:
1) Solar panel qty. and dimension (LxWxT) of the panel
2) Panel/ structure tilt angles
3) Max wind load and snow load
4) Panel layout plan or the roof/ground size (Lx W)
5) Others it may need according to different solution
The UISOLAR Carport can be both for waterproof or no need waterproof. The Aluminum Pile solar carport have more space for cars and easier to do parking. Different base( Concrete base and ground screw base) can be workable.
1. Remove stagnant water automatically 2. Increase power generation to prove the service life of solar panels. 3. Easy installation. Fasten the frame of the solar panel automatically. Suitable for frame thick of solar module: 30 mm, 35 mm, 40 mm 4. Solar Panel Cleaning Clip is a rectangular self-stick polymer strip containing a water-inducing agent. stick to the frame of the photovoltaic module, there is no need to make adjustments to the components. In case of rain, the sludge water collected at the bottom of the frame is automatically directed over the frame and discharged and discharged in the stage of sludge water formation! 5. Through tests, it was found that the water accumulation and dust accumulation along the boundary of the components of the sludge belt was essentially eliminated after the installation of the water guide adhesive, the power generation gain increased from 2% to 10%. 6. Stainless steel material, long service life, no need for frequent replacement.
To ensure safety, solar project with fence more durable and safer. To prevent accidents, the fence can prevent children entering to causing accidents.
The new type roof mounting system can fit well on standing seam metal roof sheet and is a very economical solution.
Pile Ground Mounting is one of strong structure of UISOLAR. Steel post can easily dig into the earth around 1.4 meter by machine. The Single Ground mounting have highly corrosion resistant as the hot-dip galvanizing average layer thickness is more than 80μm.
The solar carport can be used for commerical and residential areas to protect cars from rain and snow and save electricity cost.
The four poles carport is easy installed and save space which can be used for commerical and residential installation.
UISOLAR solar clamps are made of Aluminum 6005-T5 and can be suitable for the solar panel with the thickness 25~50mm. It can be equipped with different nuts and applicated with different length of bolt to meet different requirement. The color can be both Silver and Black. Grounding pins can be added to the clamps to make it grounding purchase.
Applicable to corrugated or trapezoidal iron roofs. (1)The bracket is fixed to the roof with screws and is usually equipped with a rubber gasket at the bottom to ensure waterproofing. It can be directly connected to the photovoltaic track and is easy to install. (2) Customized trapezoidal bracket Designed for trapezoidal iron roofs, it can accurately match the trapezoidal corrugations of the roof. There is a special waterproof rubber pad at the bottom of the bracket, which ensures a firm installation and excellent waterproof performance.
Aluinum Barricade is designed to protect workers from falling during the installation and maintainance. Aluminum material is light and cost little weight to the roof.
Pitched Tile Roof Mounting offers perfection solution for installation on tile roofing.
Ground Mounting 90deg Vertical ground The Ground mounting have highly corrosion resitant as the hot dip galvaning average layyer thickness is more than 80um. 1. It can applied to concrte block and piling foundation. 2. Easy to clean solar panels 3. The structure is simple and the bracket is fixed by bolts and pressure blocks.
