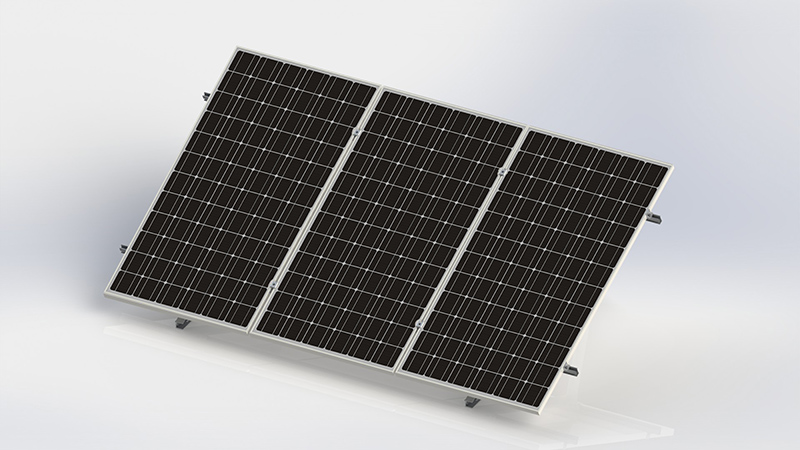

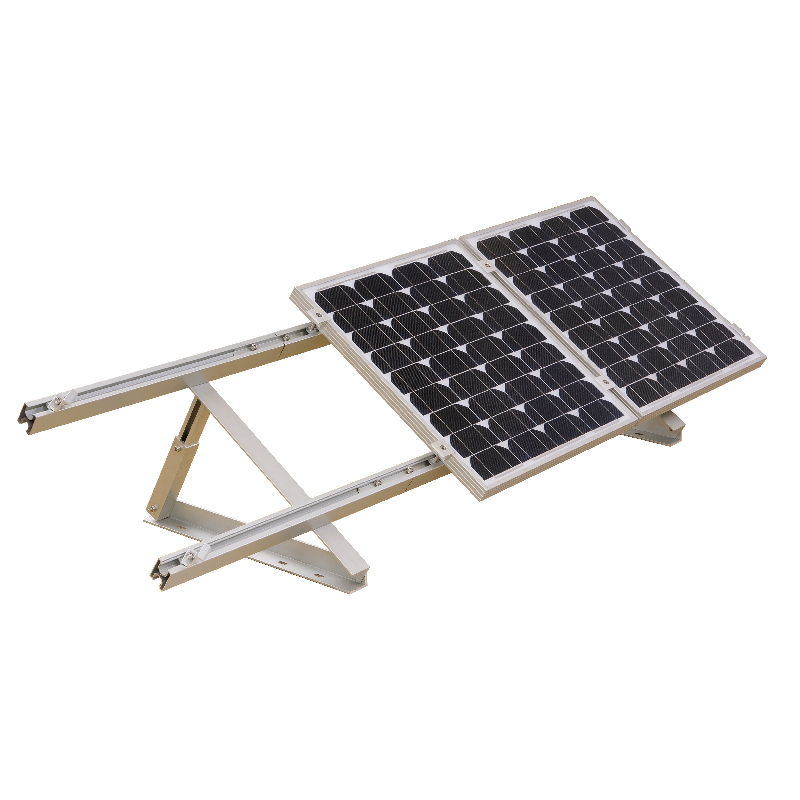

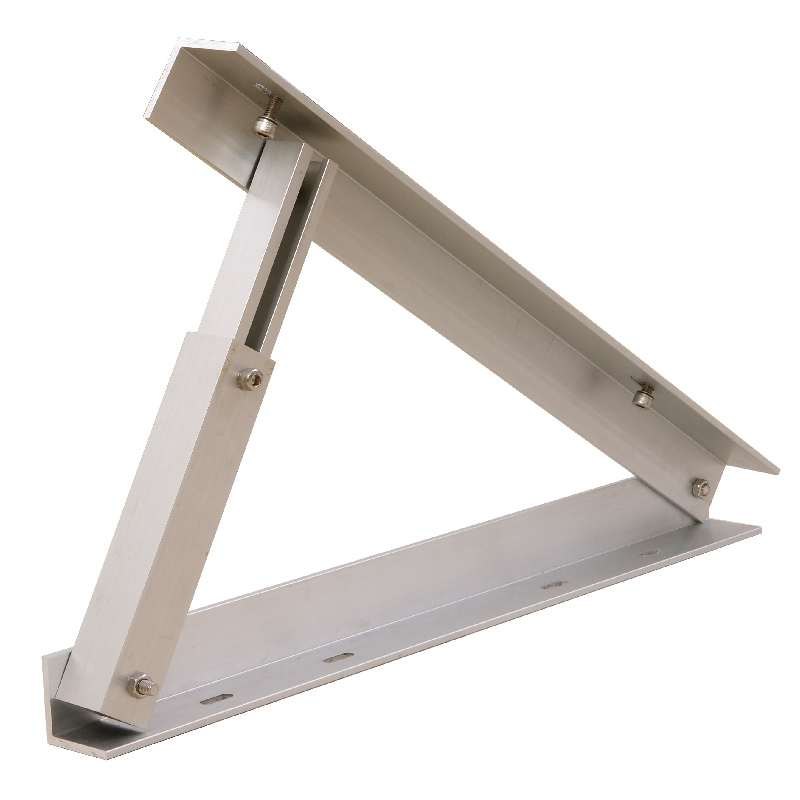

The Adjustable triangle solar brackets is more versatile than traditional ballast mount on flat roof installation for solar panel brackets. It can be installed penetrate into concrete roof and tin roof. It can be changed the title angle according to the needs of projects. Fold design allows for easy transportation, cost-effective warehousing and easy mounting.
Brand:
UISOLARItem NO.:
Adjustable TriangleProduct Origin:
ChinaColor:
silver,blackShipping Port:
xiamen portLead Time：
20 daysInstallation site:
Pithch tin roof, concrete roofMax. wind speed:
60m/sSnow load:
1.4KM/m²Standards:
AS/NZS1170, JISC8955:2017Adjustable Triangle Solar Brackets
|
Module Angle |
10-15 degrees, 15-30 degrees, 20-40 degrees,30-60 degrees |
|
Max. Wind Speed |
60m/s |
|
Snow Load |
1.4kN/m2 |
|
Material |
Al6005-T5&SUS304 |
|
Max.Building Height |
Customized available |
Versatility
Available use on the flat concrete roof or pitched tin roof.
Flexibility
With flexible title angle designed is well used.
Quick and Easy Installation

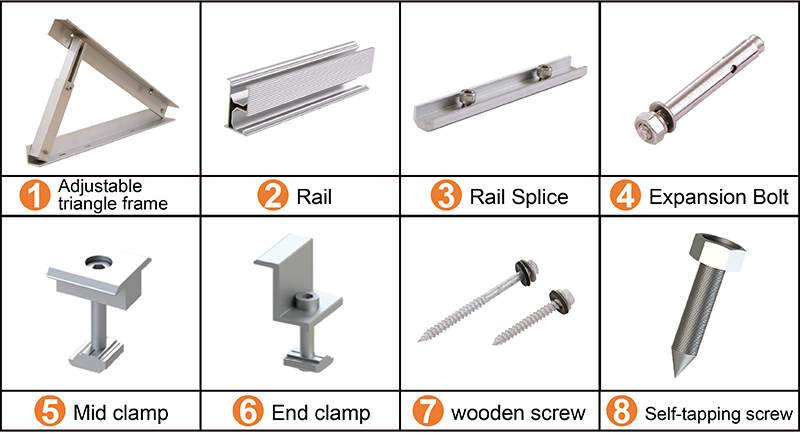

Installation can be completed in a short time with 5 main components.
Strength Solution
All design can be strong enough after strength analysis.
New Adjustable ballast mounting is suitable for flat Concrete roof . Aluminum structure can adjust easily as per the request. No penetration to the roof, all the solar panel will connect as a whole part and increase the strength. Adjustable bracket range is 10-35 deg.
New Aluminum ballast mounting is suitable for flat Concrete roof. Aluminum structure don't need penetrate to the roof, all the solar panel will connect as a whole part and increase the strength. Adjustable bracket range is 10-35 deg.
The fixed triangle solar brackets can be pre-assemble and easy installed. It can be strong with triangle shape. It is wide use and can be installed on concrete roof and tin roof.
UISOLAR steel ballast mounting is suitable for flat concrete roof, it's made of steel with galvanized zinc surface, anti-corrosion, and without penetrating the roof surface.
UISOLAR MAC steel ballasted mounting brackets are suitable for flat concrete roofs. Made from MAC steel, which is a zinc-aluminum-magnesium alloy-coated steel, not only offer a price advantage but also ensure the strength of the mounting brackets.
Concrete Roof mounting is designed for the Flat concrete Roof and Ground Mounting for one panel per array. Any Clearance height from the panel and to the ground will be easy to come true to get better heat dissipation. None Penetration to the roof.
Concrete Roof mounting is designed for the Flat concrete Roof and Ground Mounting for one panel per array. Any Clearance height from the panel and to the ground will be easy to come true to get better heat dissipation. None Penetration to the roof.
1. Remove stagnant water automatically 2. Increase power generation to prove the service life of solar panels. 3. Easy installation. Fasten the frame of the solar panel automatically. Suitable for frame thick of solar module: 30 mm, 35 mm, 40 mm 4. Solar Panel Cleaning Clip is a rectangular self-stick polymer strip containing a water-inducing agent. stick to the frame of the photovoltaic module, there is no need to make adjustments to the components. In case of rain, the sludge water collected at the bottom of the frame is automatically directed over the frame and discharged and discharged in the stage of sludge water formation! 5. Through tests, it was found that the water accumulation and dust accumulation along the boundary of the components of the sludge belt was essentially eliminated after the installation of the water guide adhesive, the power generation gain increased from 2% to 10%. 6. Stainless steel material, long service life, no need for frequent replacement.
UISOLAR frameless solar clamps are made of Aluminum 6005-T5 & EPDM and used for the framless solar panel installation. It's approved by First Solar & Canadian Solar & JA Solar. Thin Film Clamps especially for: 1.First Solar series 4 Modules 2.Canadian Solar CS6X-P-FG 3.Trina Solar Duomax TSM-PEG14. 4. JA Solar 5. Other panel with the thickness 4~9mm
UISOLAR rail included two types, one is solar roof rail, another is solar ground rail. Roof rails are used in roof mounting. Ground rais are used in ground mounting. They are made of extruded anodized aluminum and it can be made standard length and customized length . It has silver and black design. These rails are applied in commercial and residential solar system.
As global demand for renewable energy continues to grow, photovoltaic projects are rapidly becoming a significant segment of the energy industry. For such projects, selecting the appropriate foundation support system is crucial. Among various foundation types, ground screws stand out for their unique advantages and have become the ideal foundation solution for photovoltaic mounting. This article will discuss in detail the benefits of using ground screws as bases for photovoltaic projects and how they help projects achieve higher economic efficiency and better performance.
UISOLAR grounding system is used for the Grounding purchase.The grounding washers/clips are used for the grounding each module and the guide rail with the pinholes on the wahsers to pierce the anodizing layer of the aluminum rails.We have different types of grounding washers for different rails'choices . Material : Grounding washers : SUS304 Grounding lug : Al6005-T5& SUS304 Bounding Jumper: Copper & SUS304
Universe Solar(UISOLAR) is a high-tech enterprise specializing in the development,manufacturing and marketing of PV mounting. With our top quality and service, UISOLAR mountings are welcomed by most of the installers, distributors, and EPC ect. all over the world.
