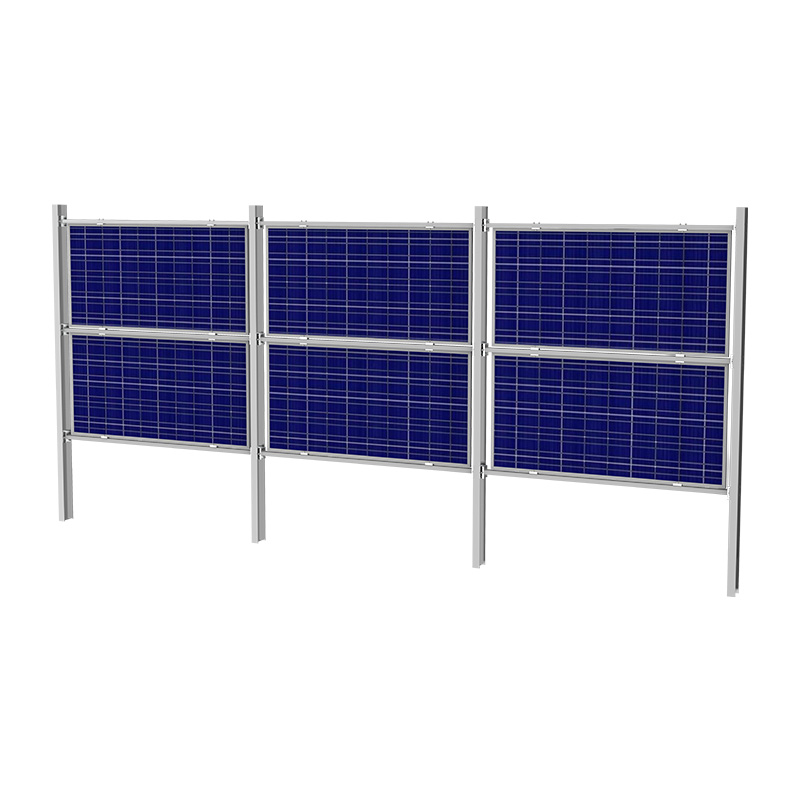

Vertical Ground Mounting

Vertical Ground Mounting


Ground Mounting  90deg Vertical  ground The Ground mounting have highly corrosion resitant as the hot dip galvaning average layyer thickness is more than 80um.

1. It can applied to concrte block and piling foundation.

2. Easy to clean solar panels

3. The structure is simple and the bracket is fixed by bolts and pressure blocks.





  • Brand:

    UISOLAR
  • Shipping Port:

    Xiamen,China

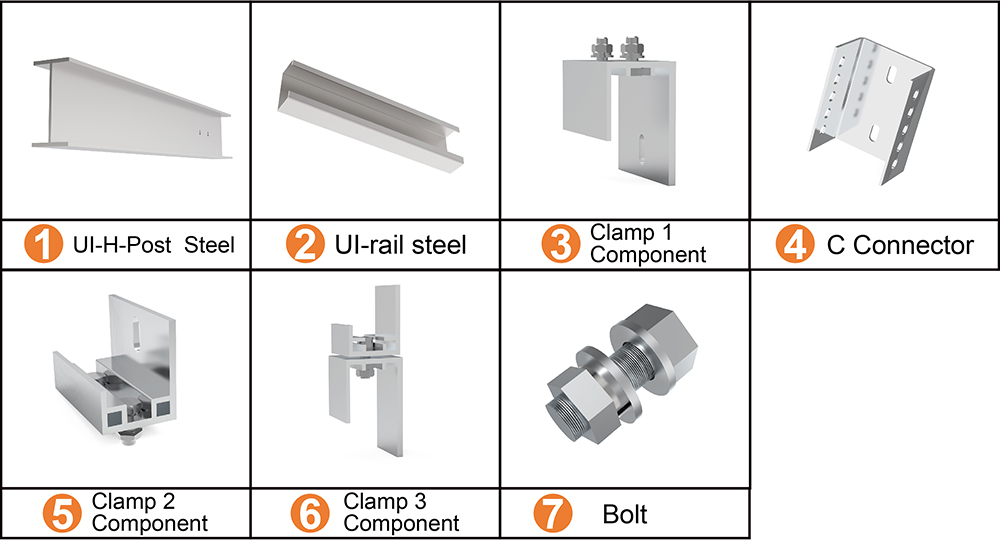

  • Product Details

Vertical Ground Mounting







Installation Site:

Open field / Ground

Tilt Angel:

90deg

Module Orientation

Landscape

Max wind speed load:

60m/s

Snow Load :

1.4kn/m^2

Height:

Customized

Foundation:

Pile or concrete

Material:

Q235B Hot Dip& AL6005-T5







1. It can applied to concrte block and piling foundation.


2. Easy to clean solar panels.


3. The structure is simple and the bracket is fixed by bolts and pressure blocks.

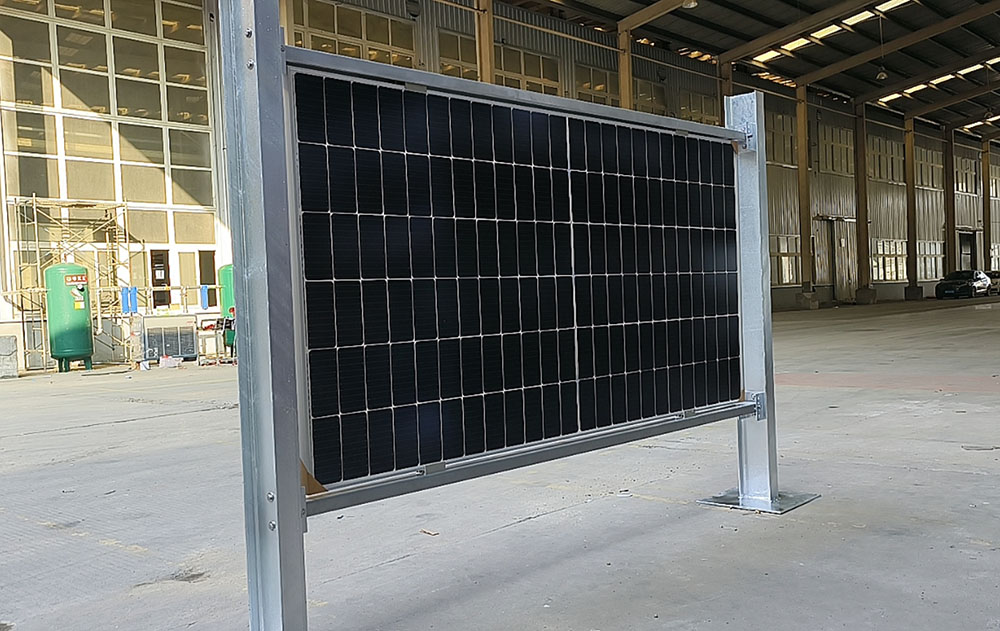

Sample Reference
