The Ground Bolt can also accept customized as request. The regular diameter is 76mm, and the Ground Plate diameter can be 200mm and 220mm. The length can be 1.2m, 1.6m, 1.8m and 2m. The thickness is 2.5mm, 2.75mm, 3.0mm. Hot dip galvanized average thickness is more than 80μm.
Brand:
UISOLARItem NO.:
UI-GSColor:
SilverShipping Port:
Xiamen ChinaLead Time：
20 daysInstallation site:
Open fieldMax. wind speed:
60m/sSnow load:
1.4KN/M^2Material:
Q235Standards:
AS/NZS1170,JISC8955:2017

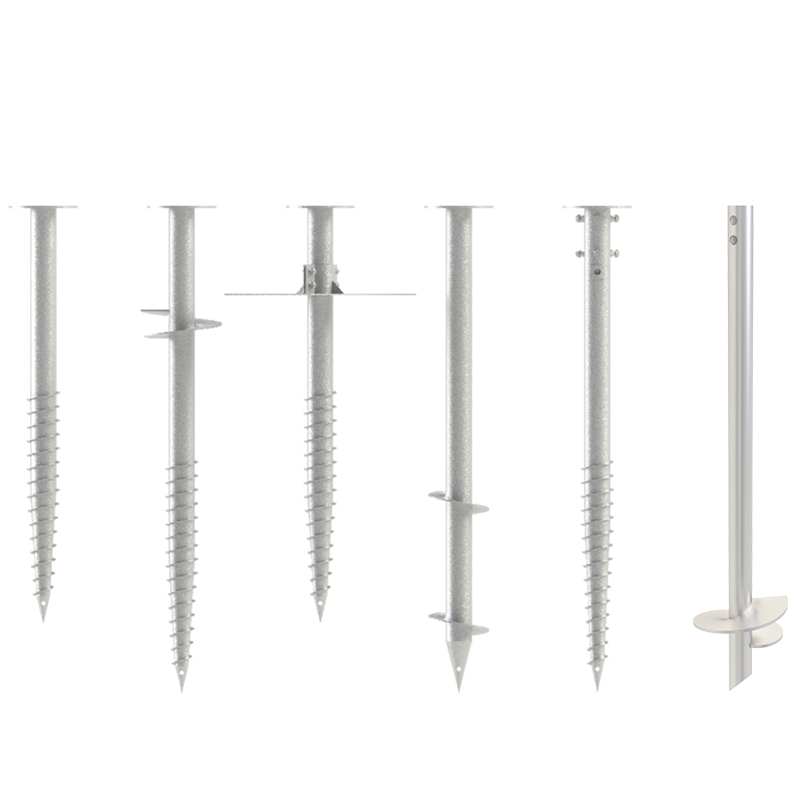

Galvanizing Ground screw
Galvanizing Ground screw can apply to fence system, solar system, flag poles and banners etc. Ground screw make the solar system stronger. All kinds of ground screw shape can fit into different conditions.

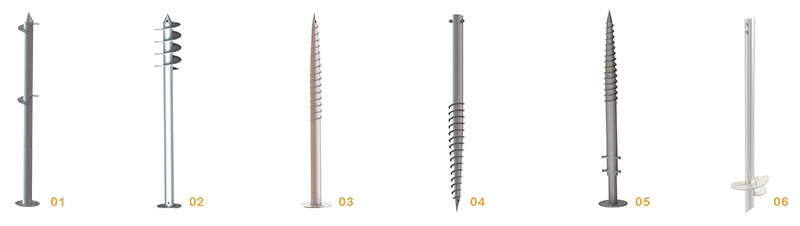

No
Code
Length
Thickness
Diameter
Material
Surface
1
F76*L-2
1200mm 1600mm
1800mm 2000mm 2500mm 3000mm
2.5mm, 2.75mm,
3.0mm
76mm
Steel Q235B
Hot Galvanized
average layer thickness>= 80μm
2
F76*L-4
3
F76*L
4
N76*L
5
F76*L-A
Customized
Ground screw container loading quantity
Length(mm)
1200mm
1600mm
1800mm
2000mm
20GP
1630 pcs
1020 pcs
1020 pcs
850 pcs
40GP
2260 pcs
1820 pcs
1680 pcs
1540 pcs
1. Hot dipped galvanized average layyer thickness on surface is more than 80μm
2. All types top plate can made as client request.
3. The ground screw max diameter is 89mm, the length and thickness also accept customized.
UISOLAR frameless solar clamps are made of Aluminum 6005-T5 & EPDM and used for the framless solar panel installation. It's approved by First Solar & Canadian Solar & JA Solar. Thin Film Clamps especially for: 1.First Solar series 4 Modules 2.Canadian Solar CS6X-P-FG 3.Trina Solar Duomax TSM-PEG14. 4. JA Solar 5. Other panel with the thickness 4~9mm
To ensure safety , solar project with fence more durable and safer. To prevent accidents, the fence can prevent children entering to causing accidents.
To ensure safety, solar project with fence more durable and safer. To prevent accidents, the fence can prevent children entering to causing accidents.
UISOLAR grounding system is used for the Grounding purchase.The grounding washers/clips are used for the grounding each module and the guide rail with the pinholes on the wahsers to pierce the anodizing layer of the aluminum rails.We have different types of grounding washers for different rails'choices . Material : Grounding washers : SUS304 Grounding lug : Al6005-T5& SUS304 Bounding Jumper: Copper & SUS304
UISOLAR clamping hooks are the railless solution for the installation of Metal Roof, with different clamping hooks applied to different shape of metal roof. UI-TR series Standing seam clamp is fixed to the raised metal sheet on the roof, Non penetration is needed. SS-04 series mounting kit is designed for trapezoidal shape metal roof sheet. This is the common hook for most steel roof.
UISOLAR rail included two types, one is solar roof rail, another is solar ground rail. Roof rails are used in roof mounting. Ground rais are used in ground mounting. They are made of extruded anodized aluminum and it can be made standard length and customized length . It has silver and black design. These rails are applied in commercial and residential solar system.
UISOLAR tile roof hooks are used for roman tile roof, flat tile roof, asphalt tile roof and slate tile roof. Material :stainless steel 304 Surface : sandblasted make hooks highly corrosion resistant Accompany accesories components: wooden screws(M6.3*80, Aluminum nut +bolt (M8*25mm allen bolt ) for rail connection
UISOLAR solar clamps are made of Aluminum 6005-T5 and can be suitable for the solar panel with the thickness 25~50mm. It can be equipped with different nuts and applicated with different length of bolt to meet different requirement. The color can be both Silver and Black. Grounding pins can be added to the clamps to make it grounding purchase.
L feet and hanger bolts are used in tin roof installation. Commonly used hanger bolts are M10*200, M10*250 and M12*300.Of course, customized are available here.
Solar cables are designed to connect solar panels for the solar systems. They are dedicated to the pv system direct current(D.C)side . Cables can be used for both indoor and outdoor with high mechanical strength in extreme weather conditions. Cable connectore are used to connect solar panels. The color can be Black and Red.
UISOLAR cable clips are widely used in solar panel array cable positioning, to help prevent damage of the cable insulation. It is made of high quality stainless steel SUS304 material, and it is very easy to install, no special tools needed.
Nuts are usually matched with bolts. Material: Aluminum 6005-T5, SUS304 and Carbon steel
Universe Solar(UISOLAR) is a high-tech enterprise specializing in the development,manufacturing and marketing of PV mounting. With our top quality and service, UISOLAR mountings are welcomed by most of the installers, distributors, and EPC ect. all over the world.
