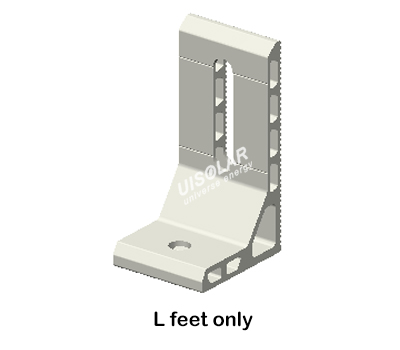

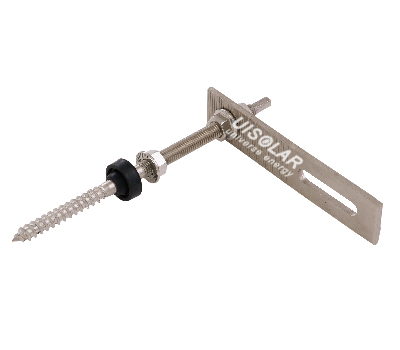

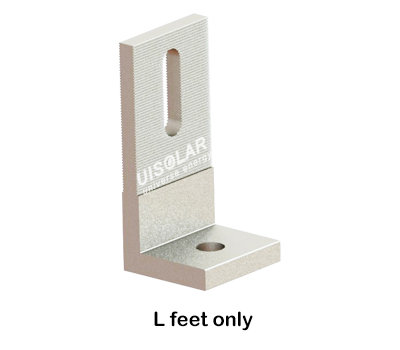

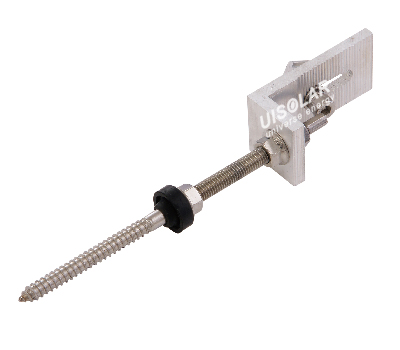

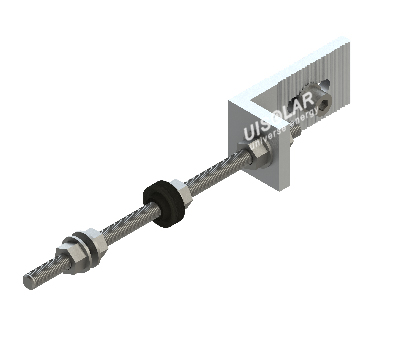

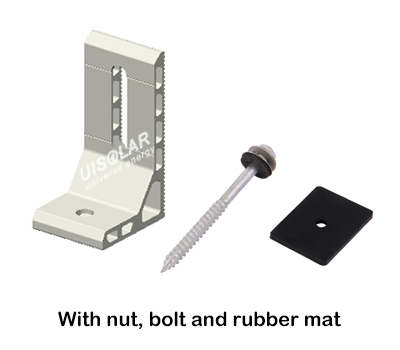

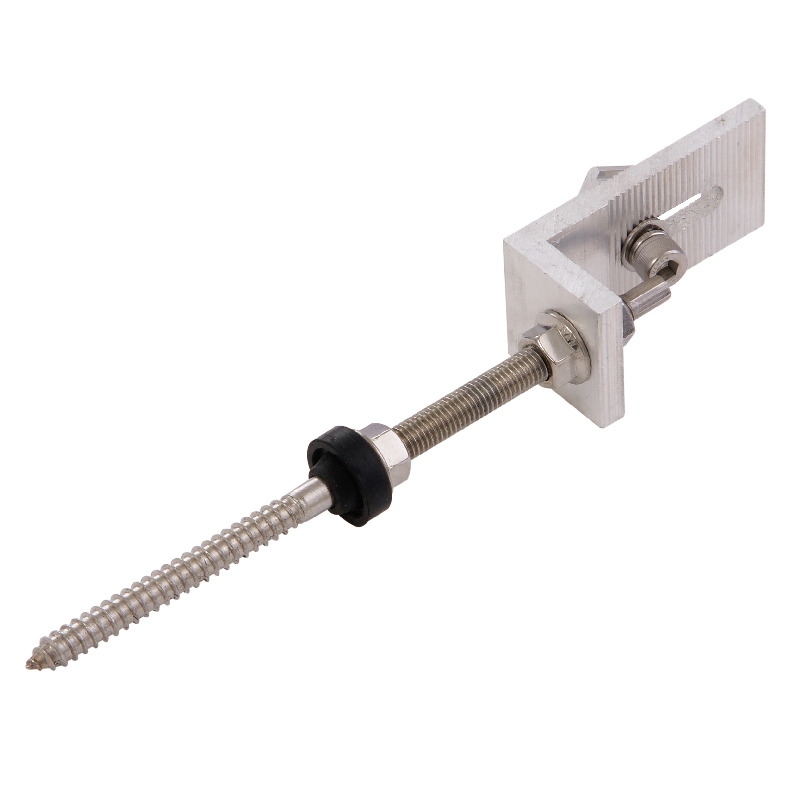

Different type of hanger bolt + L feet

Different type of hanger bolt + L feet

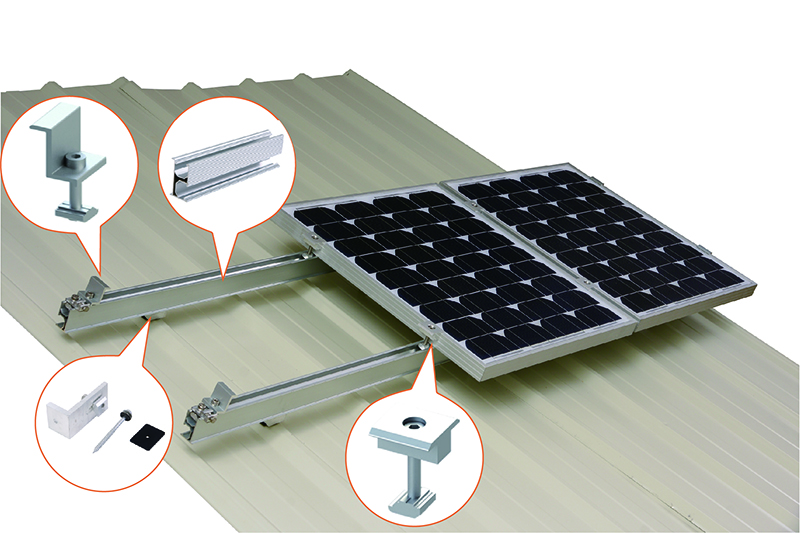

L feet and hanger bolts are used in tin roof installation.

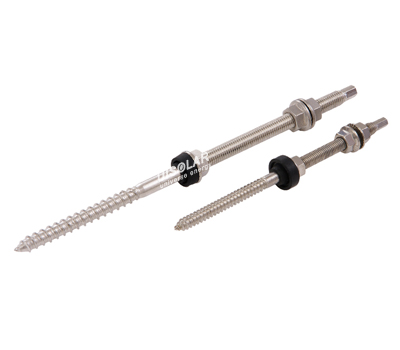

Commonly used hanger bolts are M10*200, M10*250 and M12*300.Of course, customized are available here.

  • Brand:

    UISOLAR
  • Product Details

                                      UI-IK-L                                                                                    UI-IK-L(84/125/160mm)


                                                        UI-IK-L(N)                                                                            UI-IK-L(N)




                                                        UI-IK-H01                                                                            UI-IK-H01L


                                                        UI-IK-H01P                                                                            UI-IK-H04L

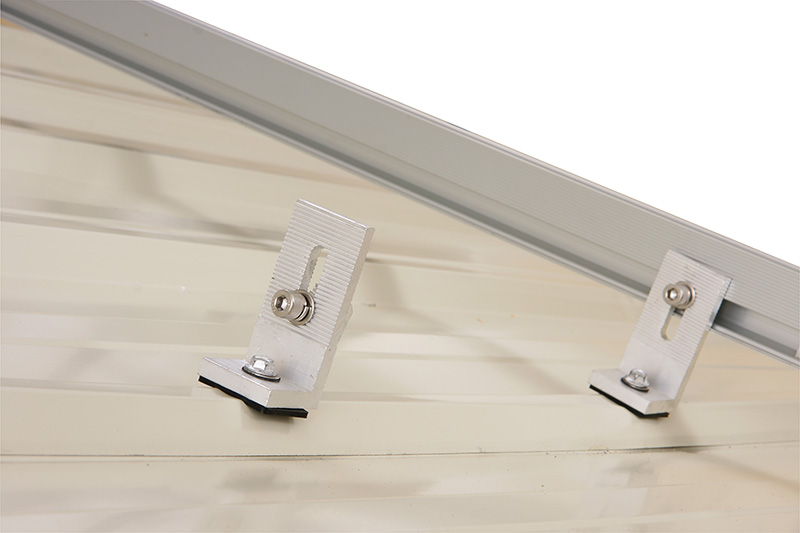

For wooden beam, L feet is always equipped with hanger bolt.

For steel purlin, it's always equipped with threaded bolt.


Installation




Q1: Are you a Factory?

A: Yes. We are a factory who is specialized in the producing the solar mounting kits in Xiamen, China. Our goods including solar mounting components, also the whole mounting system, including roof mounting, Ground Mounting, Carport, Solar Farm and also the OEM service.


Q2: How can we guarantee quality?

A: Always a pre-production sample before mass production;

Spot check  will be done for each procedure during our goods preparing.  And before shipment, all will be check again.

Third Party Inspection is accepted.


Q3: Can I get sample before we place the order ?

A: Yes. Samples can be avaible anytime if you need.


Q4: How can I get a quotation?

A: 1. If for the regular components, just show us the item No. and quantity, we will quote you immediately.


2. If for the OEM componnets, show us the technical drawing or the sample, we will show you  our drawing and then quote you after got your confirmation to the drawing.


3. If for the whole mounting solution,  to make sure can provide the most appropriate quotation, some more information about the project will be needed:

1) Solar panel qty. and dimension (LxWxT) of the panel

2) Panel/ structure tilt angles

3) Max wind load and snow load

4) Panel layout plan or the roof/ground size (Lx W)

5) Others it may need according to different solution
