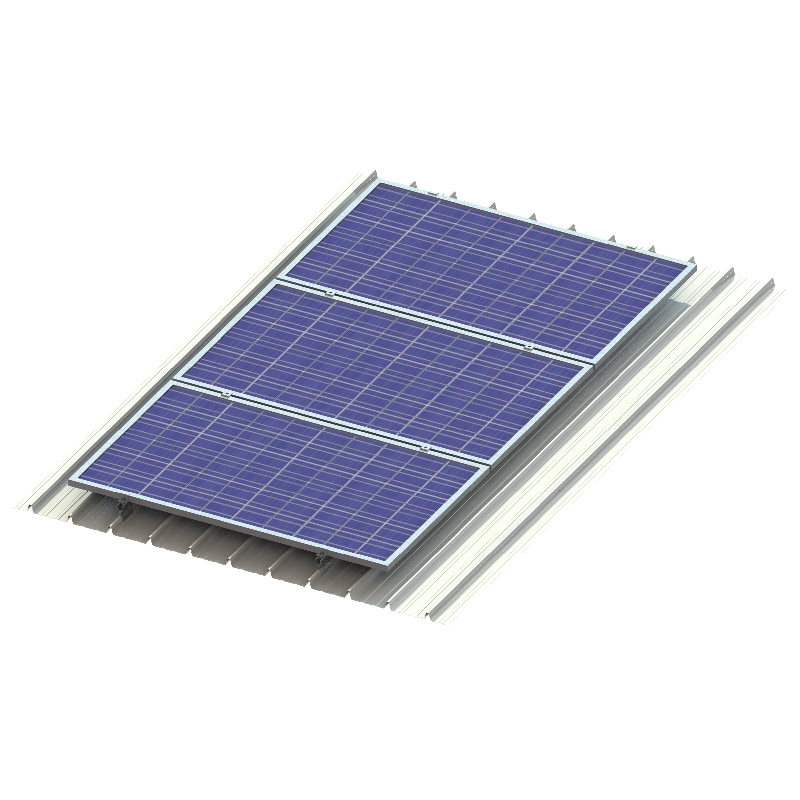

Stand Seam Clamps Solar Tin Roof Mounting System

Stand Seam Clamps Solar Tin Roof Mounting System

The system used for metal roof, using clamp hook to fix the solar panel.
Different types screw would be used basing on the beam material and structure.
  • Brand:

    UISOLAR
  • Item NO.:

    UI-TR
  • Payment:

    T/T, L/C
  • Price:

    $0.015/watt
  • Shipping Port:

    Xiamen, China
  • Lead Time:

    15 days
  • Product Details

Standing Hook Solar Tin Roof Mounting System

New solar panel metal roof mount rooftop

tin roof mounting roof clamps



Middle clamp for soalr panel installation


 Item No

 UI-TR

 Installation Site

 Flat/Slope Tin Roof (0-60 Degree)

 Material

Aluminum 6005 T5
Stainless Steel 304

 Max Wind Speed

 60 m/s

 Warranty

 10 Years

 Max Snow Load

 1.4 KN/M2

 Service Life

 25 Years

 Max Building Height

 65 ft (20m)




1.No Roof Piercing

The roof top solution used hook to fix solar panels without piercing your roof which can protect the roof and keep a good outlook.

2. No Rail

Using standing hook to fix the panel instead of rail makes the installation easier and cost less.

3. Various Types Hook

Different types of hook for you to choose according to you roof sheet and accept customize if you need.



Alu test report for Mid clamp and end clamp AL6005-T5 Report



solar roof ground carport structure mounting rack package



solar panel metal roof mount rooftop project picture


UISolar roof mounting systems with patented rail, highly pre-assembled components can be your better choice.
